5.5.3.3 Visual test
VIS Visual test

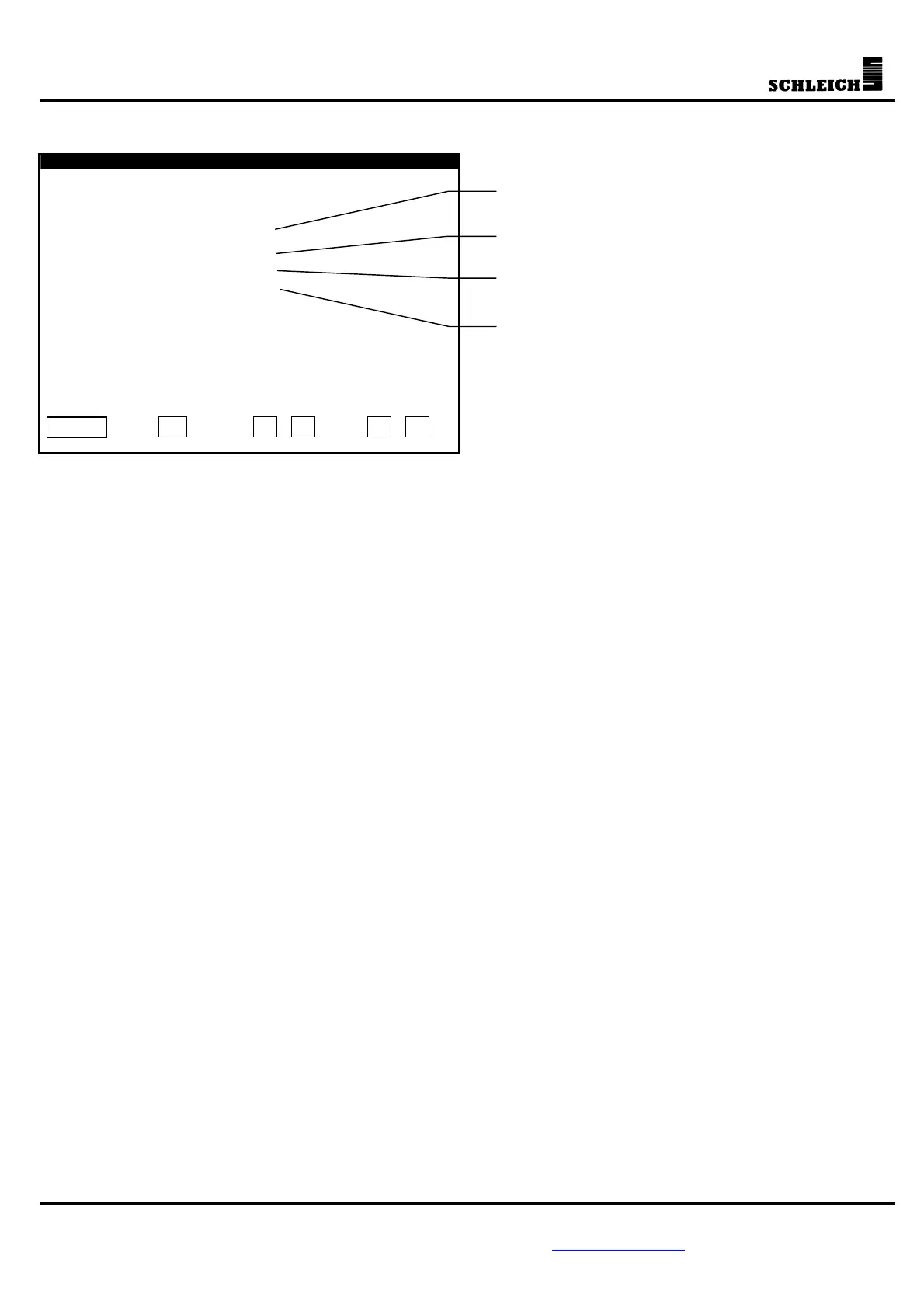

Definition
Waiting time..........: 0.0 s
Confirmation mode.....: Normal
VIS switch for go.....: off
VIS switch for no go..: off
Disable step off
Cancel if no go on
Enter ?
 
- +
Definition
Via the +/- buttons, you can enter a definition or a help text for this visual test. This text will appear in a
window during the visual test and needs to be acknowledged by the user with “go” or “no go”.
Waiting time
If you enter a waiting time, the visual test can be acknowledged only after this time span is over.
Confirmation mode
Normal: There is one input for “go” and one for “no go” acknowledgement. The inputs are
interrogated in the switch mode.
Condition contr.: It is possible to define an input for the “go” acknowledgement and(or) for the “no go”
acknowledgement. The condition is interrogated (no switch mode).
Waiting time
Confirmation switch for “go”
Confirmation mode
Confirmation switch for “no go”
