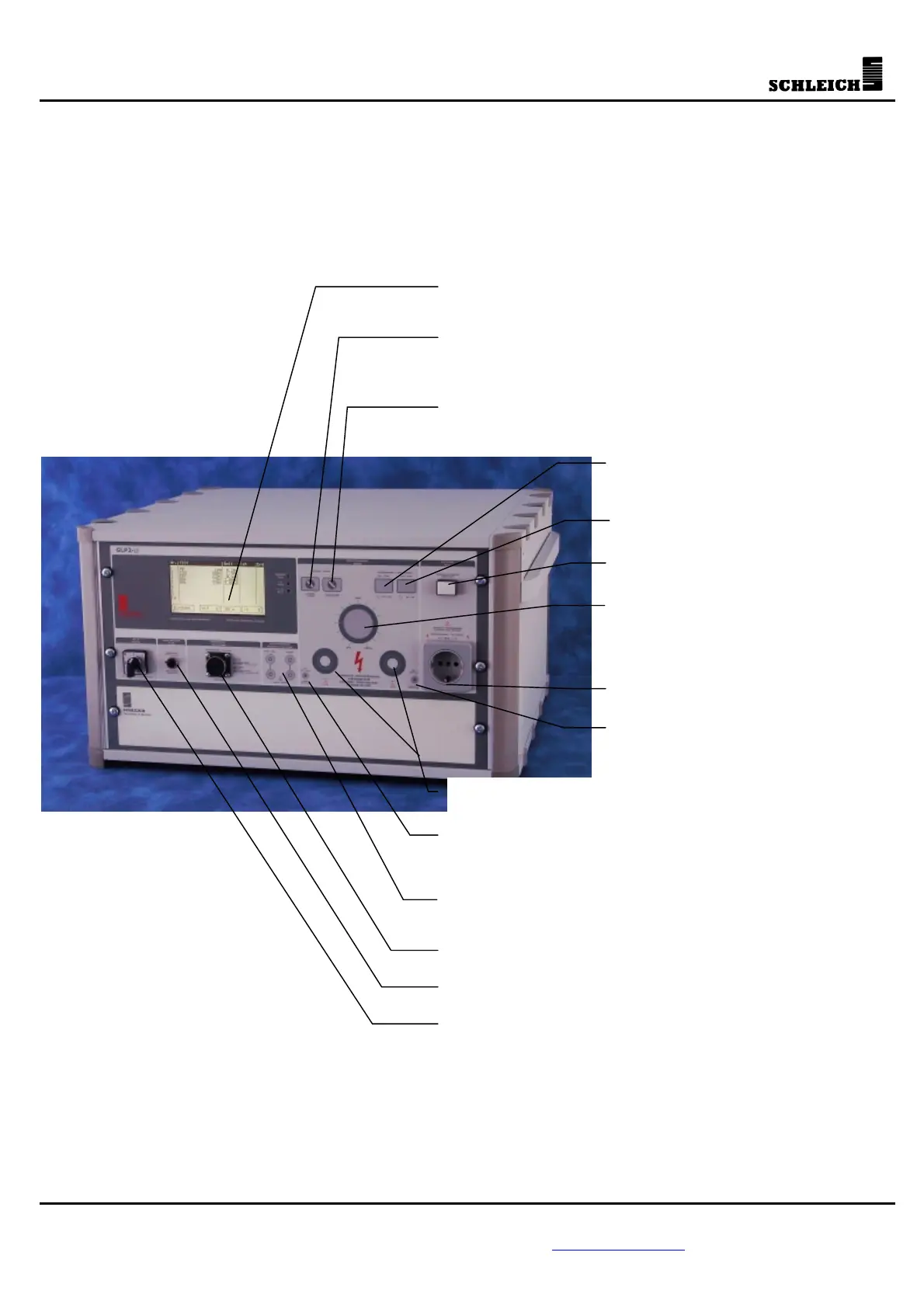

4.3 Operating elements / GLP2-i
The tester is operated via the buttons on the LCD, the buttons on the front panel, the foot switch or the
switch inside the PE test pistol. However, the user can also connect various operating elements via the
control plug at the rear panel of the testing device.
Key switch
for enabling high voltage (option)
Key switch for enabling the high voltage
for the test pistols (option)
Button high voltage START
Button high voltage STOP
Button START TEST
Regulating switch for high voltage
(option)
Graphics LCD with touch screen
HIPOT fuse
Connection for
HV test pistol (option)
Test socket
HIPOT Start Pistol / connection
for foot switch or switch in HV
test pistol (option)
Connection sockets for
residual voltage test
Connection for PE test probe
Fuse for functional test
POWER ON/OFF
