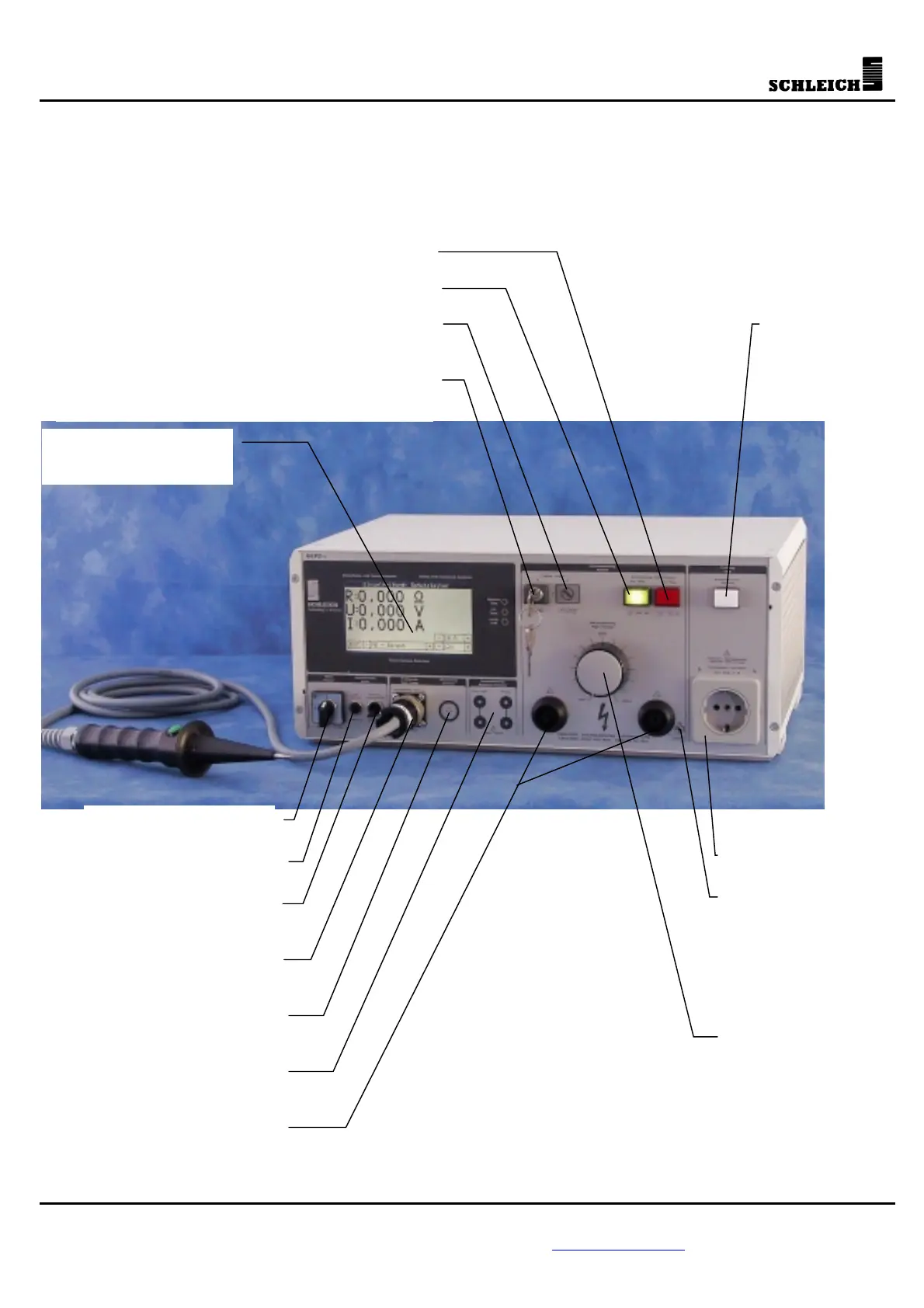

4.4 Operating elements GLP2-e
The tester is operated via the buttons on the LCD, the buttons on the front panel, the foot switch or the
switch inside the PE test pistol. However, the user can also connect various operating elements via the
control plug at the rear panel of the testing device.
Graphics LCD
with touch screen
Key switch for enabling
high voltage
(option)
Key switch for enabling the high voltage
for the test pistols (option)
Button high voltage START
Button high voltage STOP
Button
START
TEST
Regulating switch
for high voltage
(option)
Test socket
Fuse HV overcurrent
Con
nection for
HV test pistol (option)
HIPOT Start Pistol /
connection for foot
switch or switch in
HV test pistol
(option)
Connection sockets for
residual voltage test
Connection for
PE test probe
POWER ON/OFF
Fuse for
functional test
Connection for
control panel
