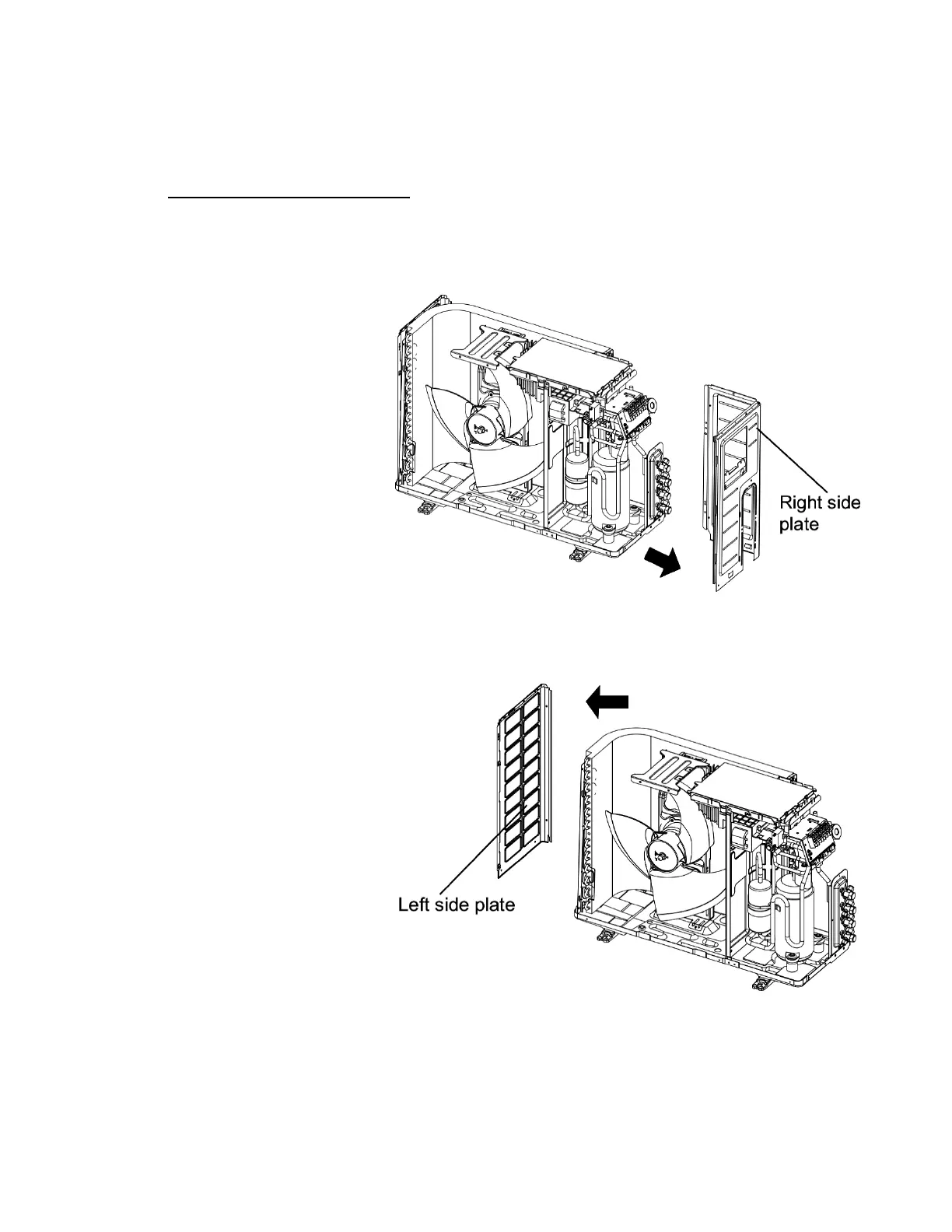

Step 3: Remove right side plate

Remove the screws connecting the

right side plate with the chassis, the

valve support, and the electric box.

Then remove the right side plate

assembly.

Remove the screws connecting the left

side plate and the chassis and then

remove the left side plate assembly.
