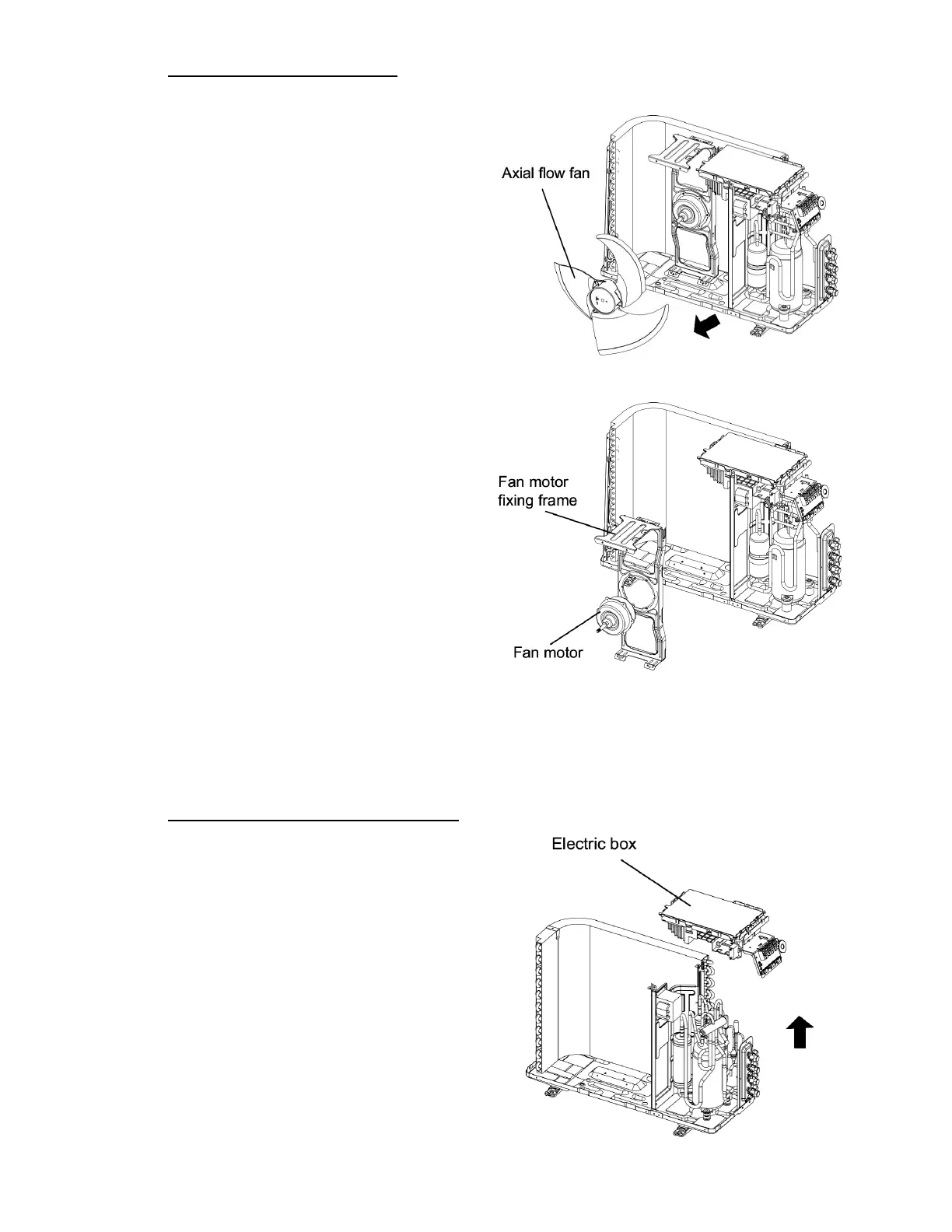

Step 4: Remove axial flow fan
Remove the nuts fixing the blade and then remove
the axial flow fan.
Remove the four (4) tapping screws fixing the
motor. Disconnect the leading wire insert of the
motor and then remove the motor. Remove the
two (2) tapping screws fixing the motor support
and then pull the motor support upwards to
remove it.
Step 5: Remove electric box assembly
Remove the screws fixing the electric box
subassembly; loosen the wire bundle, pull out the
wiring terminals and then pull the electric box
upwards to remove it.
