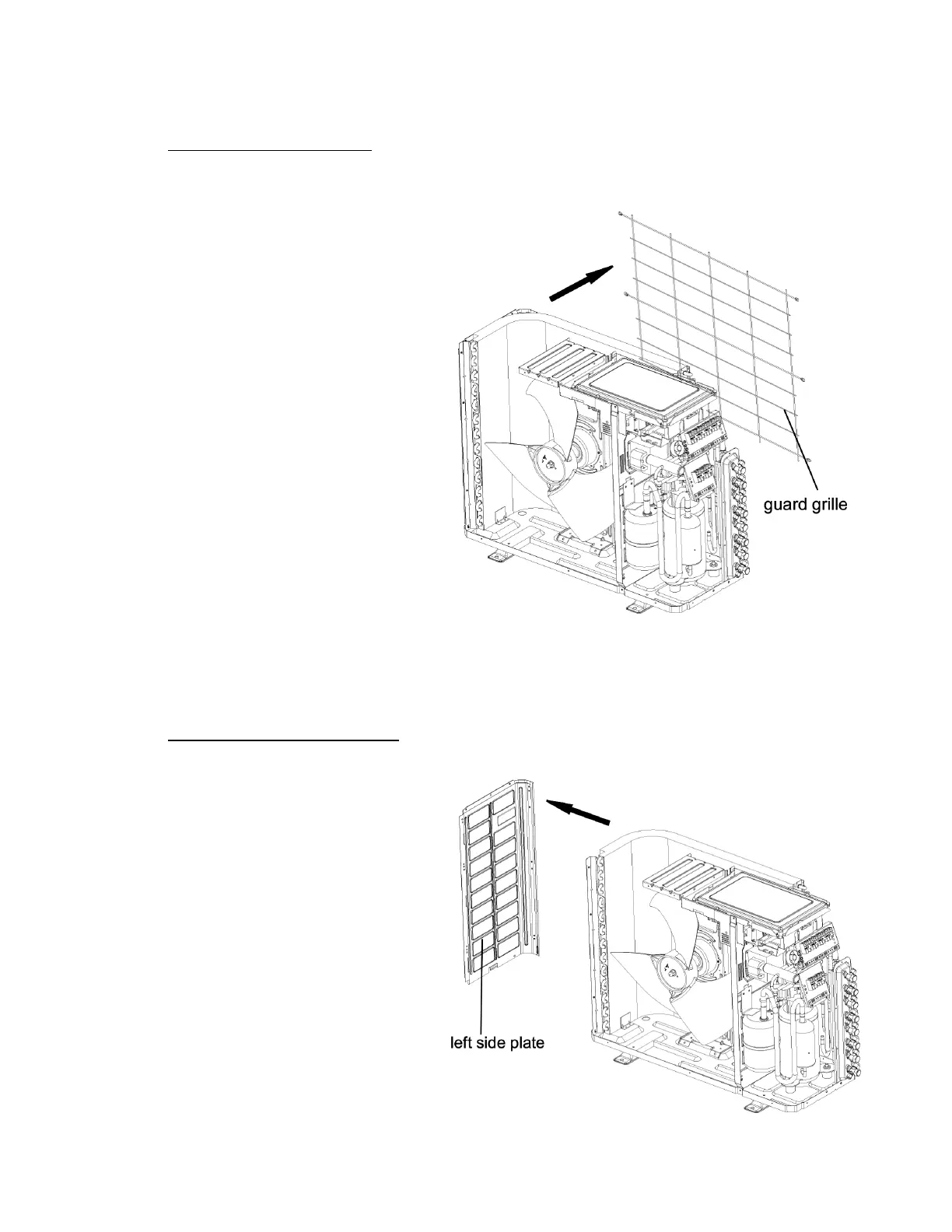

Step 6: Remove guard grill

Remove the screws fixing the guard grill and

the left side plate to remove the guard grill.

Step 7: Remove left side plate

Remove the screws fixing chassis and

condenser support to remove the left side

plate.
