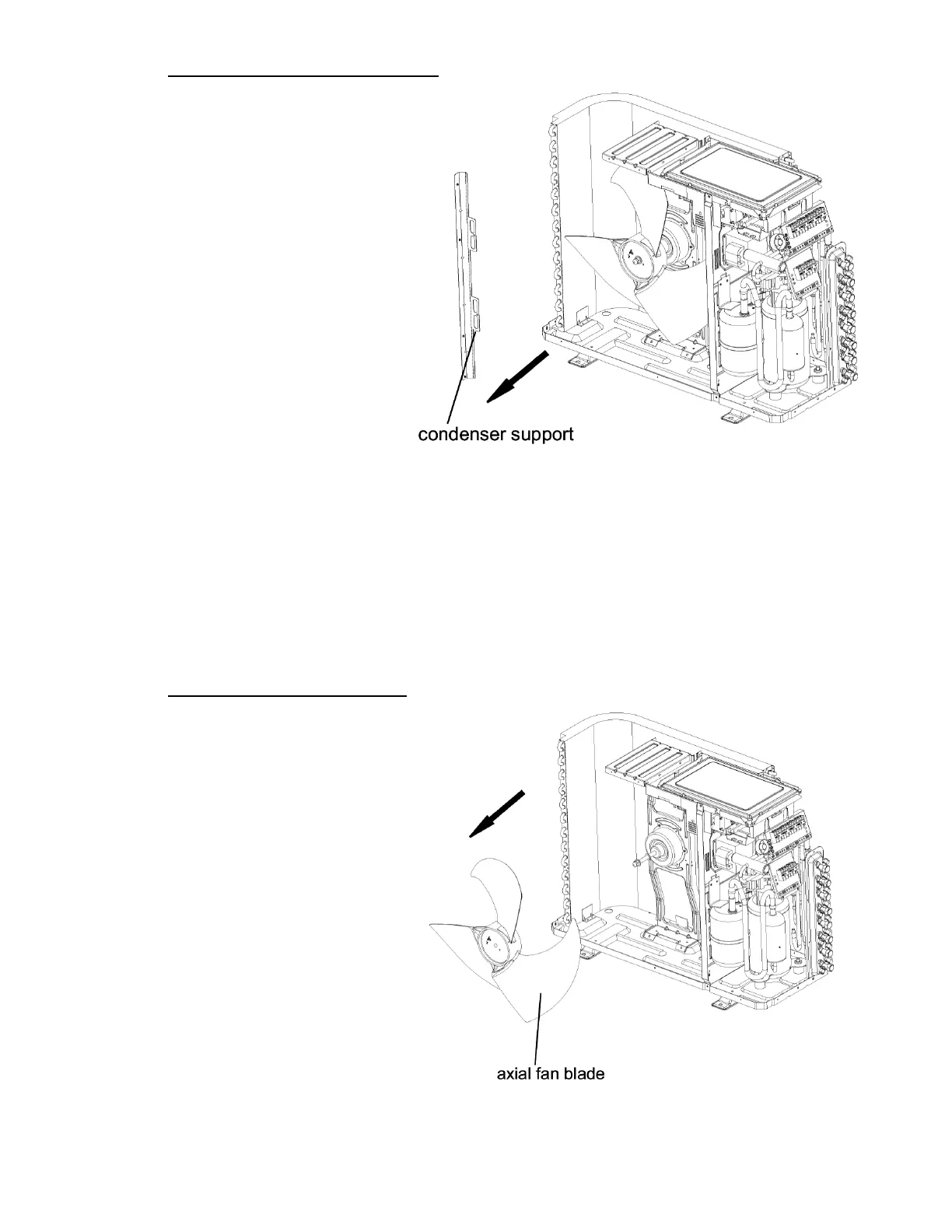

Step 8: Remove condenser support

Remove the screws fixing support and

chassis to remove the condenser support.

Step 9: Remove axial fan blade

Remove the screw nuts fixing fan blade

with spanner to remove the fan blade.
