81

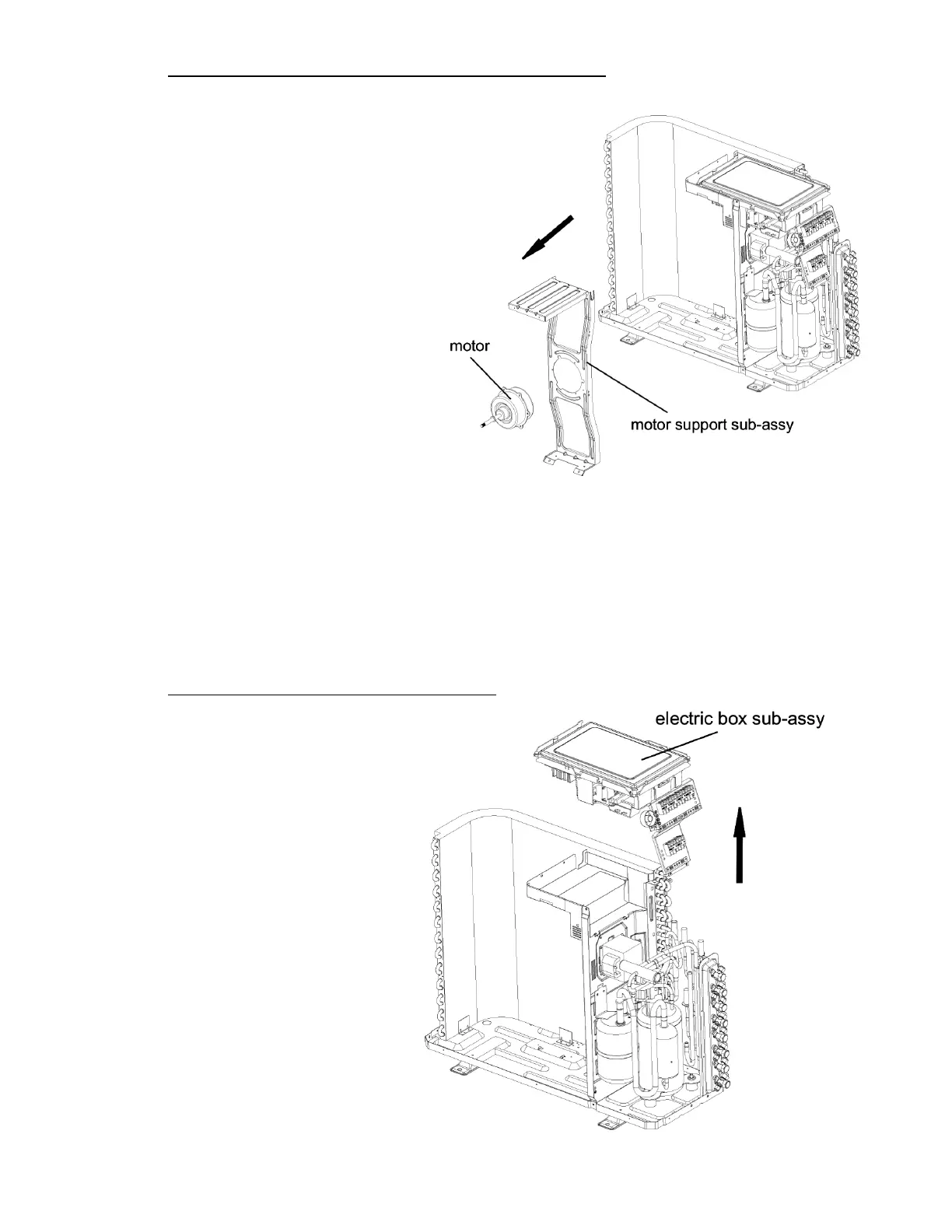

Step 10: Remove motor and motor support subassembly
Remove the tapping screws fixing motor. Pull
out the pin of the leading wire for the motor
and remove the screws fixing the motor
support and chassis to remove the motor and
motor support subassembly.
Step 11: Remove electric box subassembly
Remove the tapping screws fixing the
isolation sheet, loosen the wire binds,
and then pull out the terminal. Lift to
remove the electric box subassembly.
