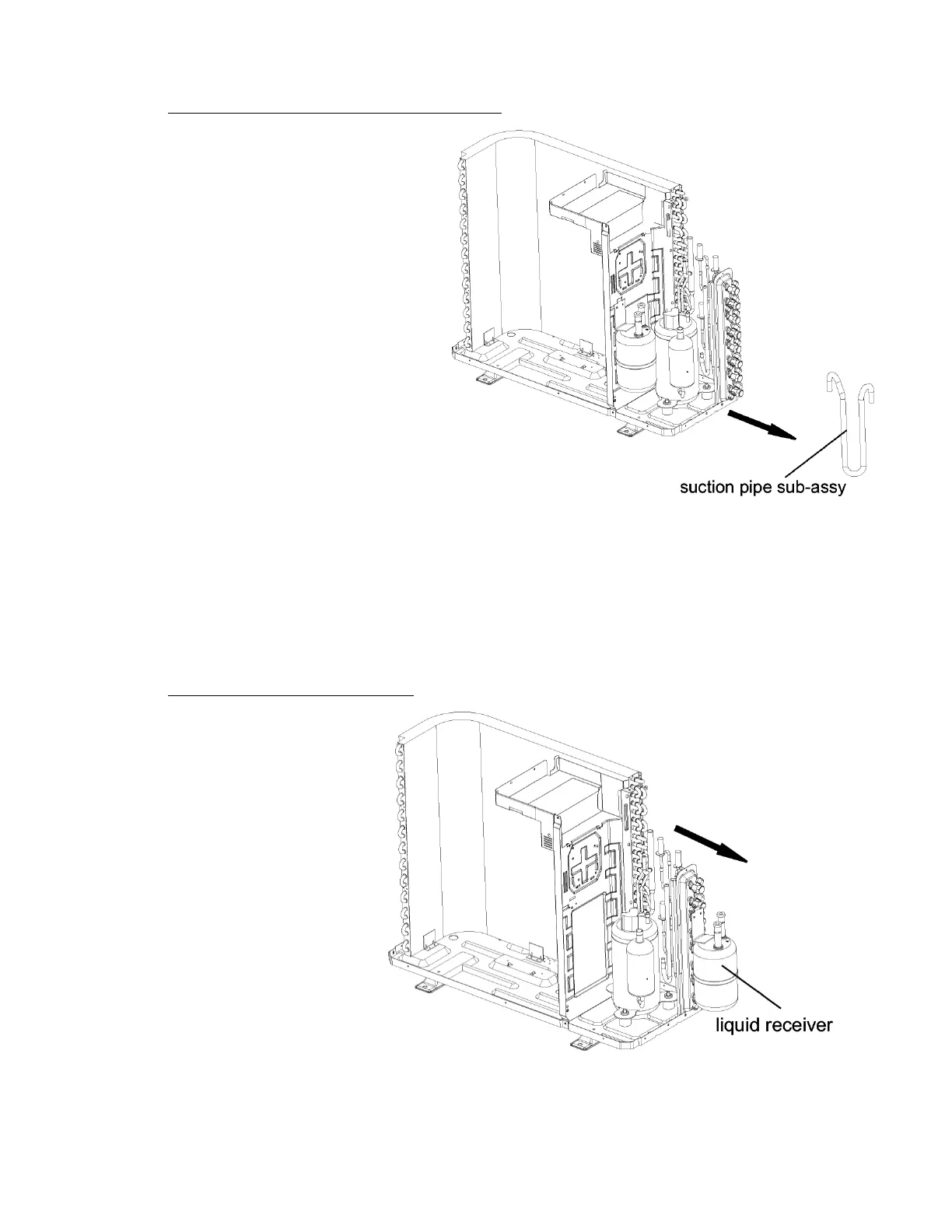

Step 14: Remove suction pipe subassembly
Unsolder the brazed joint joining the suction pipe
subassembly, compressor, and liquid receiver to
remove the suction pipe subassembly.
Step 15: Remove liquid receiver
Remove the screws fixing isolation
sheet and liquid receiver and lift
to remove the liquid receiver.
