Sega Project DIVA Arcade Future Tone - Page 74

TOUCH SLIDER
65
11
3

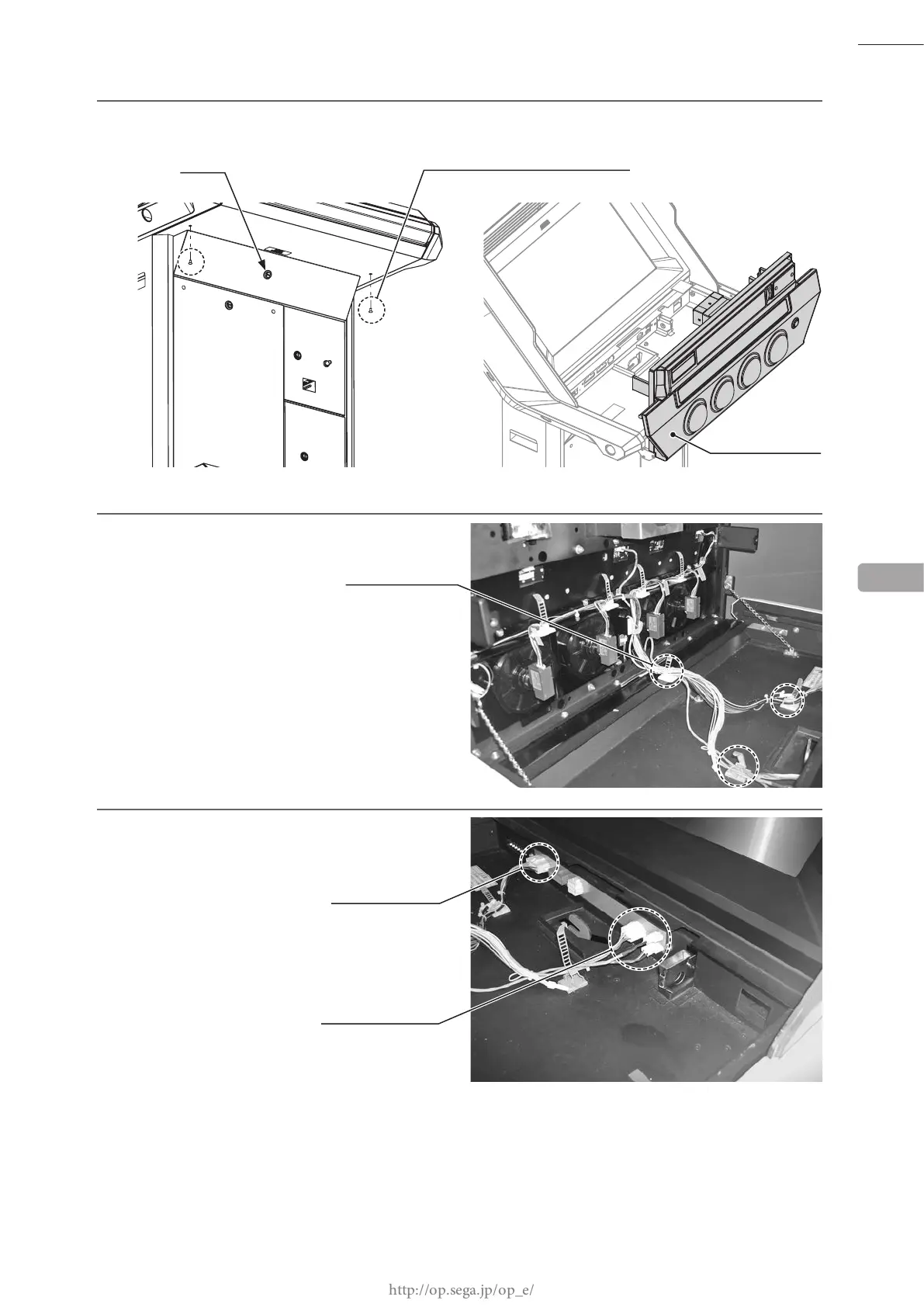

Remove 2 tamperproof screws. Unlock the control panel with the master key and then open it.
4
Undo 3 cord clamps.
Unlock
TAMPERPROOF SCREW (2), black
M5 x 10
CONTROL PANEL
CORD CLAMP (3)
CONNECTOR (1)
YL16P
CONNECTOR (3)
YL8P, SM5P, SM3P
5
Disconnect the 4 connectors.
