LCD
89
PROTECTIVE MATERIAL
6

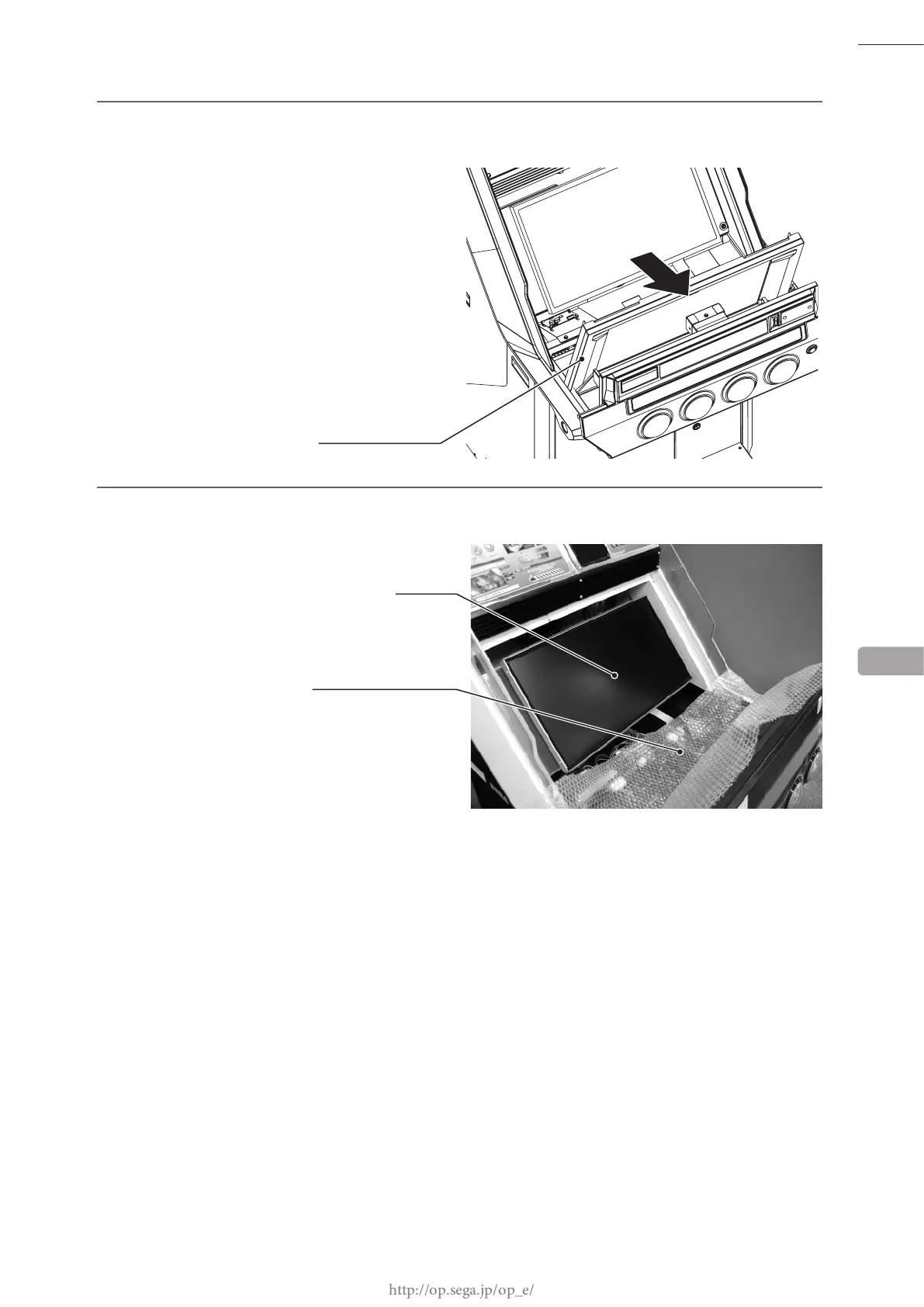

Take off the touch panel unit. The touch panel cable is connected to the touch panel unit, so be careful it
does not catch on something.
7
Lay out the protective material over the control panel opening. The protective material is used for
removing the LCD unit and temporarily laying it down.
LCD UNIT
13
TOUCH PANEL UNIT
