38

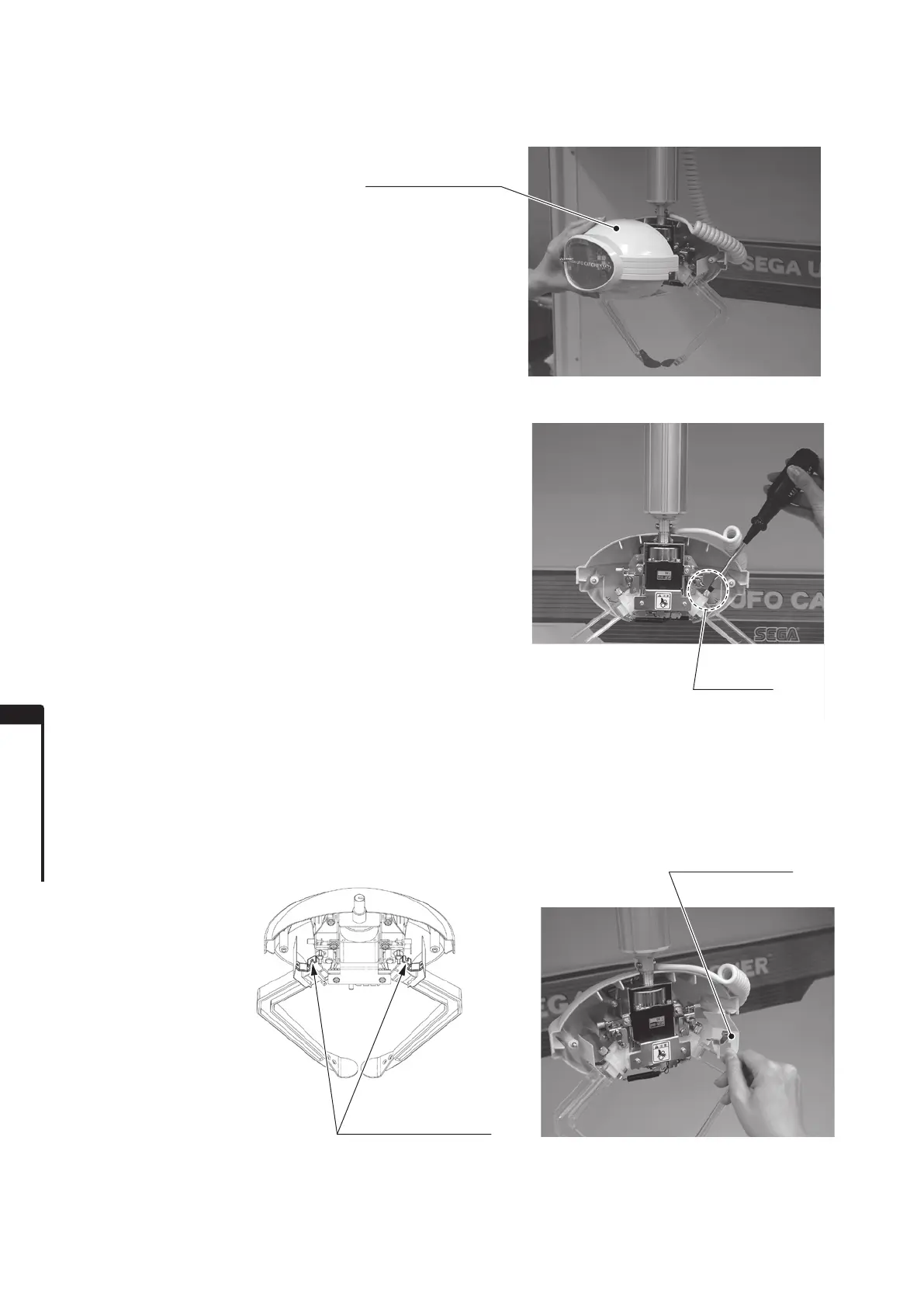

ARM MECHANISM
13
PHOTO 13-1e
13-1c
13-1d
FIG. 13-1
7. There are U-shaped notches on the mechanism mask. Slide the mechanism mask toward you and then remove it.
NOTE: For arm replacement on the opposite (left) side, slide the mask mechanism away from you and then
remove it. (Notch orientations are different)
5. Remove the UFO front cover
6. Use a slotted screwdriver to loosen the bolts that
holds the arm in place.
UFO FRONT COVER
ARM BOLT
M3 x 6
U-SHAPED NOTCHES
MECHANISM MASK
