OPTIONAL ITEMS
21

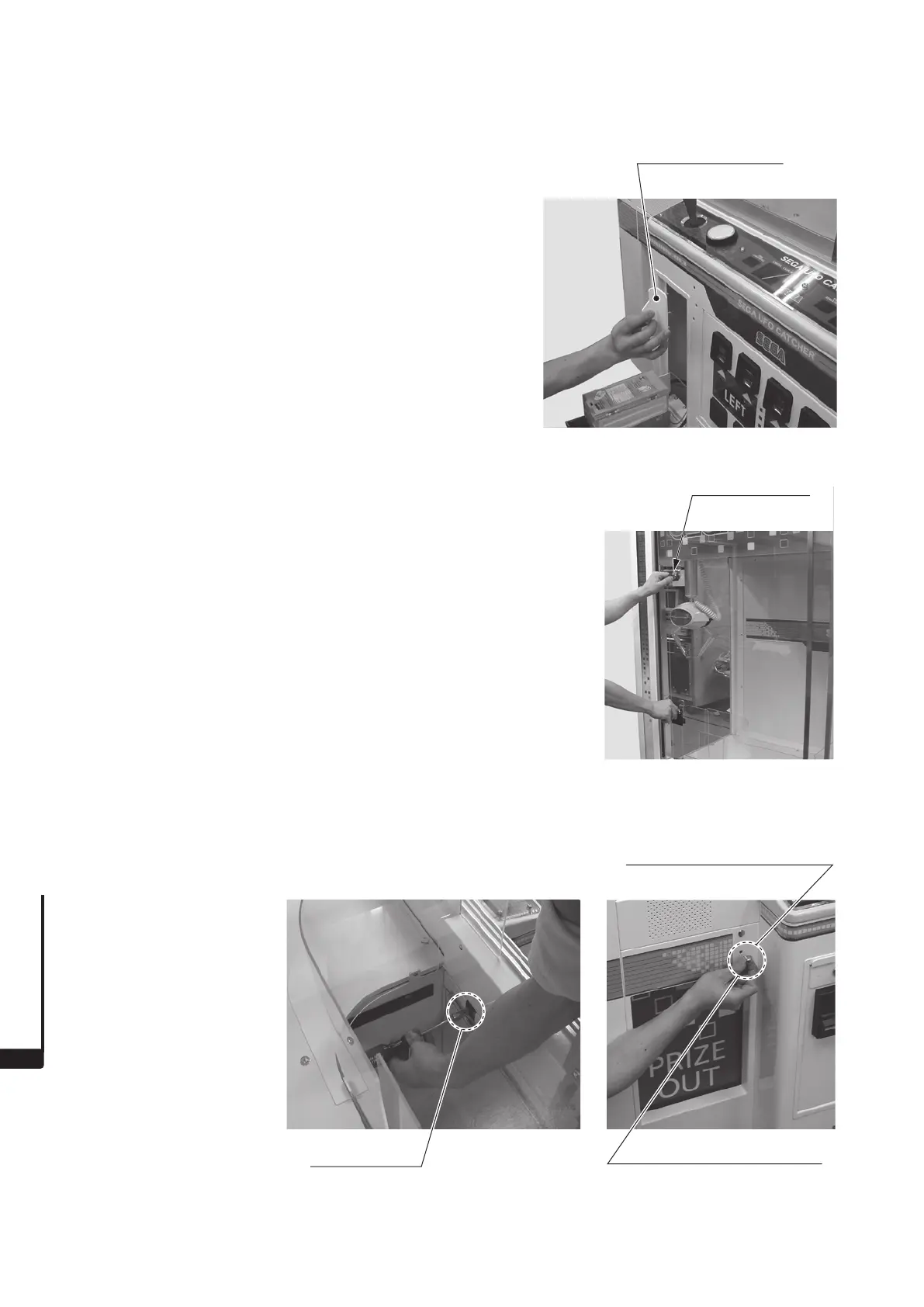

PHOTO 21-2l
4. Set the bill security hook on the cabinet and secure it
in place with the 3 flange nuts that were removed.
PHOTO 21-2m
5. Unlock the glass door with the operator’s key and
open it.
21-2o
6. Remove the 2 flange nuts inside the cabinet, then remove the 2 carriage bolts from the cabinet front side.
PHOTO 21-2n
BILL SECURITY HOOK
OPERATOR'S KEY
FLANGE NUT (2)
M6
CARRIGAGE BOLT (2), chrome
M6 x 20
FLANGE NUT (2) (Opposite side)
M6
