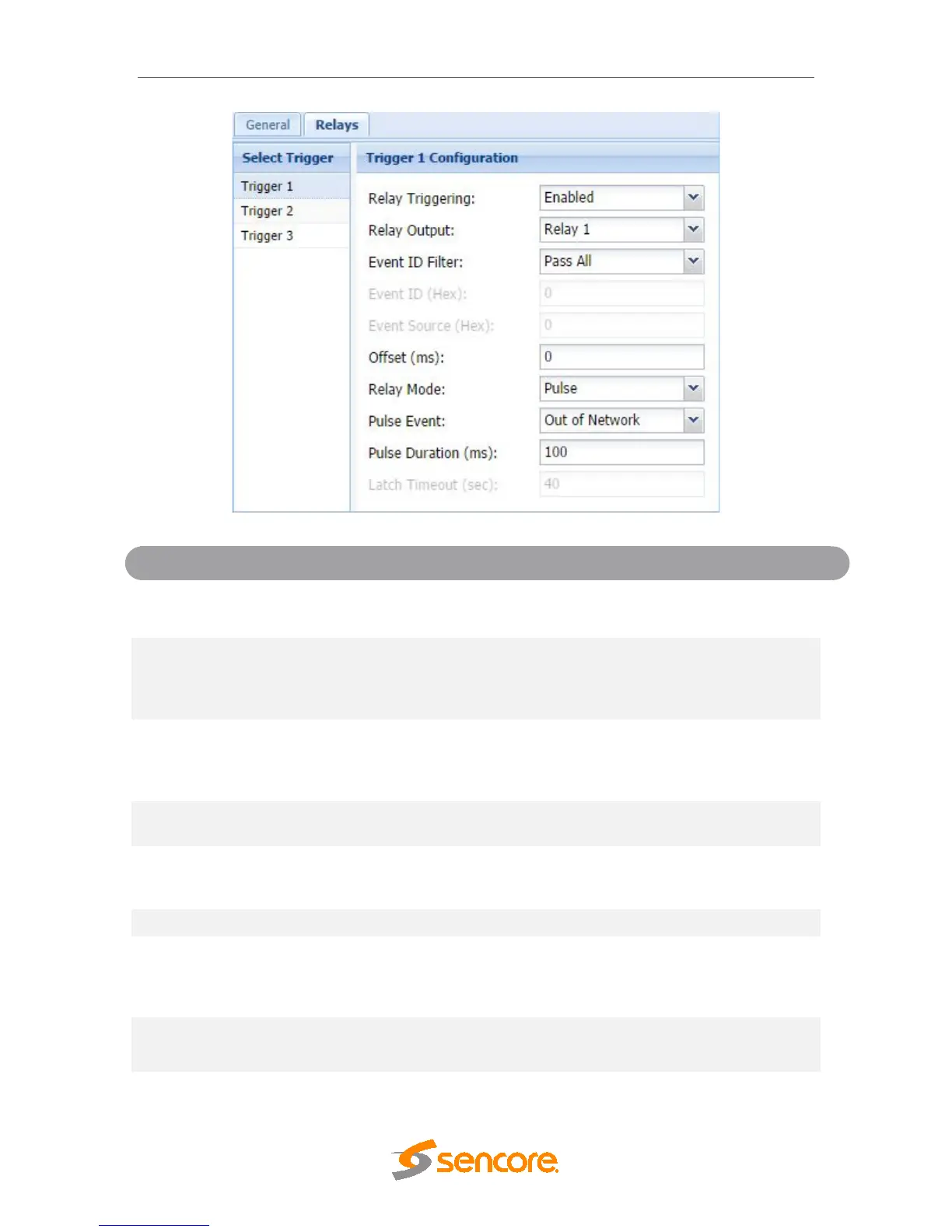

Setting
Range
Description
Relay Triggering
Enabled
Disabled
Enable or Disable selected Trigger
Relay Output
Relay 1
Relay 2
Relay 3
Select which Relay the configured trigger will
use. See appendix D for relay pinout.
Event ID Filter
Pass All
Pass Event ID
Pass Event Source
Selects whether all Events will trigger the
relay, or only those with a certain Event ID or
Source
Event ID (Hex)
0-FFFFFFFF
Used in “Pass Event ID” mode to filter which
SCTE 35 messages that will trigger the relay
Event Source (Hex)
0-FFFFFFFF
Used in “Pass Event Source” mode to filter
which SCTE 35 messages that will trigger the
relay
Offset (ms)
-4000ms to 4000ms
Specify an offset for the Trigger
Relay Mode
Pulse
Latch
Specify a mode for the relay. In pulse mode
the relay will fire once on either OON or RTN.
In latch mode the relay will remain energized
for the entire break duration
Pulse Event
Out of Network
Return to Network
Select which SCTE 35 splice_insert message
triggers the relay
Pulse Duration (ms)
10-1000
Select a duration for the pulse
