OmniHub 6/6D– User Manual
Page 97 of 182

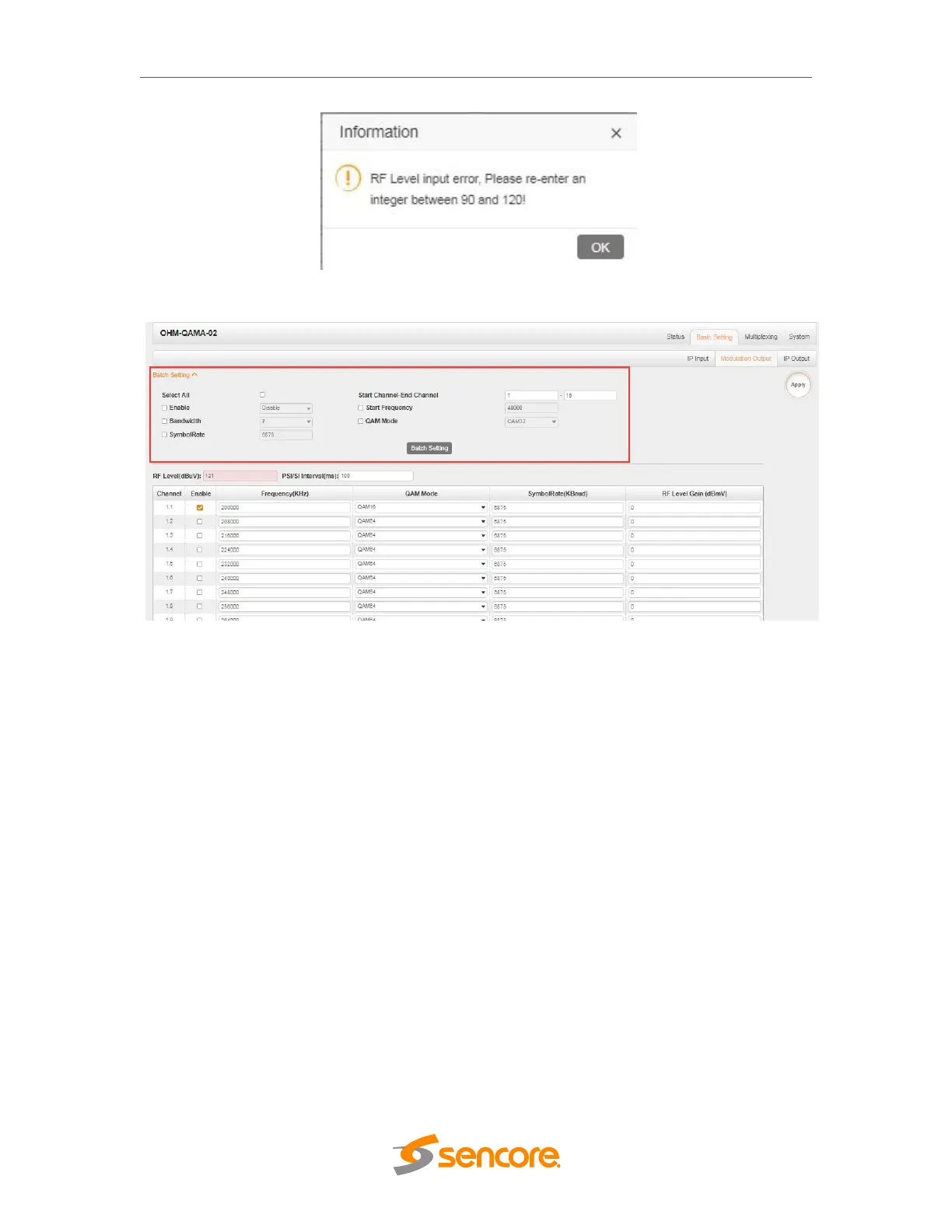

Batch Setting is where you can input the modulation parameters in batch. See the
image below for reference.
IP Output-Parameter Setting> On this page, there are three tabs where you can
modify the multicast IP, port and parameter of IP Output. There are Port 1 and Batch
Setting. The output can accept Multicast or Unicast and support MPTS and SPTS.
Port 1 shows the 16 channels. Check the box under Enable to enable a channel. Input
the correct Multicast/Unicast IP address, IP port and appropriate output bitrate, and
select the correct Protocol for the output IP. Once done, click Apply for the changes to
take effect. See the image below for reference.
