SL MCR DW

104

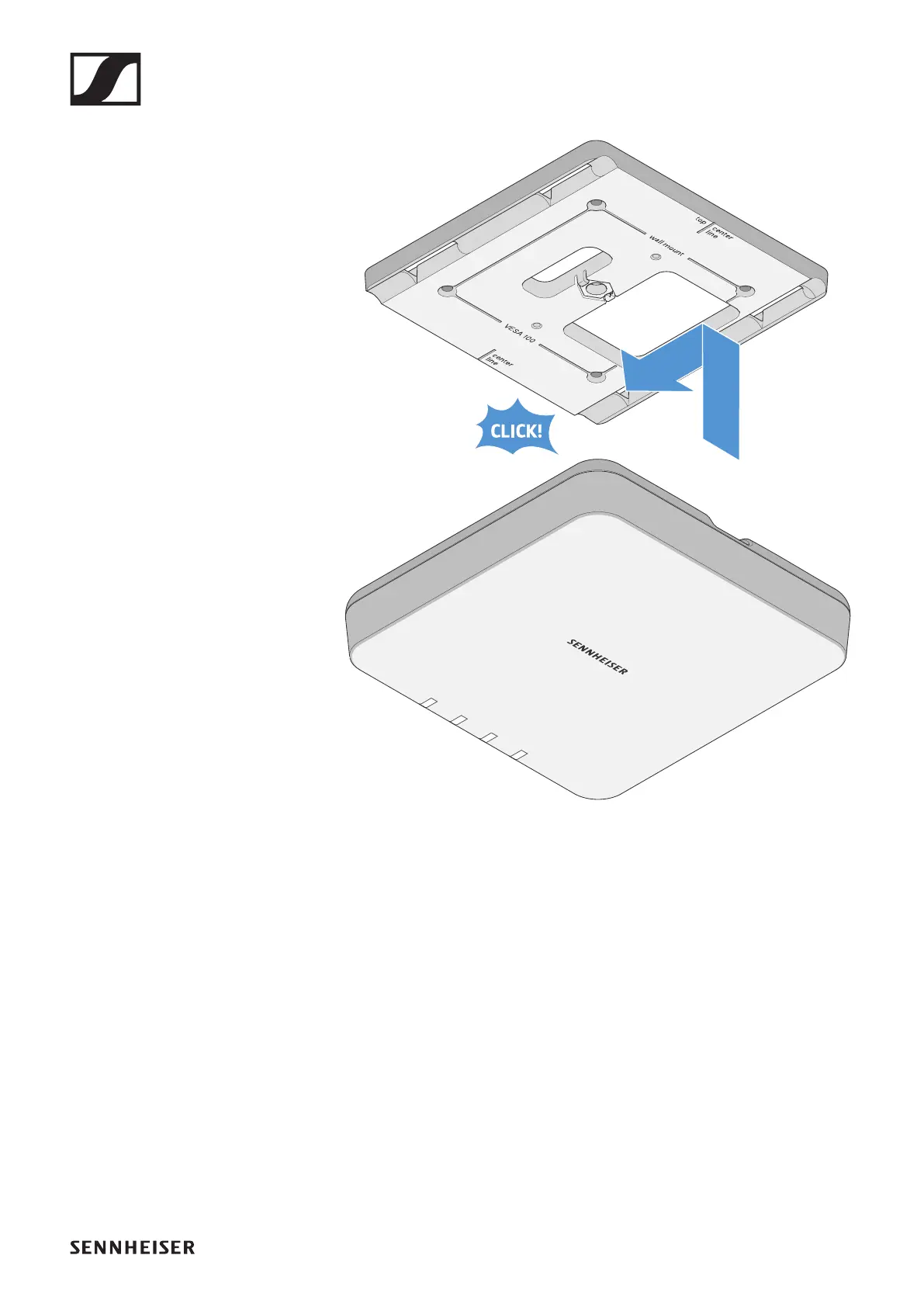

▷ Insert the receiver into the mounting frame as shown until

you hear it click into place.
