Sharp MX-2300G Service Manual

MX3500N ADJUSTMENTS 6 – 20
(Example)
NOTE: If either of front or rear adjustment value is changed, the
other adjustment print pattern position may be varied. Be
careful of that.

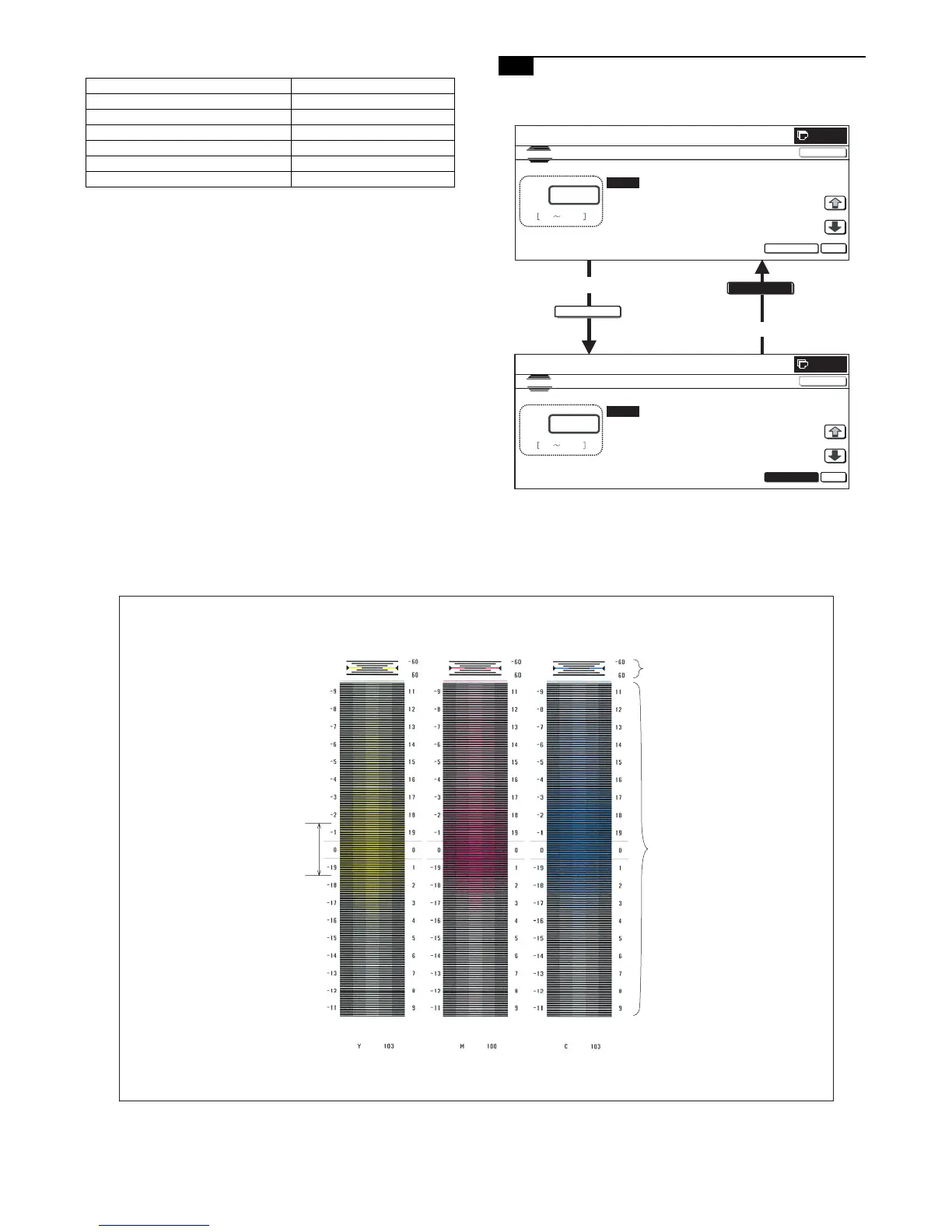

10-C Image registration adjustment (Sub
scanning direction) (Manual adjustment)
1) Enter SIM50-21 mode.
2) Select the paper feed tray with A4 (11 x 8.5) or A3 (11 x 17)
paper in it by changing the value of set item H.
3) Press [EXECUTE] key.
The sub scanning direction image registration adjustment pat-
tern is printed.
A: Rough adjustment pattern
B: Fine adjustment pattern
C: Adjustment range
Previous value before adjustment New adjustment value
A: 100 A: 93 (= 100 – 7)
B: 112 B: 100 (= 112 – 12)
C: 95 C: 96 (= 95 + 1)
D: 98 D: 109 (= 98 + 11)
E: 102 E: 109 (= 102 + 7)
F: 96 F: 118 (= 96 + 22)
EXECUTE
EXECUTE
0
A:
Aȇxxx
Bȇxxx
Ȉ CYAN
Ȉ MAGENTA
SIMULA TIONġ NO.50-21
REGISTRATION ADJUSTMENT : SCANNING DIRECTION
xxx
1 199
OK
TEST
EXECUTE
CLOSE
Cȇxxx Ȉ YELLOW
Dȇxxx Ȉ MULTIOUNT
0
A:ġ
Aȇxx
Bȇxx
Ȉ CYAN
Ȉ MAGENTA
SIMULA TIONġ NO.50-21
REGISTRATIONġ ADJUSTMENT : SCANNING DIRECTION
xxx
1 199
OK
TEST
EXECUTE
CLOSE
Cȇxxx Ȉ YELLOW
Dȇxxx Ȉ MULTIOUNT
10-key
or end of print
B
C
A
