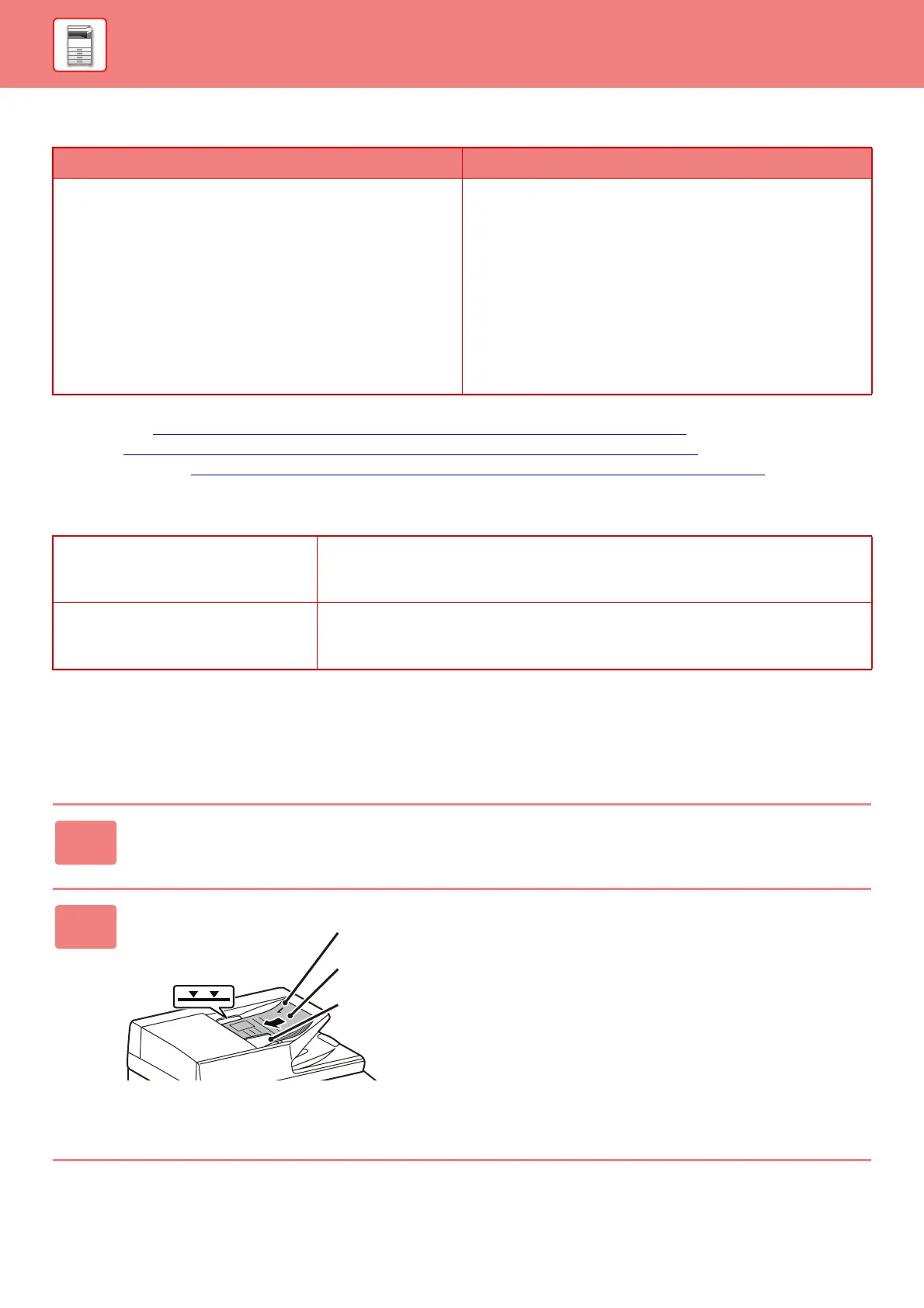

BEFORE USING THE MACHINEâ–ºHOW TO PLACE THE ORIGINAL
Allowed original sizes
When the original is a non-standard size, see the appropriate explanation below for the mode you are using.
â–º COPIER: "SELECTING THE ORIENTATION AND SIZE OF THE ORIGINAL (page 2-29)"
â–º FAX: "SPECIFYING THE ORIGINAL SCAN SIZE USING NUMERIC VALUES (page 4-44)"
â–º IMAGE SEND: "SPECIFYING THE ORIGINAL SCAN SIZE USING NUMERIC VALUES (page 5-50)"
Allowed original weights
When using the MX-B455W
To scan originals from 9 to 13- lbs Bond (35 to 49g/m
2
), use "Slow Scan Mode" in the "Others" function. Scanning
without using "Slow Scan Mode" may result in original misfeeds.
When "Slow Scan Mode" is selected, automatic 2-sided scanning is not possible.
*The MX-B355W cannot scan thin paper.
Minimum original size Maximum original size
Standard size
5-1/2" (longitudinal) × 8-1/2" (transversal)
105 mm (longitudinal) × 148 mm, or A6
Non-standard size
(Minimum size that can be specified manually)
4-1/4" (longitudinal) × 5-1/2" (transversal)
105 mm (longitudinal) × 140 mm (transversal)
Business card
2" (longitudinal) x 3-1/2" (transversal)
51 mm (longitudinal) x 89 mm (transversal)
Standard size
8-1/2" (longitudinal) × 14" (transversal)
210 mm (longitudinal) × 297 mm (transversal) or A4
Non-standard size
(Maximum size that can be specified manually)
Copy mode:
8-1/2" (longitudinal) × 14" (transversal)
216 mm (longitudinal) × 356 mm (transversal)
image send mode:
8-1/2" (longitudinal) × 19-5/8" (transversal)
216 mm (longitudinal) × 500 mm (transversal)
MX-B355W
1-sided scanning: 13 to 28 lbs Bond (50 to 105 g/m
2
)
2-sided scanning: 13 to 28 lbs Bond (50 to 105 g/m
2
)
Business card: 0.1 to 0.2 mm
MX-B455W
1-sided scanning: 9 to 32 lbs Bond (35 to 128 g/m
2
)
2-sided scanning: 13 to 32 lbs Bond (50 to 128 g/m
2
)
Business card: 0.1 to 0.2 mm
1
Make sure that there is no original on the document glass.
2
Place the original.
MX-B355W: Up to 50 sheets can be inserted.
Business card:
Up to 25 sheets can be inserted.
MX-B455W: Up to 100 sheets can be inserted.
Business card:
Up to 25 sheets can be inserted.
After scanning is finished on the automatic document feeder,
remove originals from the original exit tray.
Align the edges evenly
and face them up
Insert to the end
Fit to the Original Size
Below the indicator line
To Next Page
