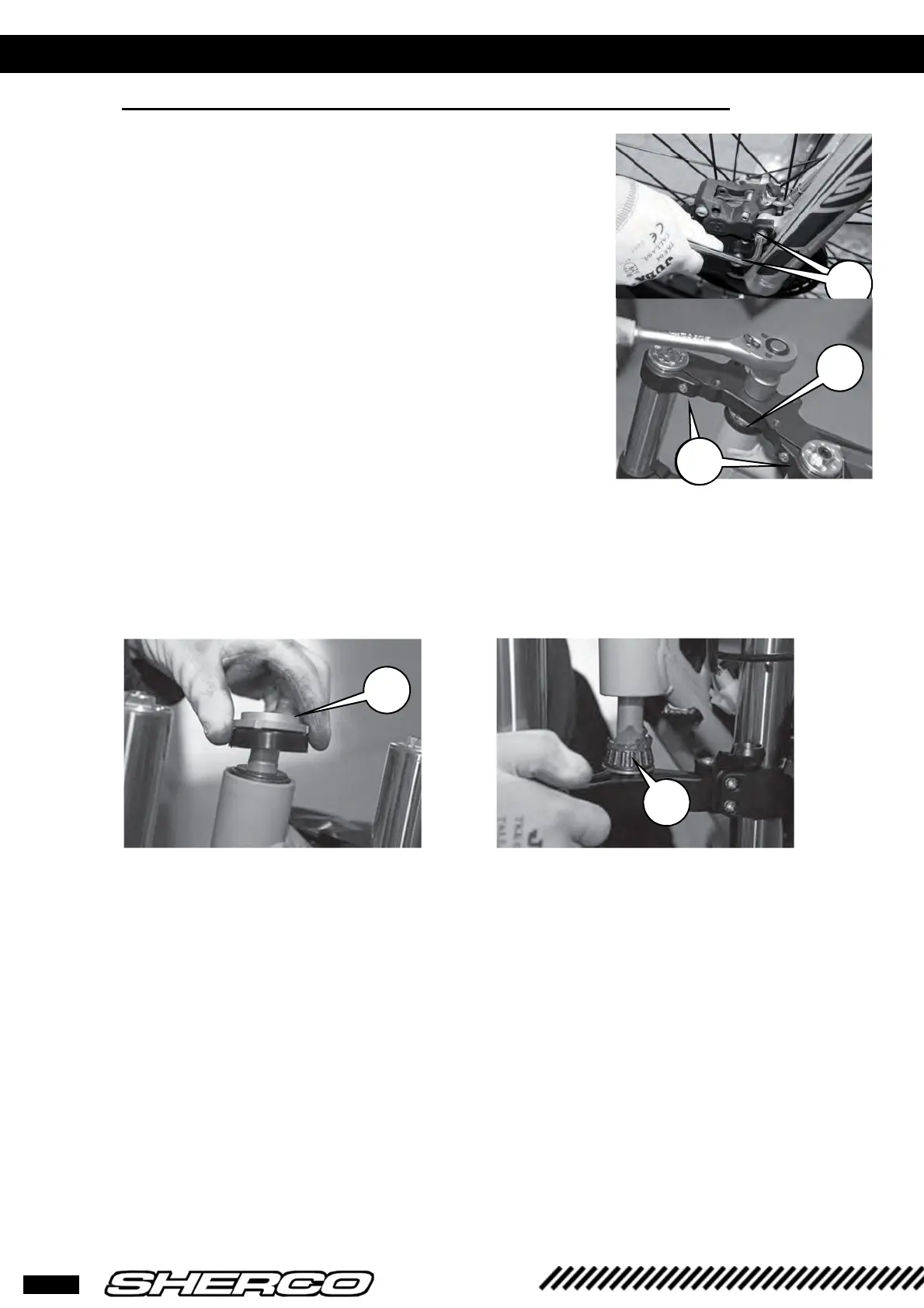

1.3 Fork disassembly and steering head bearings change
•
Undo the two M8 screws
1
and remove
the caliper
•
Check brake pads minimum thickness.
Wear limit : 1mm
•
Undo four M8 screws of the handlebar
clamps and remove handlebar.
•
Undo the steering column nut
2
,
then
the triple tree clamp M8 screws
3
and
remove it
•
Undo the steering stem counternut,
4
and its dust cover, then remove the fork from the frame.
•
Replace both top and bottom bearings : the ones in the steering head and the steering stem
5
by new
ones (part number C009 ) , applying grease on it.
•
During reassembly, tighten steering stem counternut so the front end can swing freely , without play and
without hard point. Then place upper fork clamp and tighten its nut.
Tightening torques :
Steering stem counternut : 20 Nm.
Triple clamp screws : 15 Nm
Caliper screw: 24 Nm
