ST SERIES
EGINE PARTS CHECK

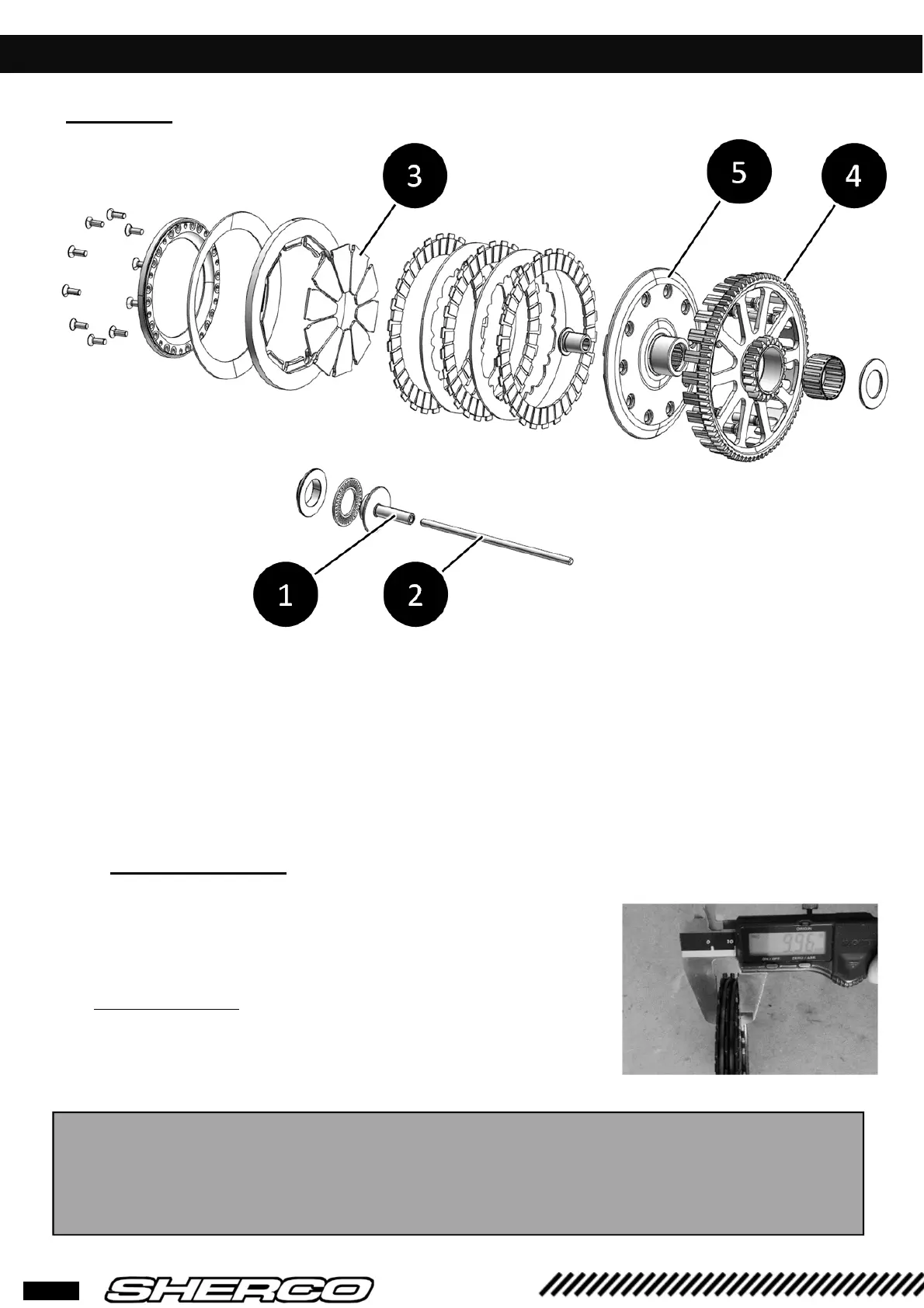

❱❘ Clutch
•
Clutch pusher
1
Check wear.
•
Pushrod
2
check wear, minimum length : 128.8 mm.
•
Pads
3
check condition, looking for abnormal marks.
•
Basket
4
check for grooves, on the fingers.
•
Hub
5
check for marks on the discs seating surface.
❱❘ Discs check
• On diaphragm clutch, discs thickness control is
done with the whole batch (friction plates and
smooth plates)
Minimum thickness : 9,92 mm
CAUTION
During discs disassembly, hold them together with a tie so as to keep their position and assembly
order. Worn discs that are not reassembled in the same way can cause vibrations in the clutch.
