42
ST SERIES
ENGINE ASSEMBLING

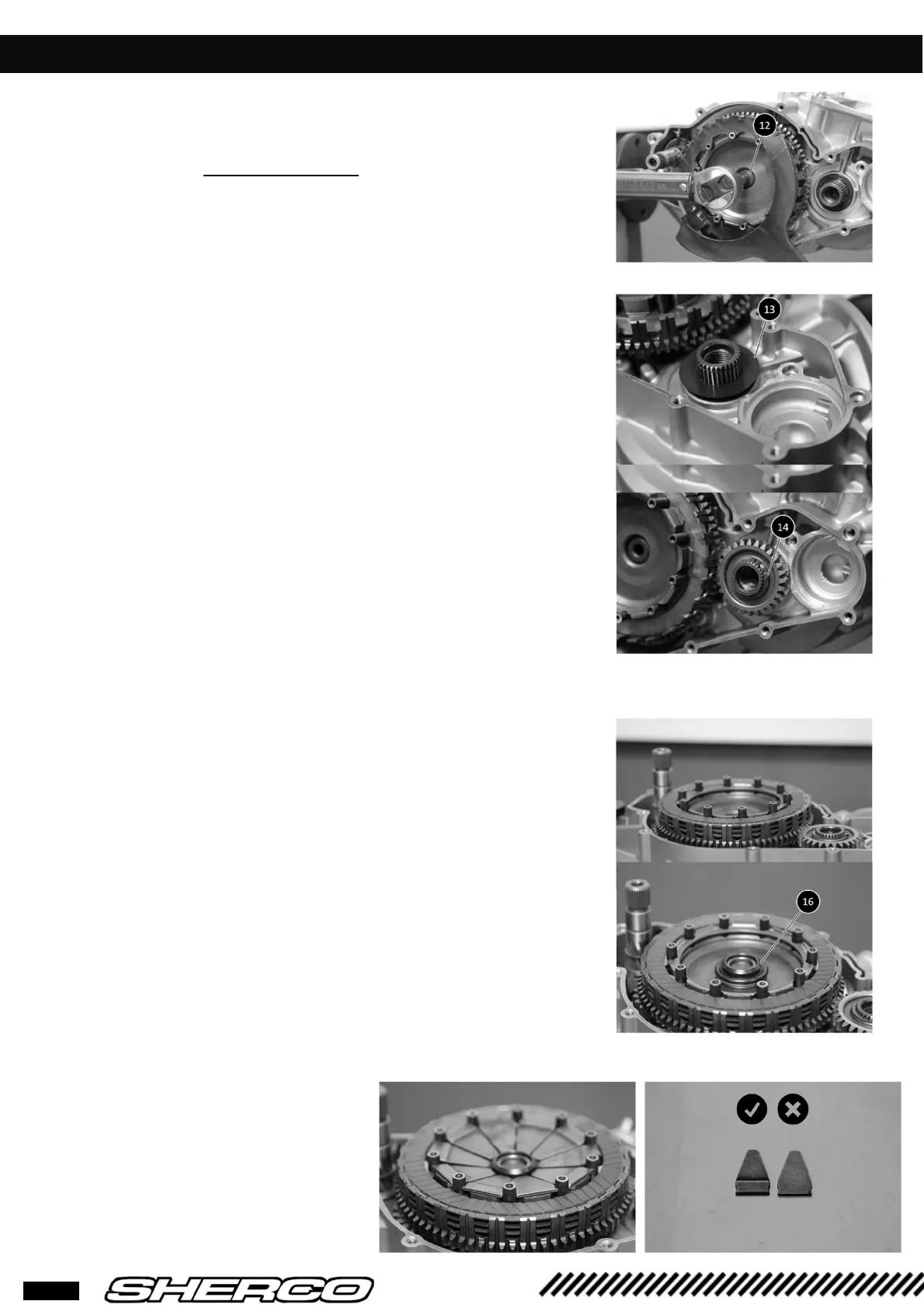

• Fit the clutch basket and the clutch hub.
Using the tool Part number 10982, hold the
basket, fit the screw
e
and tighten it to a 60Nm
torque.
Fit the first snap ring on the crankshaft, then the
spring washer
r
its little diameter towards the
snap ring, and its big diameter facing the primary
drive gear. ( the cone points the inside of the
engine)
• Fit the primary drive gear and its snap
ring
t
. To make it easier to fit the
snap ring, compress the spring washer
by pushing the primary drive gear.
• Taking care of their position, fit the clutch discs.
• Fit the clutch pushrod and the clutch pusher
u.
• Fit the clutch spring pads so that their
chamfered side is facing upward.
