• ENGINE ASSEMBLING

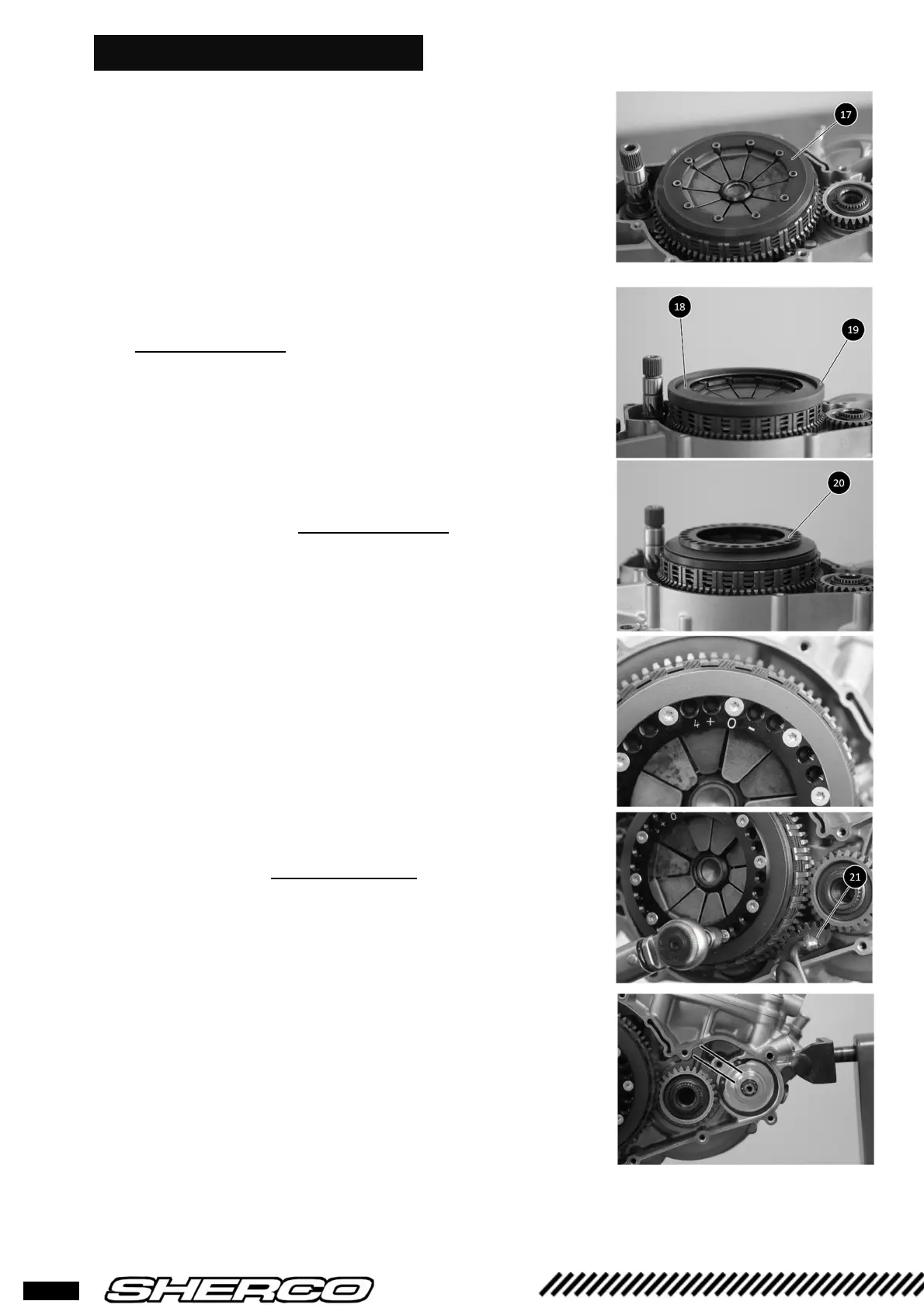

• Fit the pressure plate i .
• Fit the diaphragm spring o and its centering tool
p Part number 10987.
• Fit the pressure plate a and slightly tighten the
screws.
• Remove the centering tool Part number 10987.
• The pressure plat features 3 hardness settings :
- Screw in the middle hole = standard setting.
- Screw in the left hole « + » = harder setting
- ( more preload)
- Screw in the right hole « - » : = softer setting
( less preload)
• Tighten all the screws at a 6 Nm torque, using
the locking tool s Part number 10986.
• Fit the water pump, then its snap ring. Make
sure the ring end gap is lined up towards the
pump gear’s shaft hole.
