ST SERIES
ENGINE ASSEMBLING
❱❘ Gearbox assembling.
•

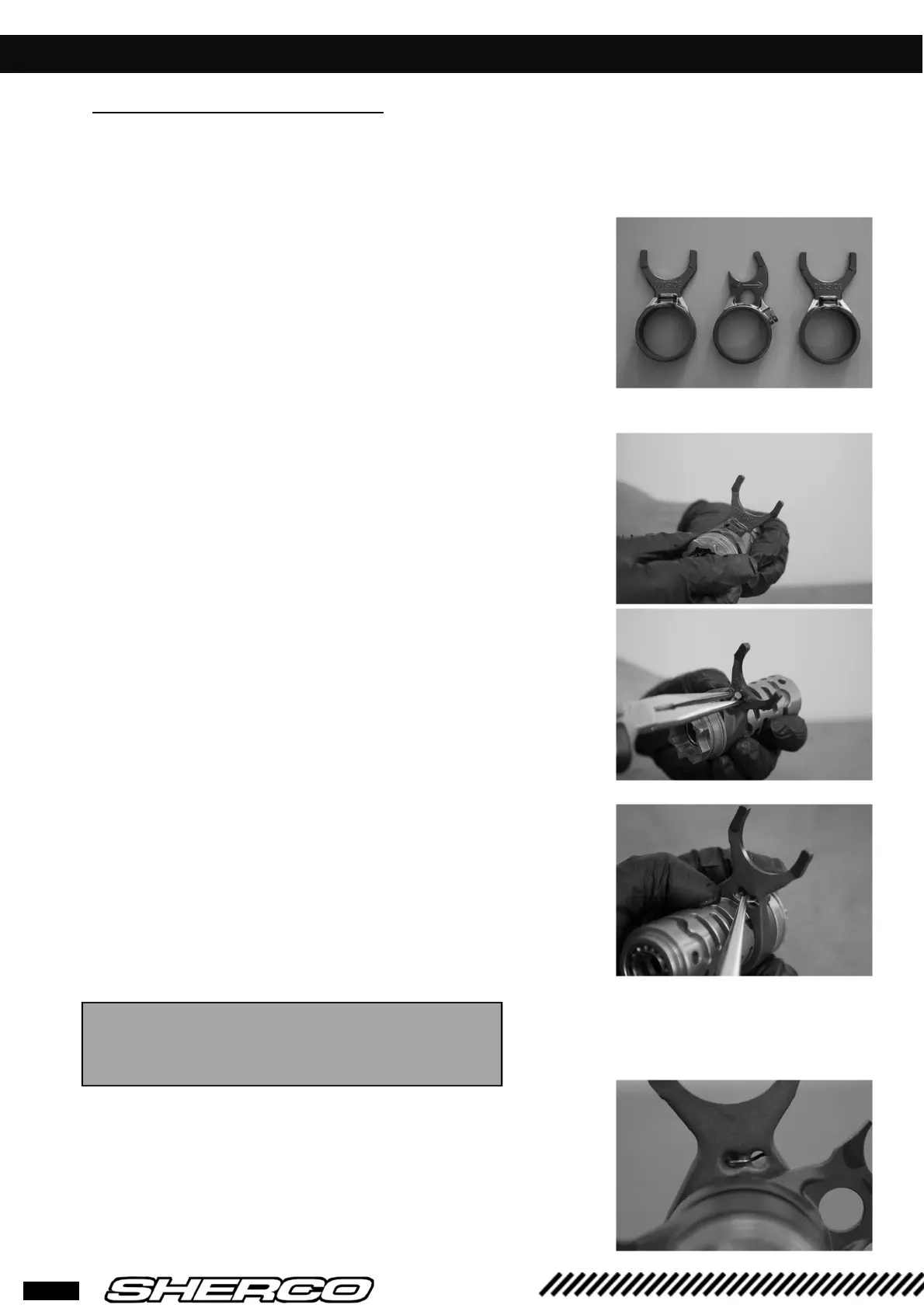

Prior to assembling, thoroughly oil all the parts
with the correct oil.
•
Assembling order of the forks is stamped on
each fork.:
-
The “Outside” mark matches the outside of
the shifting drum.
-
The arrow points to the front forward
direction.
•
First, start the assembly with the fork on the
selection star side..
•
Install it with the side stamped "outside" towards
the outside of the cylinder.
•
Put back in place the guide pin.
•
- Place the clip so that the right hand side passes
through the left hand hole to hold the guide pin
and then lock the clip through the right hand hole.
•
Make sure the pin retaining clip in well
positioned, as shown in the picture :
CAUTION
Always replace the pin retaining clips after
each removal
