24
ST SERIES

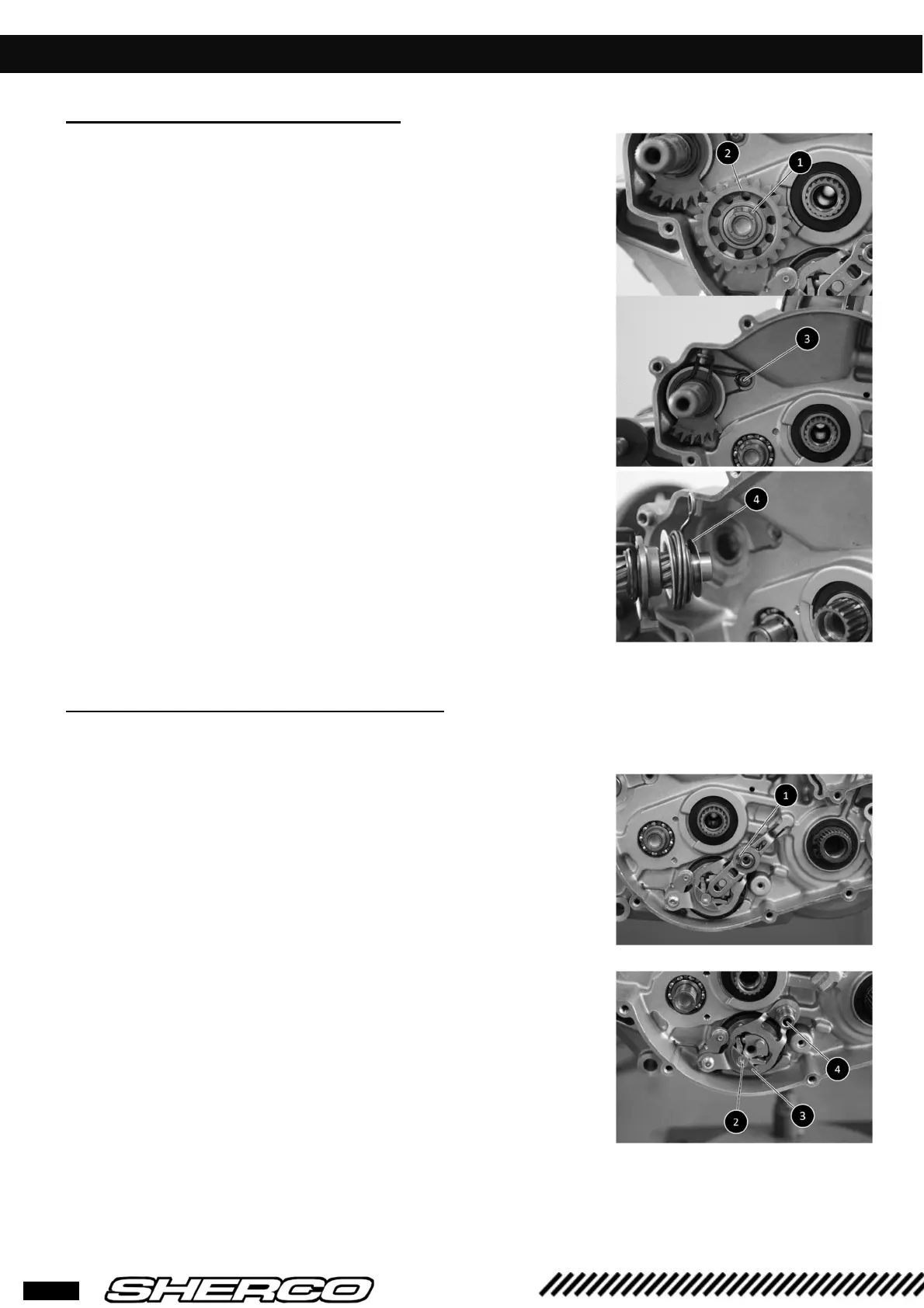

ENGINE DISASSEMBLING
❱❘ Kickstarter shaft removal
• Remove snap ring
1
and idle gear
2
.
• Remove spring lock screw
3
.
• Remove kickstarter shaft and the washer
4
.
❱❘ Shifting mechanism removal
• Remove the snap ring
1
1
• Remove the return spring and the holding plate.
• Remove the torx screw
2
and the shifting
pawls’s holding plate
3
.
• Undo the shaft
4
.
