26
ST SERIES

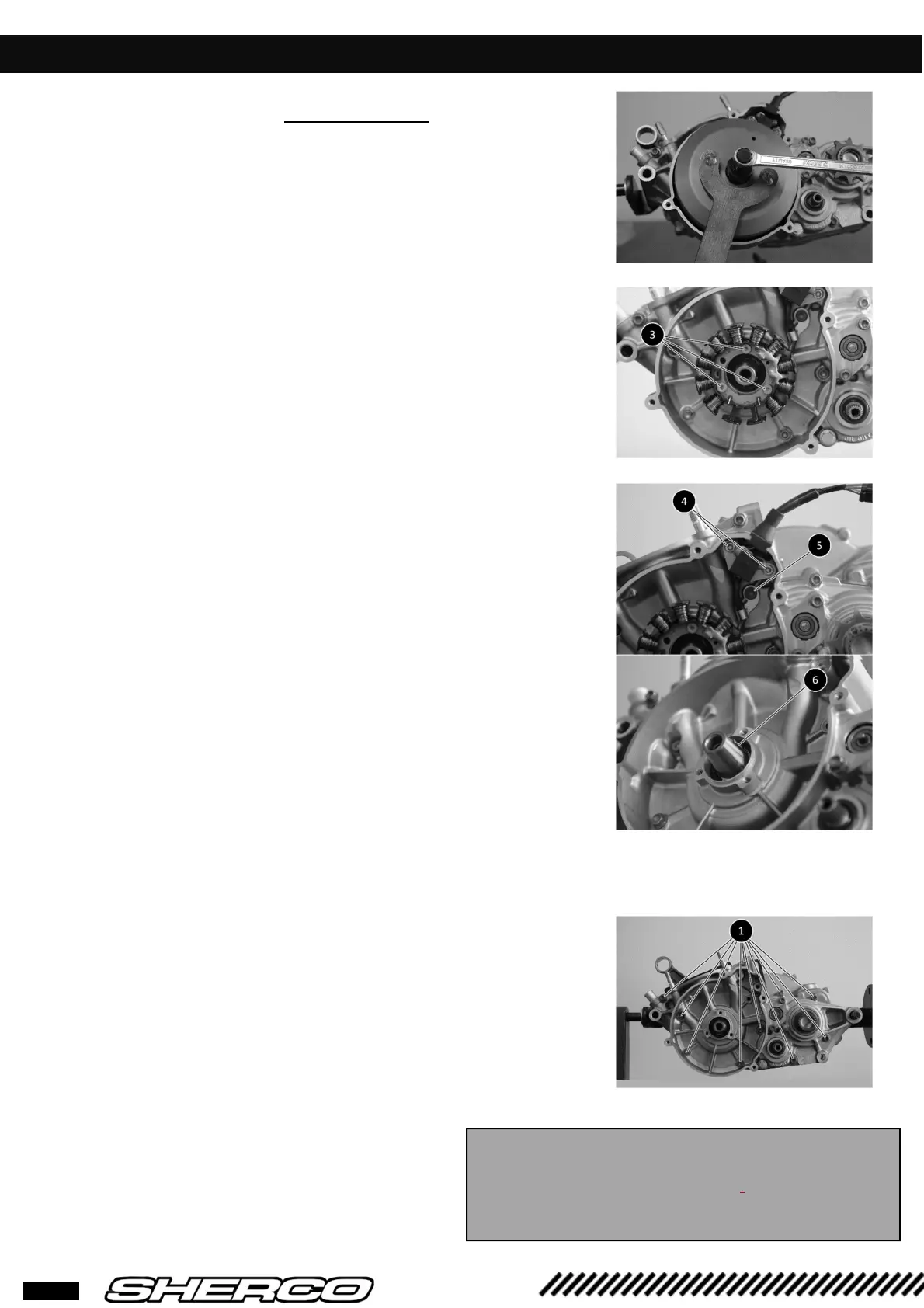

ENGINE DISASSEMBLING
• Using the flywheel puller part number 10984 ,
remove the flywheel.
• Remove the 3 stator screws
3
• Remove the pick-up holding screws
4
and
the wiring holding plate’s screw
5
• Remove the flywheel woodruff key
6
.
❱❘ Crankcase splitting
• After having removed the top-end, the intake,
the right side and the left side,
•
Turn the engine so you can see the ignition
side.
• Remove the ten screws
1
.
• Lift the left crankcase , slightly hitting the
output shaft and the crankshaft end with a
rubber mallet.
CAUTION
Do not introduce a screwdriver or another tool
between the cases to split them. You may damage
the mating surfaces.
