53

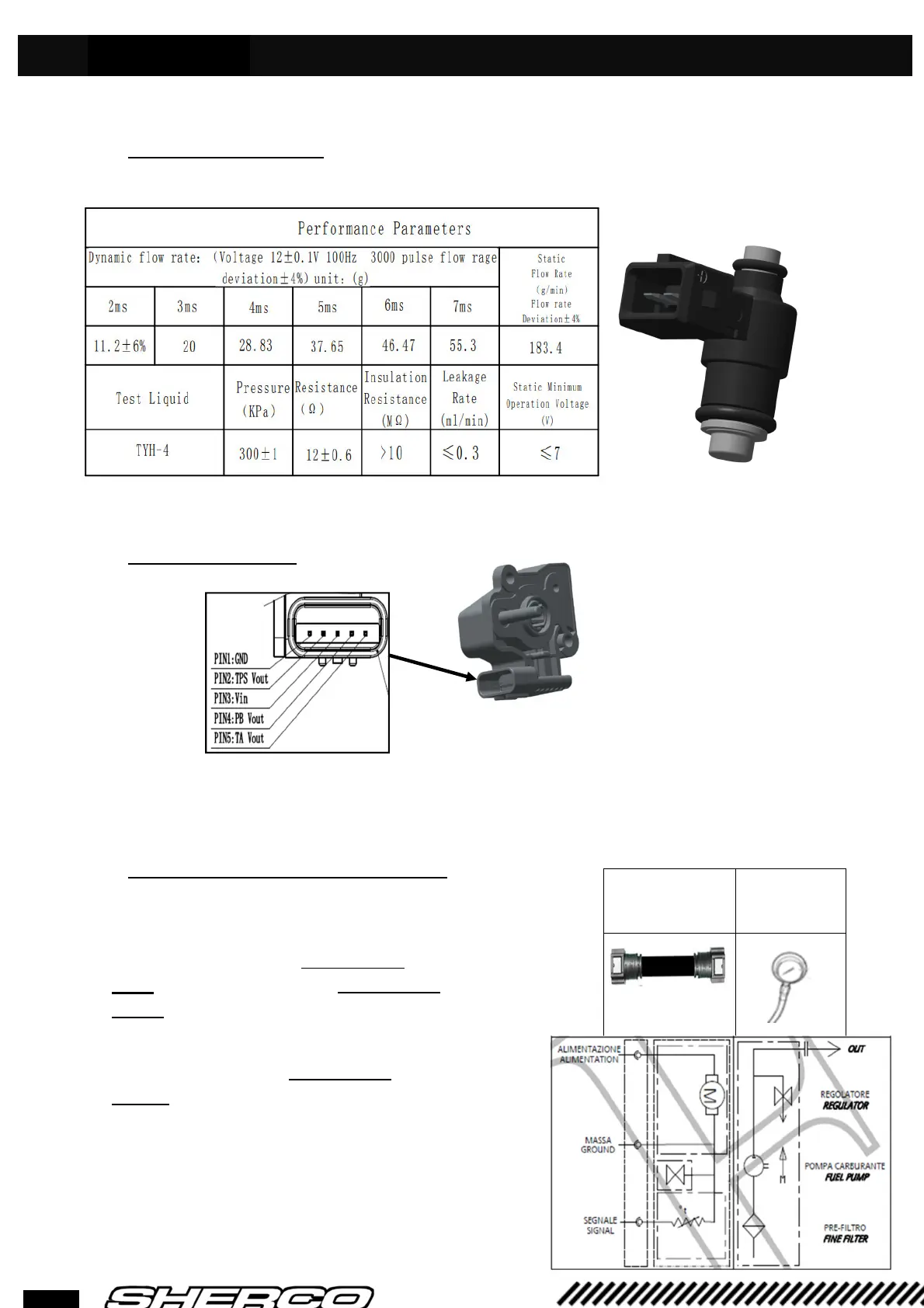

ST SERIES
ELECTRICAL
❱❘ Injector specs
❱❘ MAP specs
❱❘ Fuel pump specification
Disconnect the fuel pump line and
place pressure gauge Part number
8691 as well as connector Part number
11207.
Make the pump build up pressure,
connecting the shunt Part number
11212.
A steady pressure of 3,5 bars must be
maintained.
In the case of inferior pressure, replace
the fuel pump.
11207
8691
