39
ST SERIES
ENGINE ASSEMBLING

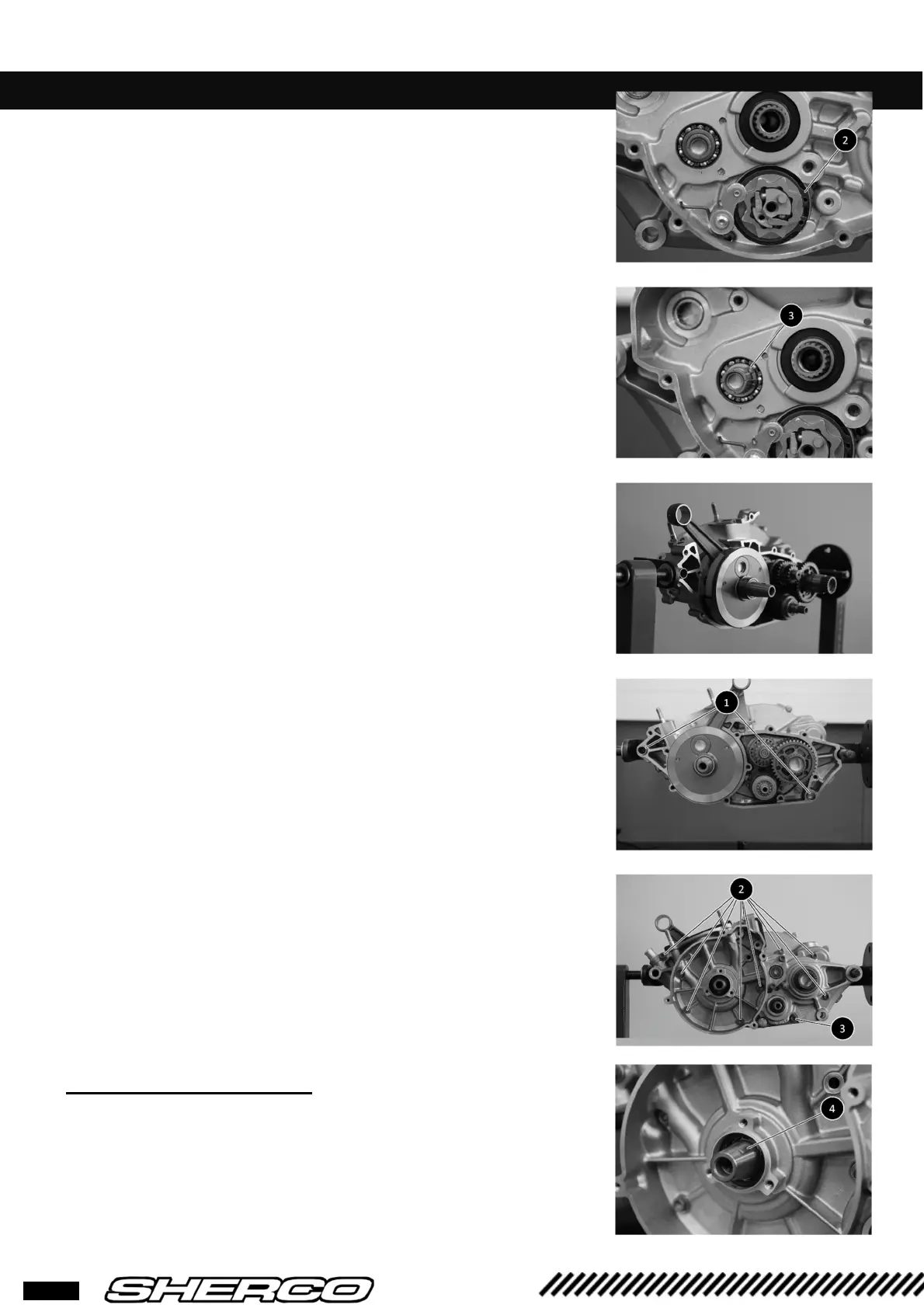

Install the shifting drum’s snap ring 2
and remove the shifting locator locking
tool.
Install the secondary shaft’s snap ring3
❱❘ Accoupling the crankcases
Install the crankshaft in the crankcase.
Make sure the two dowel pins 1 are well
positioned, and install the gasket.
Fit the nine screws 2 , with a copper
washer under the screw 3 Tighten them to
a 10Nm torque.
❱❘ Left hand side assembling
❱❘ Fitting the ignition
Replace the woodruff key by a new one,
and put it back in its slot.
4
