40
ST SERIES

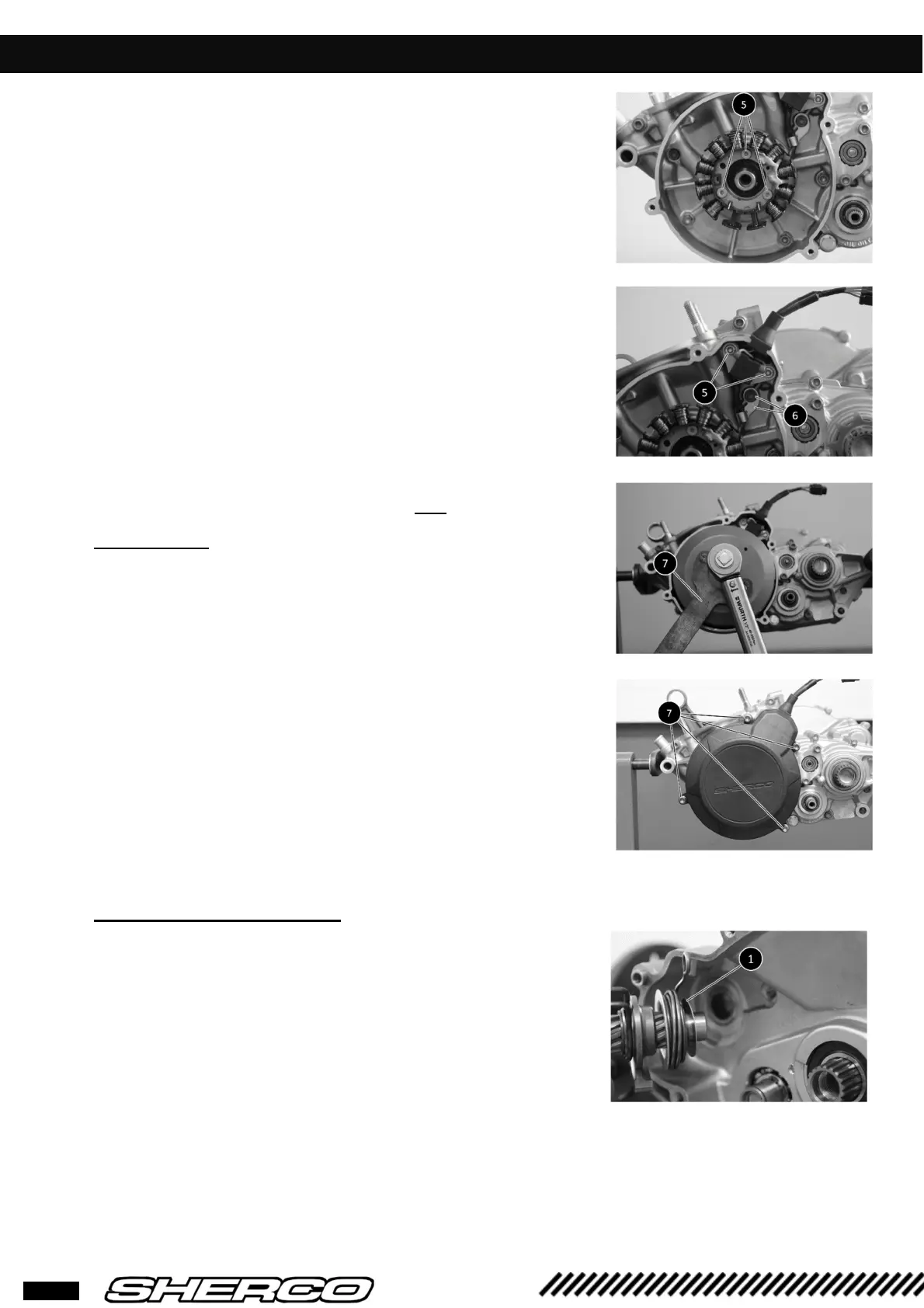

ENGINE ASSEMBLING
•
Fit the stator and tighten its screw 5 at a
7Nm torque.
• Fit the CHC screws
5
and the screw
6
with
the wiring holding plate.
• Fit the flywheel, and using the locking tool Part
number 10985
7
, tighten the CHC screw at a
80Nm torque.
• Fit the ignition cover then tighten its four screws
8
at a 8Nm torque.
❱❘ Right-hand side assembling
❱❘Clutch assembling
• Place the washer
1
and the kickstarter shaft.
