ST SERIES

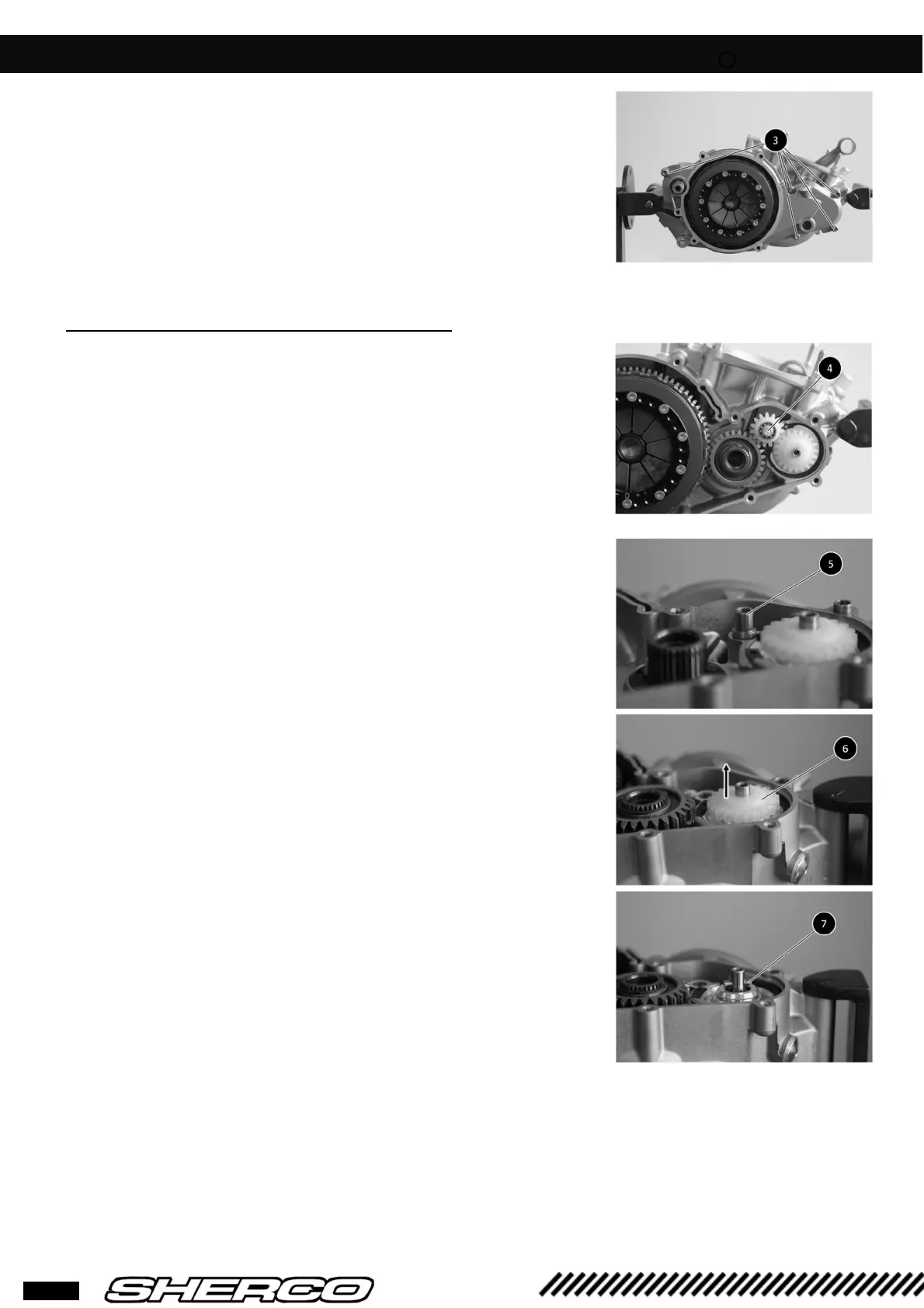

ENGINE DISASSEMBLING
• Remove the screws
3
as well as the clutch case.
❱❘ Coolant pump disassembling
• Remove the CHC screw
4
of the coolant pump
idle gear, and its washer.
• Remove idle gear shaft
5
• Remove coolant pump gear
6
• Remove shaft
7
.
