ST SERIES

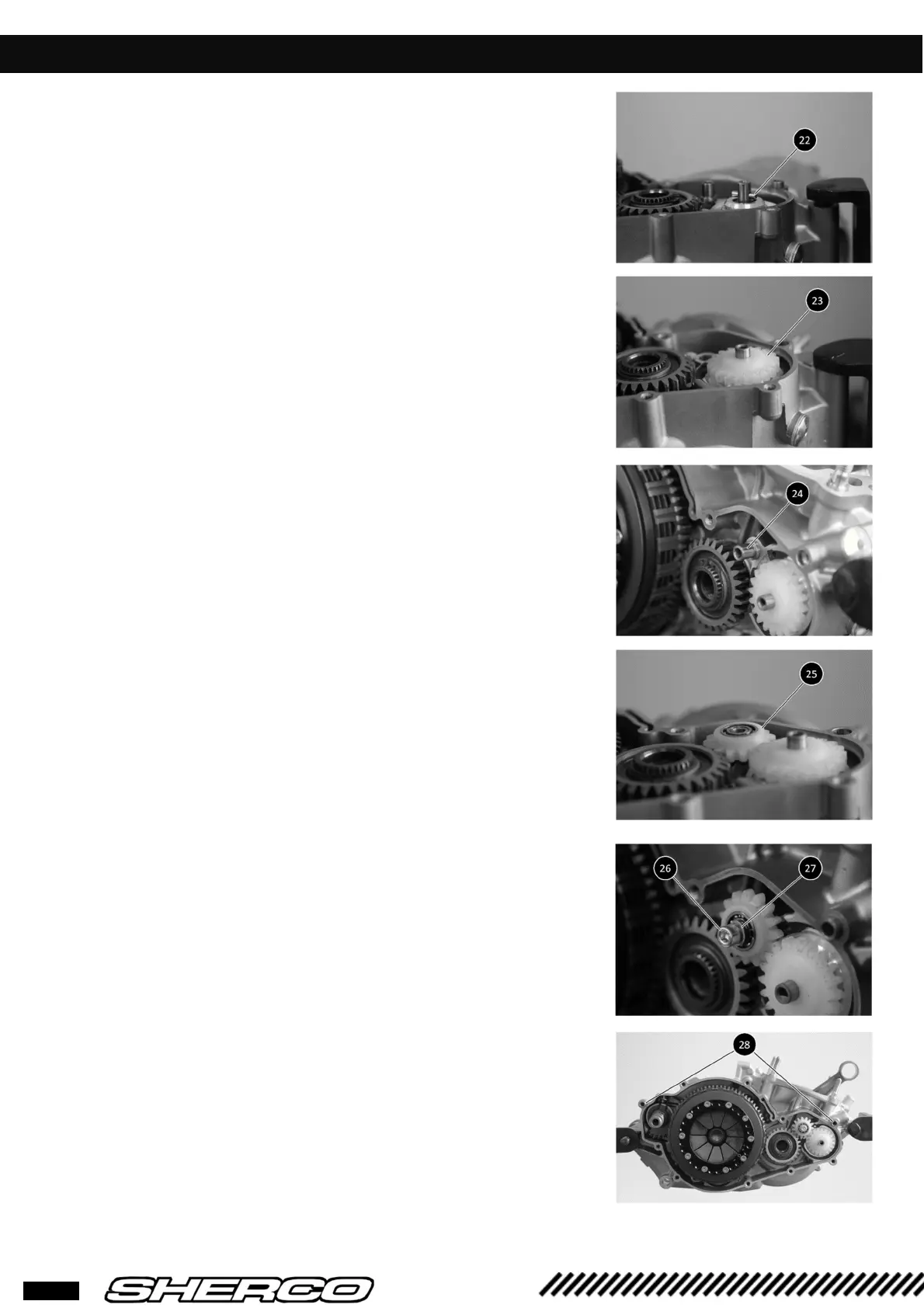

ENGINE ASSEMBLING
• Fit the drive pin d in the water pump’s shaft.
• Fit the water pump’s drive gear f.
• Place the water pump idler shaft g.
• Place the gear h on its shaft.
• Fit the screw j as well as the washer k .
• Tighten it to a 7Nm torque.
• Place the two dowel pins l .

SHERCO 125 Specifications

General

Starter	Kick starter
Bore x Stroke	54 mm x 54.5 mm
Cooling System	Liquid
Transmission	6-speed
Front Brake	Disc
Rear Brake	Disc
Displacement	124.8 cc
