ZEBV-5020C

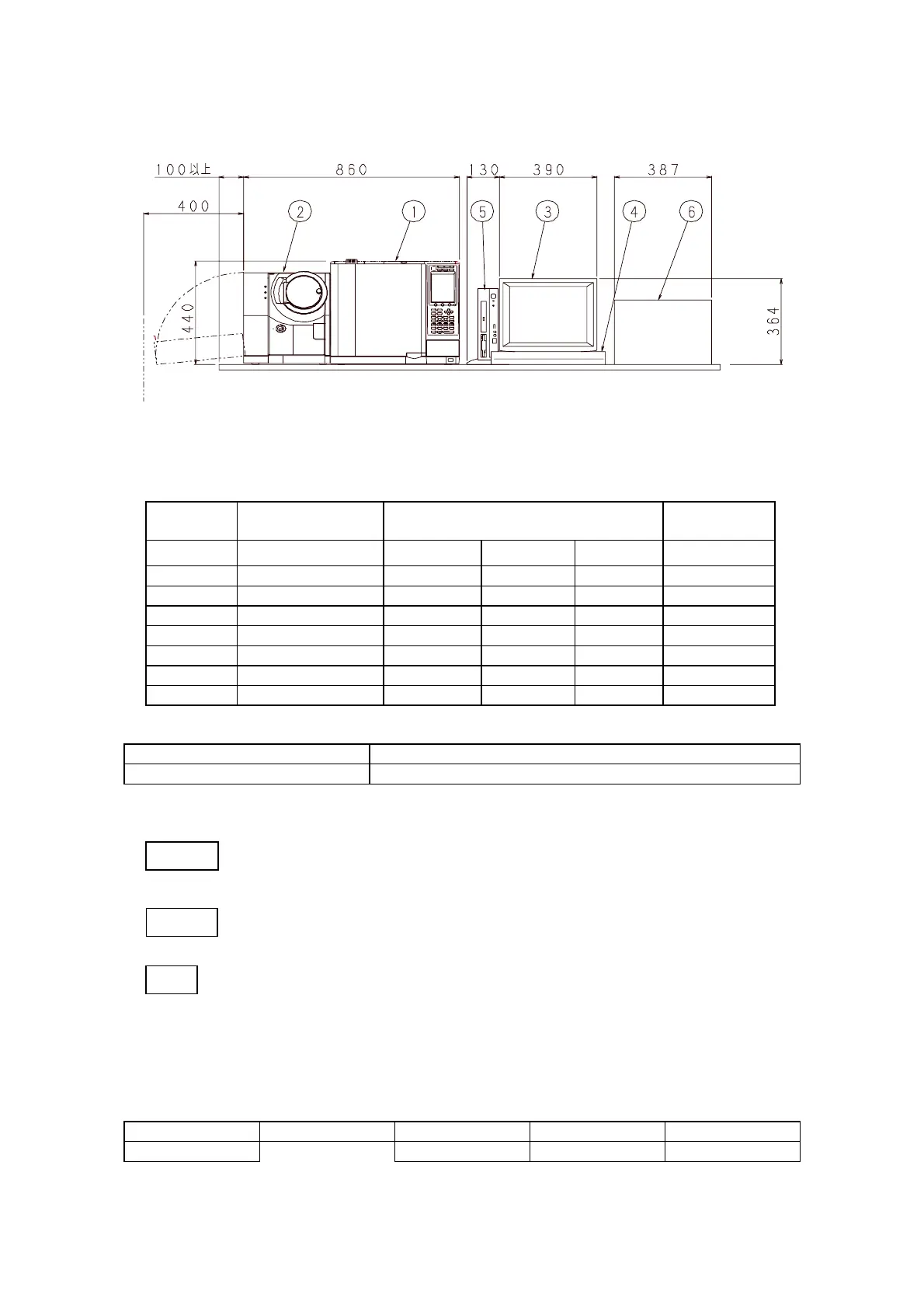

Installation example (The dimensions of the PC and printer may vary according to the model.)
See below for the cable and pipe lengths.
MS to rotary pump vacuum pipe approx. 1.5m
power cable approx. 1.5m
PC to MS cable approx. 2m (Note 1)
Reference
number
Description Dimensions (mm) Weight (kg)
W D H
1 GC 515 530 440 30
2 MS 345 494 390 44.5
3 Monitor 390 189 364 4.7
4 Keyboard 454 173 54 1
5 PC 171 326 323 6.5
6 Printer 387 283 274 7
7 Oil rotary pump 125 323 189 10
Note 1 A 4.5m cable is also available to install the PC and MS further apart.
Order it if required.
Cat. No. Description
070-60311-03 Cable AXJ231132 (4.5m)
4. Power requirements
CautionProvide the instrument with a separate power supply protected by an earth
leakage breaker. It must not share a power supply with any other equipment.
Caution
To prevent electric shocks, connect to earth with a grounding resistance not
exceeding 100
Ω
.
Note
Although the instrument is designed to operate normally with
±
10% AC line
voltage fluctuations, including accumulated rapid noise, to ensure performance
specifications are met, the voltage fluctuations (including noise) should not
exceed
±
5%. The power supply equipment must be improved if the voltage
fluctuations exceed
±
10%. Frequency fluctuations must not exceed
±
0.5Hz.
The power supply requirements for each unit are listed below.
* 115V instrument
Unit Voltage Capacity Cable length Terminal type
GC 115VAC, 1800VA 2.0m Fig. 1
