- 122 -

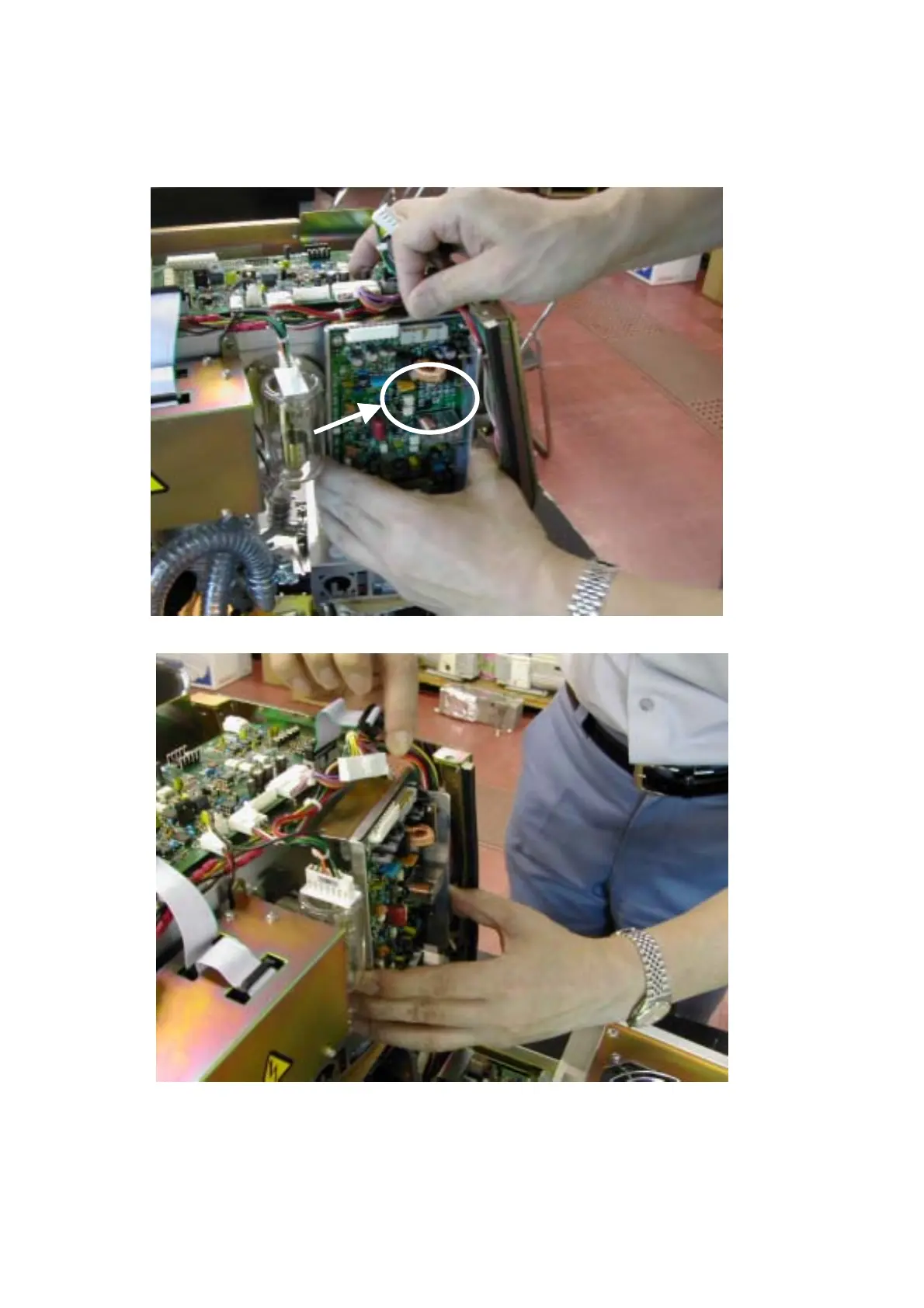

Disconnect the feedthrough connection, indicated by arrow, by holding the IS CTRL-A board in
both hands. ( Be careful not to put insufficiently strong power into the feedthrough)
Put wires aside and remove the IS CTRL-A board unit.
