34

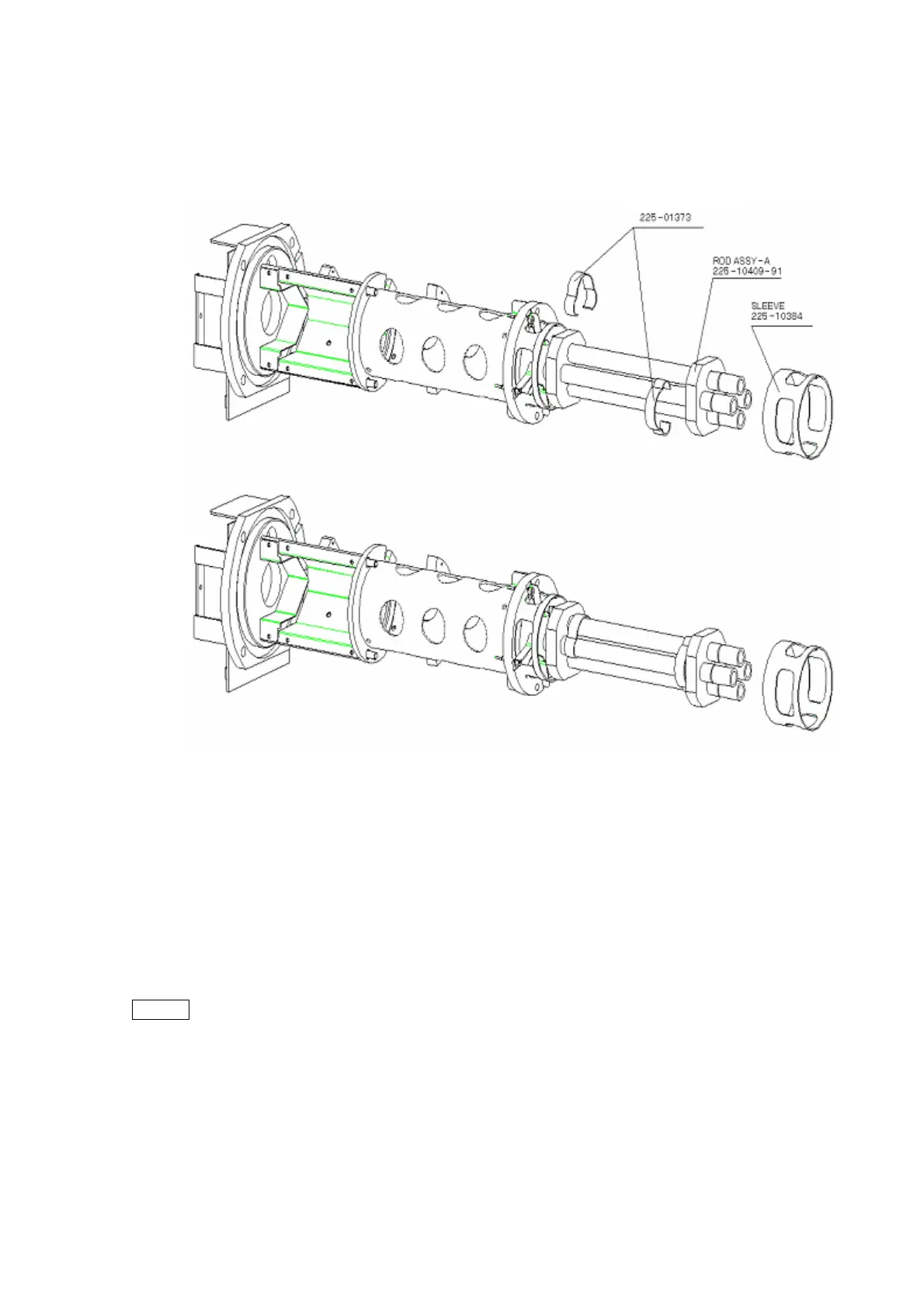

Note : The short springs are inside the position shown in the diagram above.
The distance of the springs from the insulators are as follows:
Pre-rod end 17.5mm
Detector end 21.5mm
Removing the ROD Assy
1. Remove the three rod fixing screws.
2. Remove the sleeve.
3. Carefully pull the rods out of the MS FILTER Assy.
Caution
The ROD Assy is specially assembled to micron (1/1000mm) accuracy. Applying
shocks or forces to the ROD Assy may cause displacement that has a major effect on
the MS performance. Be especially careful when handling the ROD Assy.
Short s
p
rin
g
