Electrical installation
6.2 Configuration connection M8)×)4 (serial interface)
#
Pin # Sender/" Receiver PC-side RS-232-D-Sub
1 Not assigned
2 RxD Pin 3
3 0 V DC (voltage supply) Pin 5
4 TxD Pin 2
The pin assignment of sender and receiver is identical.
 After configuration always remove the connecting cable from the configuration connec-
tion!
 After the configuration of the device has been completed, locate the attached protection
cap to cover the configuration connection.

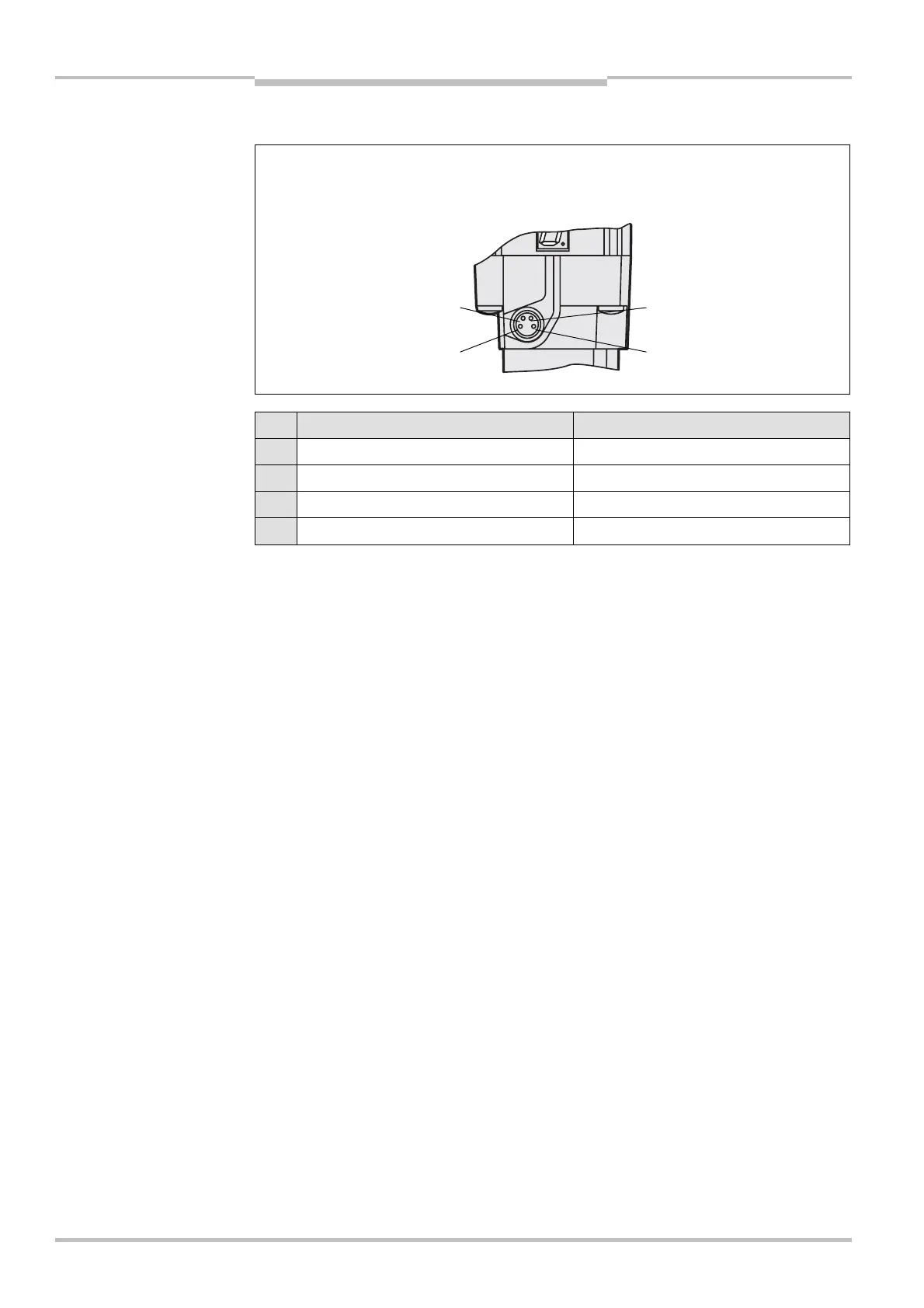

Fig. 29: Pin assignment
configuration connection
M8
) × ) 4
Tab. 15: Pin assignment
configuration connection
M8
) × ) 4
Notes
42
31
