Technical specifications
11.4.3 C 4000 Standard/Advanced with extension connection
Protective field height
S [mm]
Dimension
L1 [mm]
Dimension
L2 [mm]
Dimension
A [mm]
300 381 464 224
450 532 614 374
600 682 765 524
750 833 915 674
900 984 1066 824
1050 1134 1216 974
1200 1283 1366 1124
1350 1435 1517 1274
1500 1586 1669 1424
1650 1736 1818 1574
1800 1887 1969 1724

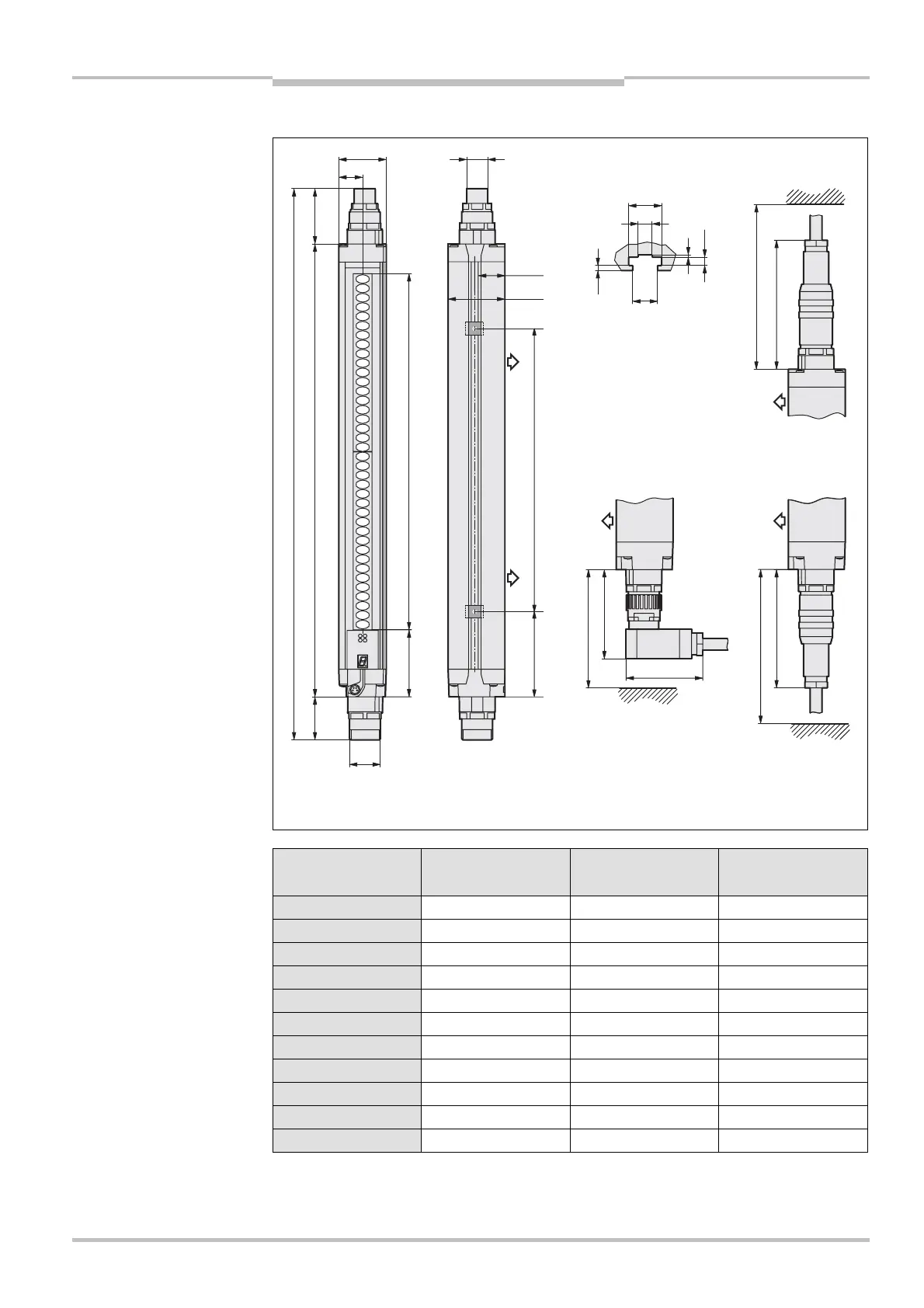

Fig. 40: Dimensional drawing
C 4000 Standard/Advanced
with extension connection,
sender.
Receiver, mirror image
Tab. 32: Dimensions
dependent on the
protective field height,
C 4000 Standard/Advanced
with extension connection
Sliding nut groove
for side mounting
14
6
10.5
2.2
1
3.5
DIN 43
)
651 socket (M26
)
×
)
11 + FE)
22.4
74 A
48
56.3 S
DIN 43
)
651 plug (M26
)
×
)
11 + FE)
40
20
L2
36.2
46.5
Ca. 150 (connector range)
110
Cable plug
M26
)
×
)
11 + FE with
crimp contacts
Ca. 100 (connector range)
75
Ca. 140 (connector range)
100
Cable sockets M26
)
×
)
11 + FE
with crimp contacts
65
