Operating Instructions Chapter 11
C 4000 Standard/Advanced
8 009 861/OE59/19-11-04 © SICK AG • Industrial Safety Systems • Germany • All rights reserved
73
Technical specifications
11.4 Dimensional drawings
11.4.1 C 4000 Standard/Advanced without extension connection
Protective field height
S [mm]
Dimension
L1 [mm]
Dimension
L2 [mm]
Dimension
A [mm]
300 381 427 224
450 532 578 374
600 682 728 524
750 833 879 674
900 984 1030 824
1050 1134 1180 974
1200 1283 1329 1124
1350 1435 1481 1274
1500 1586 1632 1424
1650 1736 1782 1574
1800 1887 1933 1724

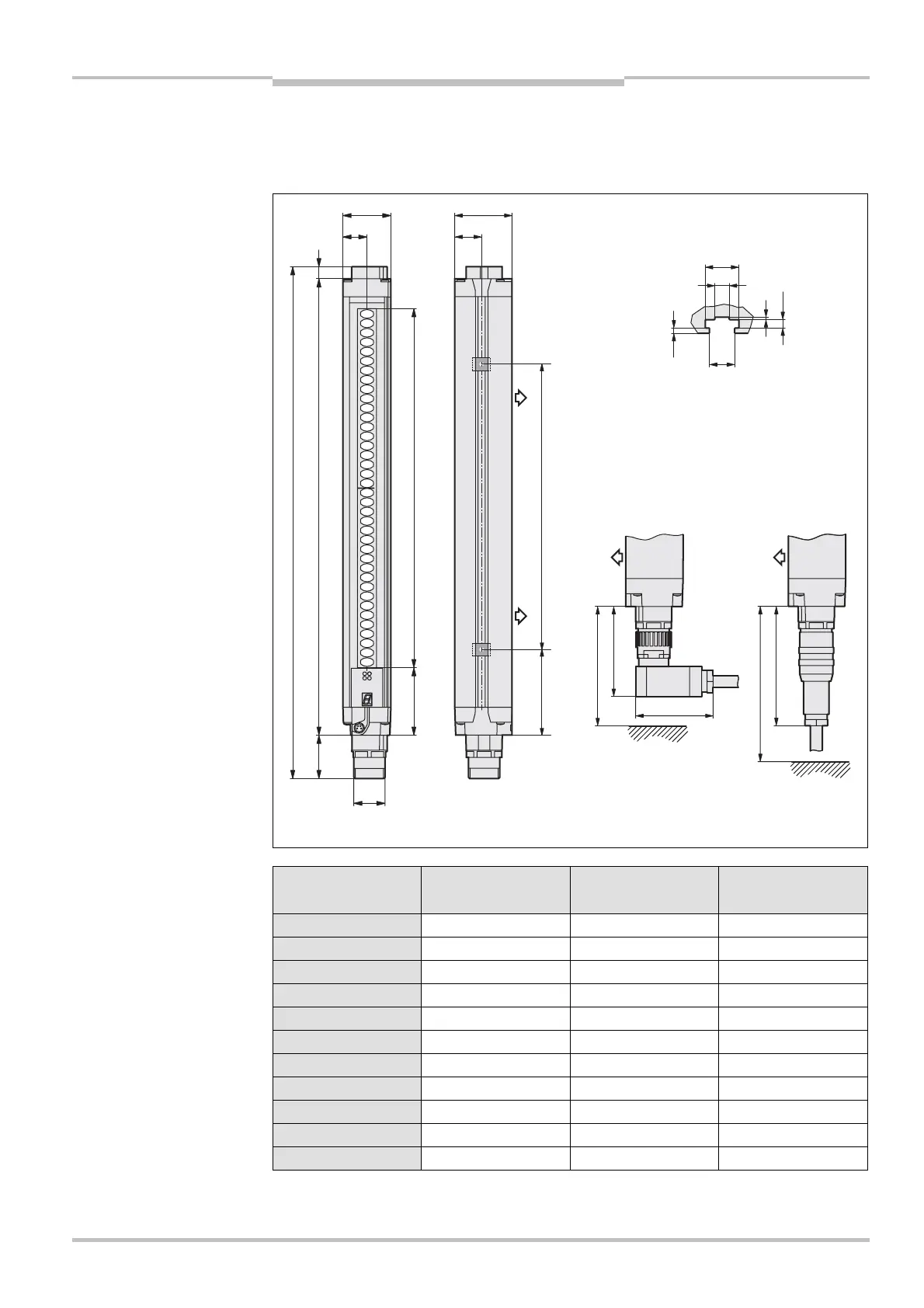

Fig. 38: Dimensional drawing
C 4000 Standard/Advanced
without extension connec-
tion, sender.
Receiver, mirror image
Tab. 30: Dimensions
dependent on the
protective field height,
C 4000 Standard/Advanced
without extension connection
56.3
10
DIN 43
)
651 plug (M26
)
×
)
11 + FE)
40
20
L1
L2
S
74
48
22.4
A
Sliding nut groove
for side mounting
14
6
10.5
2.2
1
3.5
Cable sockets M26
)
×
)
11 + FE
with crimp contacts
Ca. 100 (connector range)
75
Ca. 140 (connector range)
100
65
36.2
