Chapter 5 Operating Instructions
C 4000 Standard/Advanced
44 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8 009 861/OE59/19-11-04
Installation and mounting
5.2.2 Mounting with side bracket
The side bracket is made of die cast zinc ZP 0400. It is enamelled in black. The side
bracket will be covered by the device after mounting. But it is only suitable for mounting
surfaces lying parallel to the desired protective field because the alignment of sender and
receiver can only be adjusted by a maximum of ±2.5° after mounting.
Attach the bolts of the side bracket with a torque of between 5 and 6 Nm. Higher
torques can damage the bracket; lower torques provide inadequate protection against
vibration.
When mounting the bracket, note the distance and the position of the sliding nuts as
described in chapter 11.4 “Dimensional drawings” on page 73f.

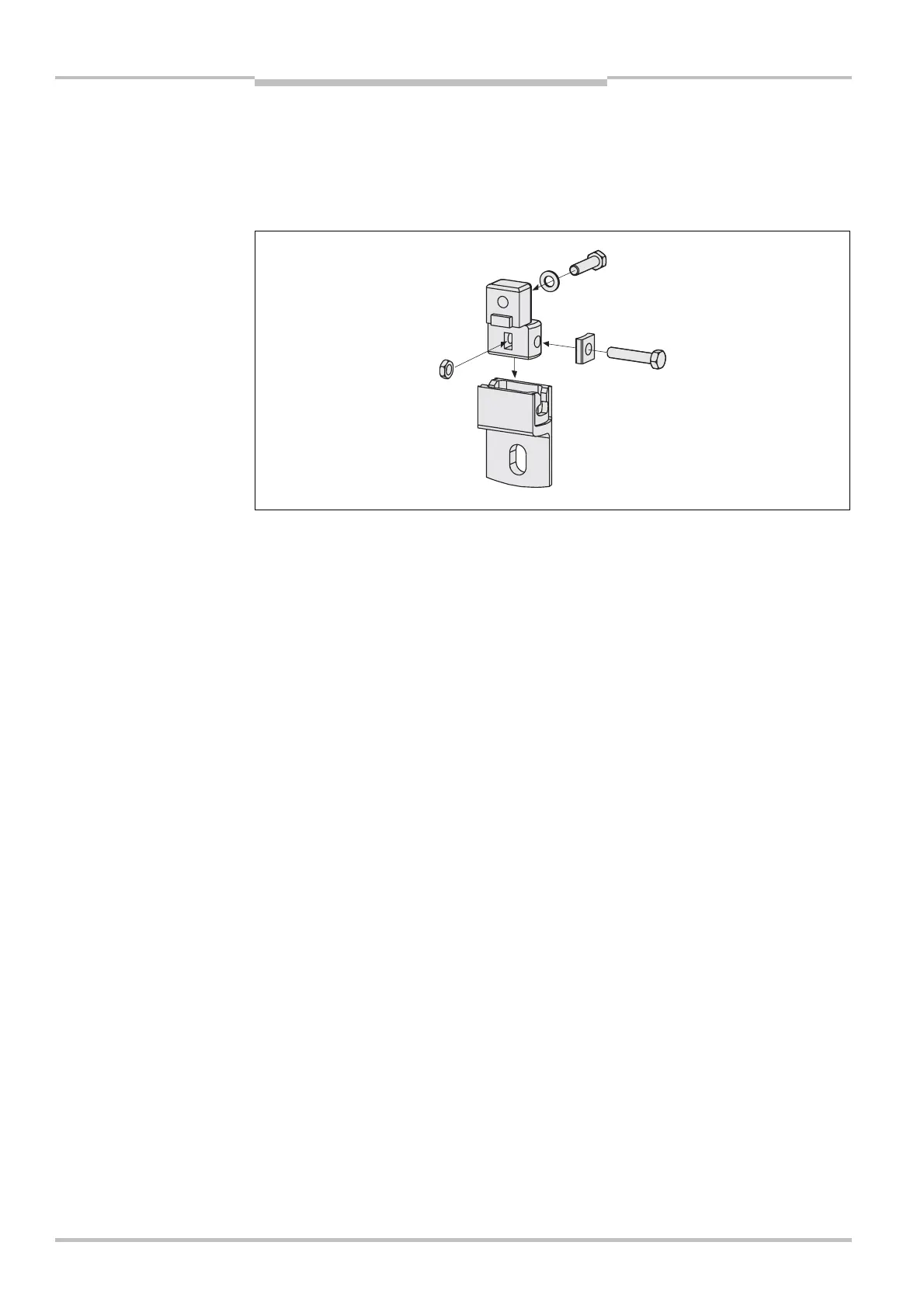

Fig. 26: Composition of the
side bracket
Notes
Part No. 2 019 506
