SICK C4000 Micro

Chapter 10 Operating Instructions
C4000 Micro/Basic/Basic Plus/Eco
48 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009423/YT79/2016-03-14
Subject to change without notice
Technical specifications
Minimum Typical Maximum
Operating data
Connection
C4000 Basic
M26 × 6 + FE
C4000 Eco
M12 × 4 + FE
C4000 Micro/Basic Plus
M12 × 7 + FE
Line length and cross section
13)
C4000 Basic
50 m/0.75 mm²
C4000 Eco
15 m/0.25 mm
2
C4000 Micro/Basic Plus
14)
15 m/0.25 mm²
Ambient operating temperature 0°C +55°C
Air humidity (non-dewing) 15 % 95 %
Storage temperature –25°C +70°C
Housing cross-section
C4000 Basic/Basic Plus/Eco
40 mm × 48 mm
C4000 Micro
28.5 mm × 33.5 mm
Rigidity 5 g, 10–55 Hz acc. to EN 60 068-2-6
Shock resistance 10 g, 16 ms acc. to EN 60 068-2-27
13)
Dependent on loading, power supply. The technical specifications must be observed.
14)

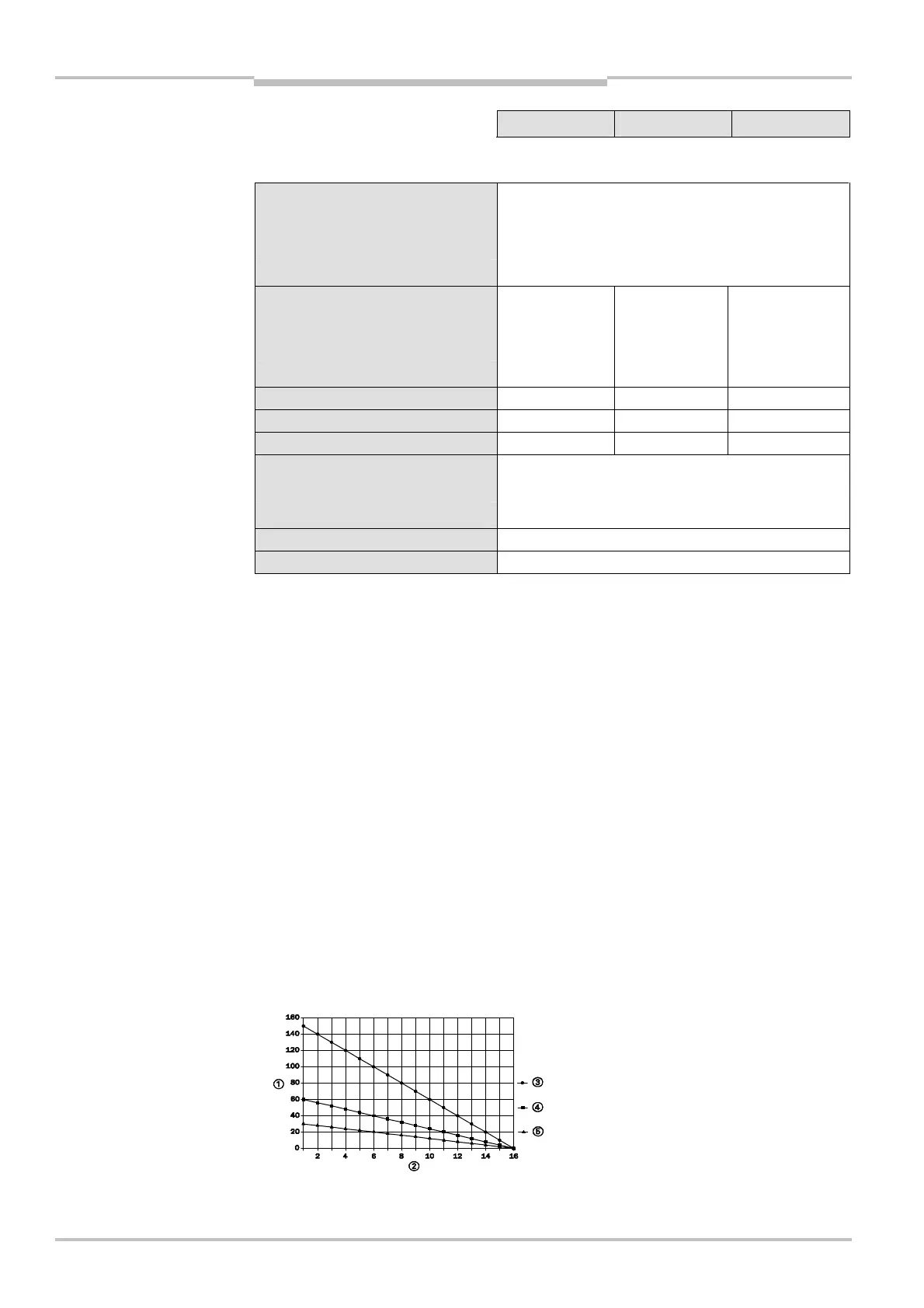

If connection cables with large wire cross-section are used, the distance between the devices may be
extended. Possible cable lengths for M12 connectors (0.25 mm
2
) when extended with a larger wire cross-
section area cable after x metres:
1 = Remaining cable length after extension in metres 3 = Wire cross-section area of 2.5 mm
2
2 = Cable length in metres with a wire cross-section
area of 0.25 mm
2
4 = Wire cross-section area of 1.0 mm
2
5 = Wire cross-section area of 0.5 mm
2
