SICK Dx35 User Manual

8014868/YEF7/2014-09-02 • © SICK AG • Subject to change without notice 29
Operating instructions Distance sensors Dx35
Commissioning
Q1 far or Q2 far
(continued)
Example: One-point teach is to be performed for the switching output Q1.
1. Position object at teach point 1.
2. Press and hold the select pushbutton for longer than 5 seconds. The
Q1 near LED lights up.
3. Press the select pushbutton. The Q1 far LED lights up.
Press the set pushbutton.
If the teach was successful, the setting is applied immediately.
The Q1 and Q2 LEDs ash twice simultaneously. If the teach was not
successful, the Q1 and Q2 LEDs ash alternately.
4. If necessary, perform ne teach. → See Page 34, Chapter 8.3.
5. In order to leave teach mode, either press and hold the select
pushbutton longer than 5 seconds or wait 5 minutes without pressing
the pushbuttons.
8.1.2 Performing window (Wnd) teach
Window (Wnd) The switching output is set when the object is located within the congured
window.
In the range below 50 mm, the switching behavior is dependent on
the signal quality.
near < far
(non-inverted behavior)
Dx
35
MinMax
1
1
0
2

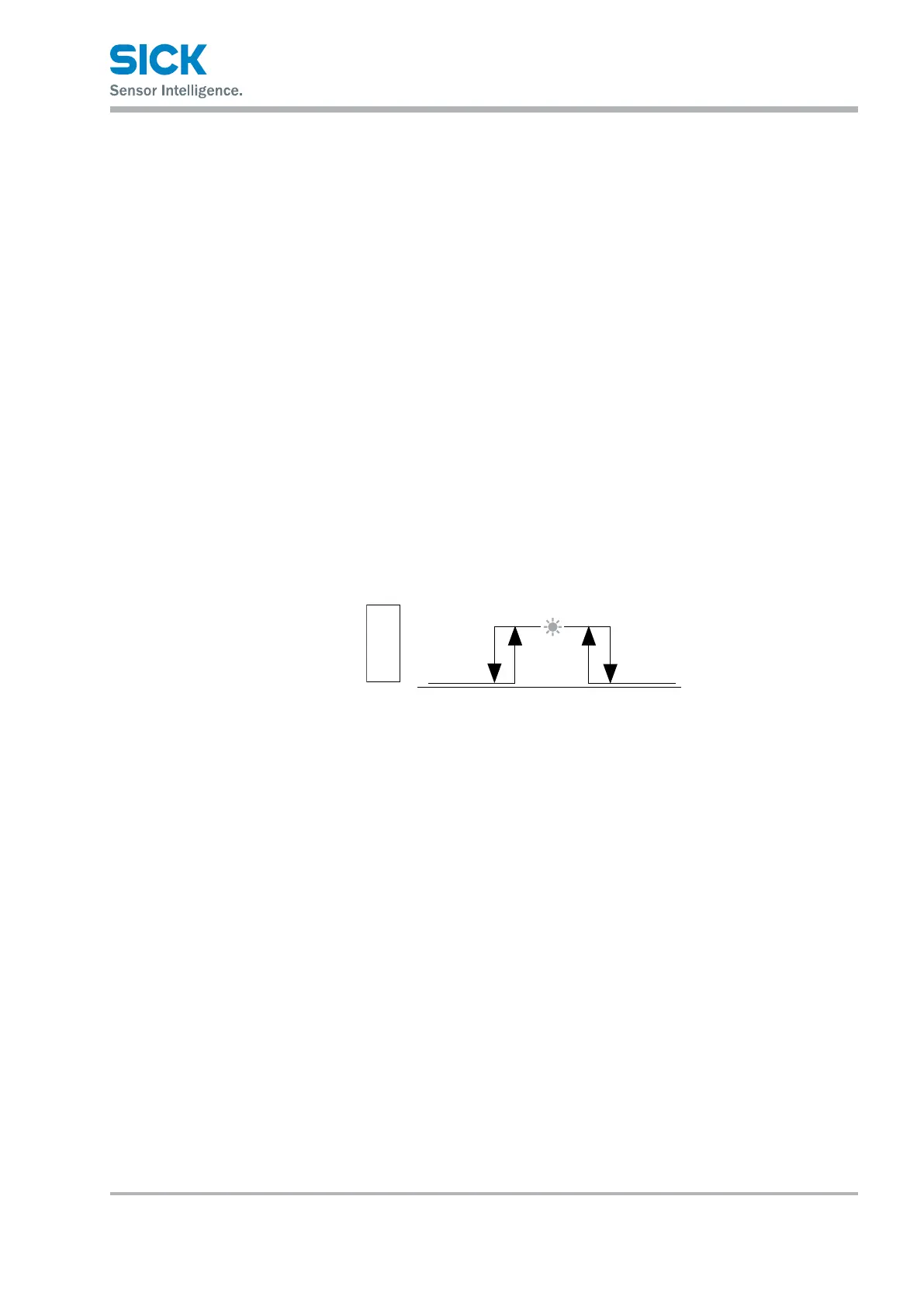

Fig. 11: Setting switching points for window (non-inverted behaviour)
1 Teach point near, position 1
2 Teach point far, position 2
Example: Window teach is to be performed for the switching output Q1.
1. Position object at teach point 1.
2. Press and hold the select pushbutton for longer than 5 seconds. The
Q1 near LED lights up.
3. Press the set pushbutton.
If the teach was successful, the setting is applied immediately. The Q1
and Q2 LEDs ash twice simultaneously. If the teach was not success-
ful, the Q1 and Q2 LEDs ash alternately.
4. If necessary, perform ne teach. → See Page 34, Chapter 8.3.
