8014868/YEF7/2014-09-02 • © SICK AG • Subject to change without notice 33
Operating instructions Distance sensors Dx35
Commissioning
8.2 Scaling the analog output
NOTE
The analog output function for Q2 is available only in
the DT35 and DL35 distance sensors.
NOTE
If the "near" teach point is taught in at a distance greater
than the "far" teach point, the output behavior is inverted.
You can scale the analog output of the sensor within the specied
measuring range of the sensor. The measurement must be possible on
the object to be taught at the time of the teach.
Factory setting:
DT35: 4 mA / 0 V e 50 mm, 20 mA / 10 V e 10,000 mm
DL35: 4 mA / 0 V e 200 mm, 20 mA / 10 V e 35,000 mm
The resolution of the analog output is 12 bits.
Set the output behavior for the Q2 output (4 … 20 mA / 0 … 10 V /
switching output 2) in expert mode. See Page 36, Chapter 8.5.
20.5
20.0
4.0
3.5
Min. Max.
mA
10.0
0
Min. Max.
V
Δmin: 50 mm
2
Δmin: 50 mm
13 2
13

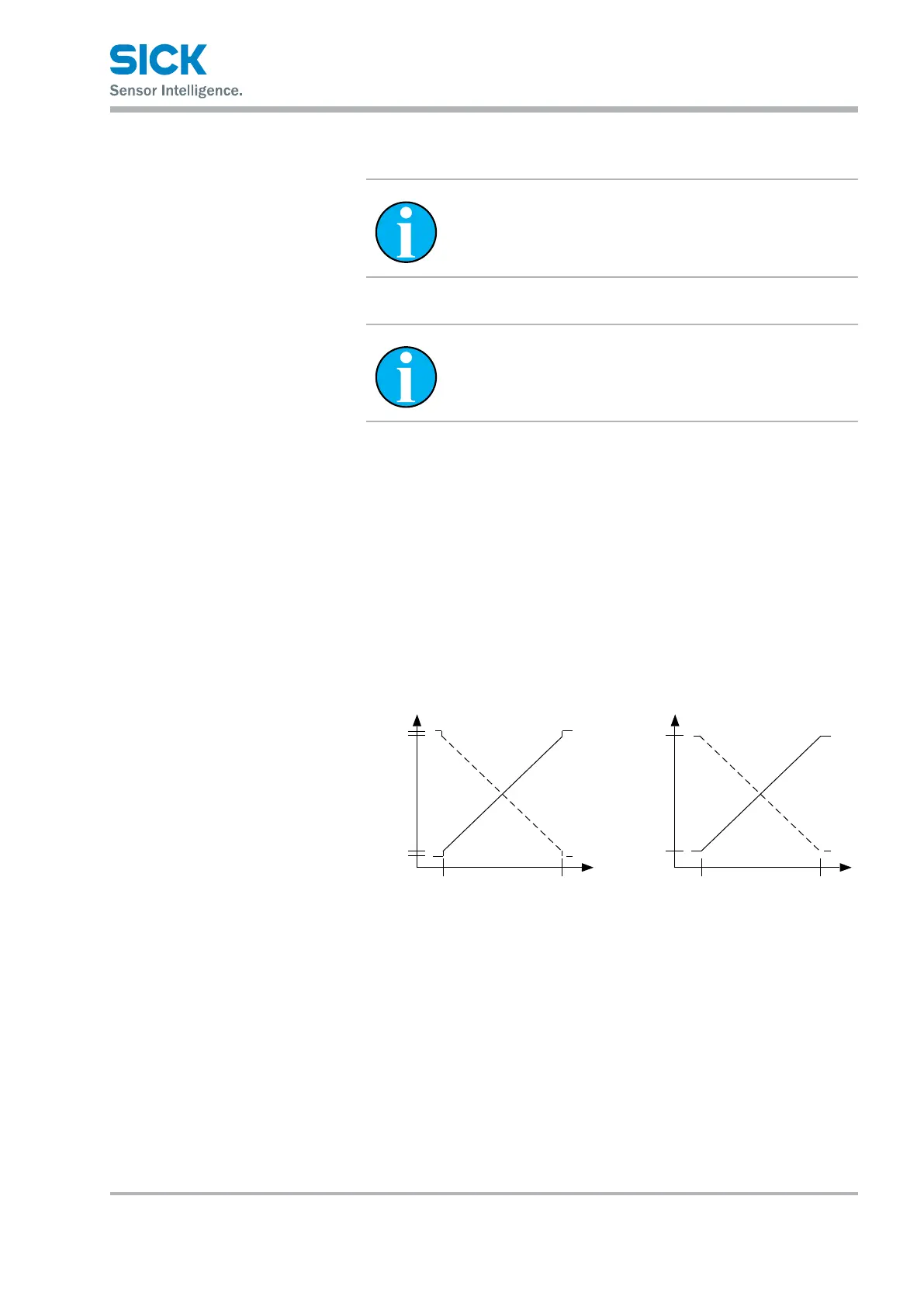

Fig. 14: Scaling the analog output
1 Teach point for distance near the sensor
2 Minimum span between the teach points of the distance near the sensor and
the distance far from the sensor: 50 mm
3 Teach point for distance far from the sensor
