14 Accessories
NOTE
This chapter illustrates only the preferred or most
important accessories for the Dx35. For accessories,
go to "www.mysick.com/en/dx35", "Accessories".
14.1 Cables and Connectors
14.1.1 Cable socket, straight, with cable
*L*42.9 (1.69)
(0.41)
(0.41)
(0.35)
14.5
(0.57)
3.1
(0.12)
10.3
(0.41)
1.5
(0.6)
5/gra
4/blk3/blu
2/wht 1/br
n
M12x1
(0.47x0.04)

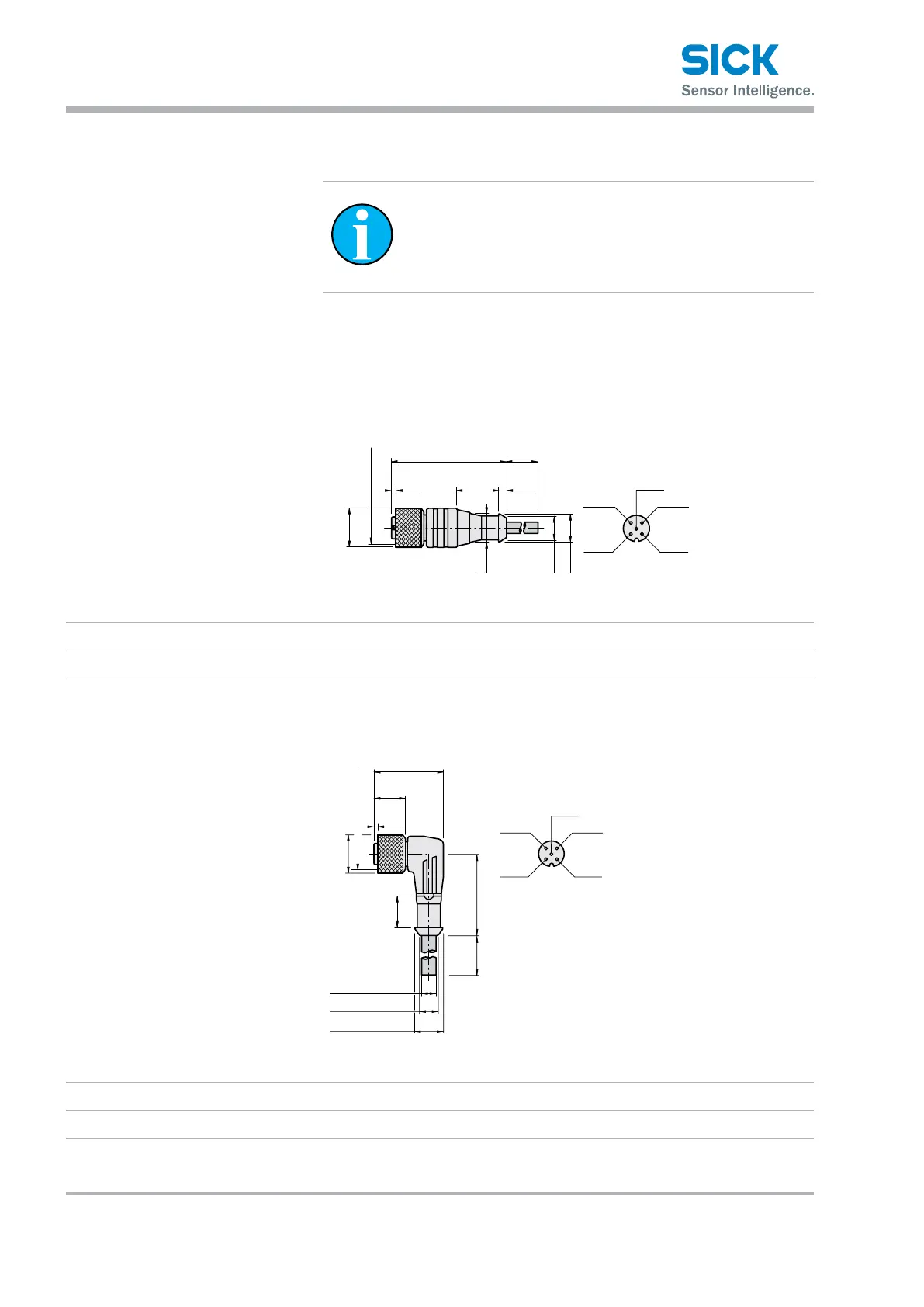

Fig. 25: Cable socket, M12, 5-pin, straight, with cable
Description Type Order No.
Cable socket, M12, 5-pin, straight, 2 m, PVC DOL-1205-G02M 6008899
14.1.2 Cable socket, angled, with cable
26.5 (1.04)
12
(0.47)
12
(0.47)
1.5
(0.06)
max. Ø 6 (0.24)
14.5
(0.57)
Ø 8.8 (0.35)
Ø 10.5 (0.41)
31 (1.22)
*L*
5/gra
4/blk
3/blu
2/wht 1/br
n
M12x1
(0.47x0.04)
Fig. 26: Cable socket, M12, 5-pin, angled, with cable
Description Type Order No.
Cable socket, M12, 5-pin, angled, 2 m, PVC DOL-1205-W02M 6008900
