SICK Dx35 - DL35 and DR35 models

8014868/YEF7/2014-09-02 • © SICK AG • Subject to change without notice 59
Operating instructions Distance sensors Dx35
Technical data
13.10.2 DL35 and DR35 models
Characteristic curve for
"super-slow" … "super-fast" speeds
Distance in m (feet)
(32.8)
(0.08)
(0.16)
(0.24)
(0.31)
(0.39)
(65.6) (98.4) (131.2) (164.1)
0
50
Repeatability in mm (inch
)
0
2
4
6
8
10
10 20 30 40
Fast
Medium
Slow
Super Slow
Super Fast
Functional reserve
Specification basis
technical data
Secured performance
Super Slow ... Super Fast

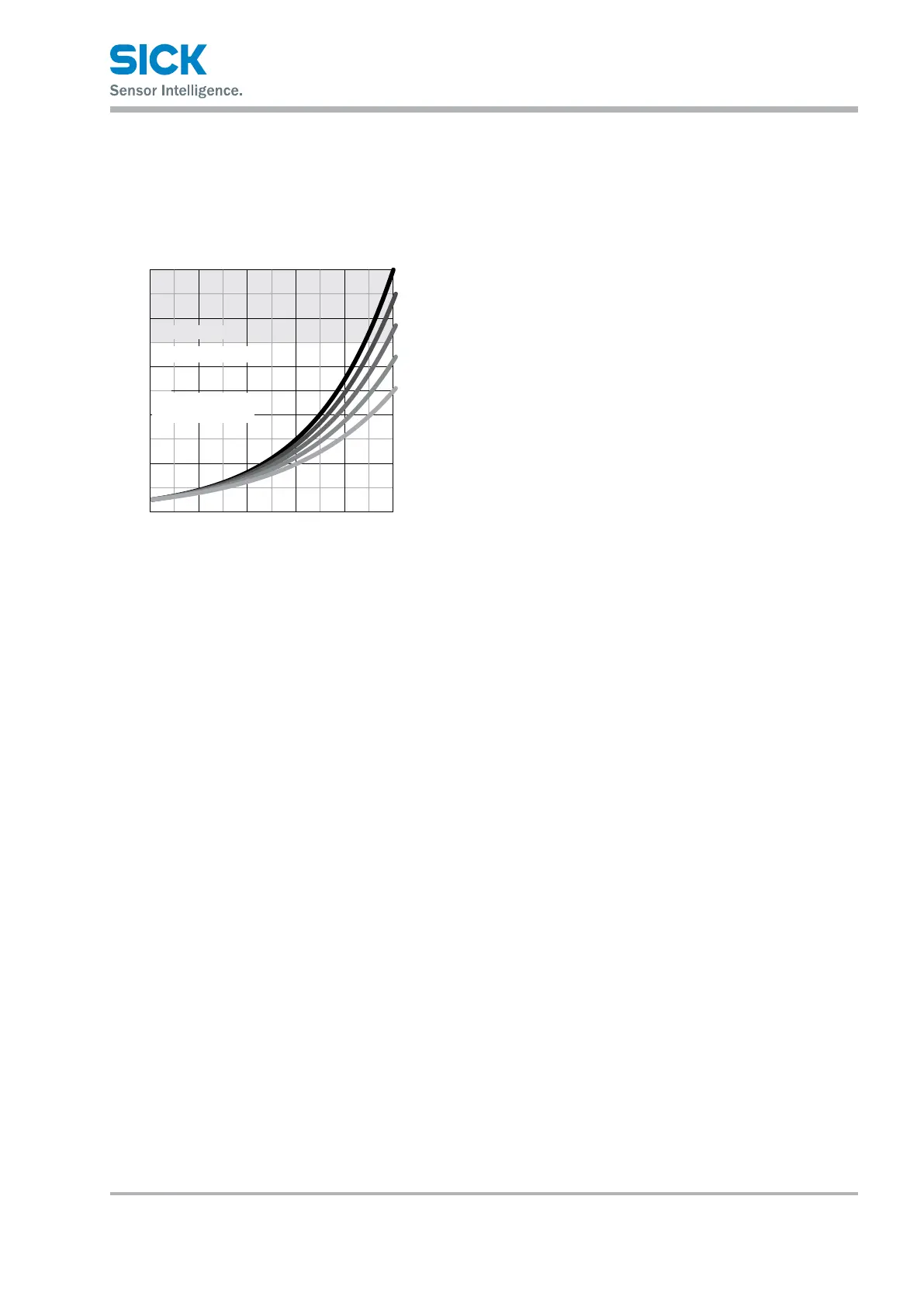

Fig. 24: Characteristic curve for
"super-slow" … "super-fast" speeds
