ORIGINAL OPERATING INSTRUCTIONS| VMS4200/5200 (Multicontroller)
For dynamic scale value switchover, the scale values for two scale interval values used
must be described in two separate information labels. For scale interval value 1, the
dynamic option on the system information label should be marked. The dimension
values with unit of measurement (mm or inch) must be specified in indelible ink. On the
information label for scale interval value 2, the dynamic scale value and the measuring
unit (mm or inch) with the accompanying dimensional values must be specified.
The type labels for the LMS4x21 are also affixed to this information label.
The type labels for the SIM2000 system controller and, if applicable, the SIM2000
dimensioning controller must be affixed to the corresponding fields of the metrology
information label.

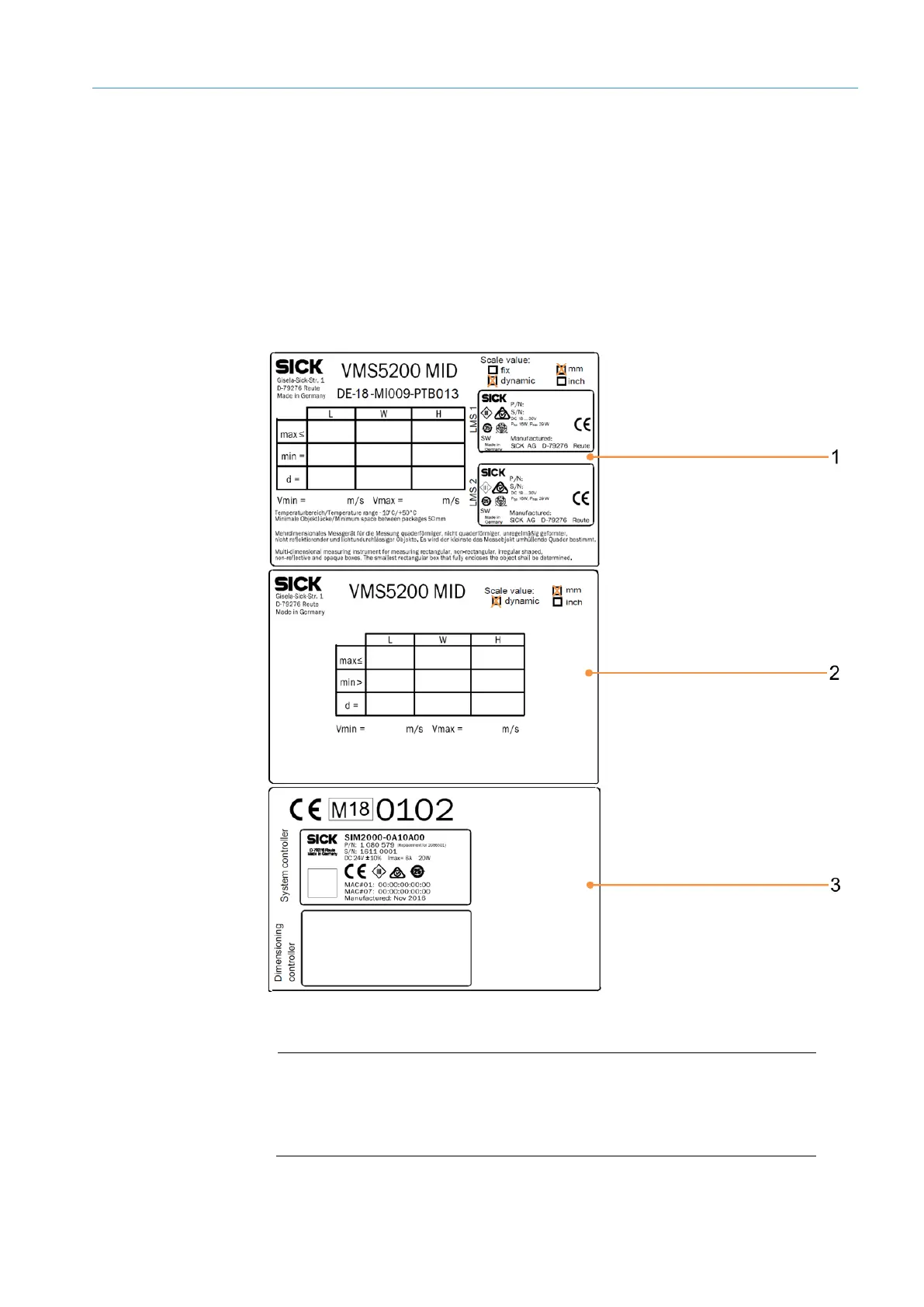

Fig. 27: Information labels for the VMS5200 (Multicontroller) for dynamic scale value switchover
with affixed type labels
Legend
1 System information label for scale interval value 1
2 System information label for scale interval value 2
3 Metrology information label with affixed type labels
Information labels with
dynamic scale value
switchover
