SICK WTB4F SingleLine - Dimensional Drawings

WTB4FT DoubleLine (WTB4FT-
xxxxxx1)
WTB4FA SingleLine (WTB4FA-
xxxxxx1)
Output current I
max.
≤ 100 mA ≤ 100 mA
Current consumption 25 mA 25 mA
Communication mode COM2 COM2
IO-Link 1.1 1.1
Switching frequency 500 Hz
3)
1000 Hz
3)
Max. response time 1000 µs
4)
500 µs
4)
Enclosure rating IP66, IP67 IP66, IP67
Protection class III III
Circuit protection A, B, D
5)
A, B, D
5)
Ambient temperature, operation –40 °C ... +60 °C -40 °C ... +60 °C
1)
Object with 90% remission (based on standard white DIN 5033)
2)
Limit values
Reverse polarity protected U
B
connections
Residual ripple max. 5 V
ss
3)
With light / dark ratio 1:1
4)
Signal transit time with resistive load
5)
A = U
B
-connections reverse polarity protected
B = inputs and output reverse-polarity protected
D = outputs overcurrent and short-circuit protected

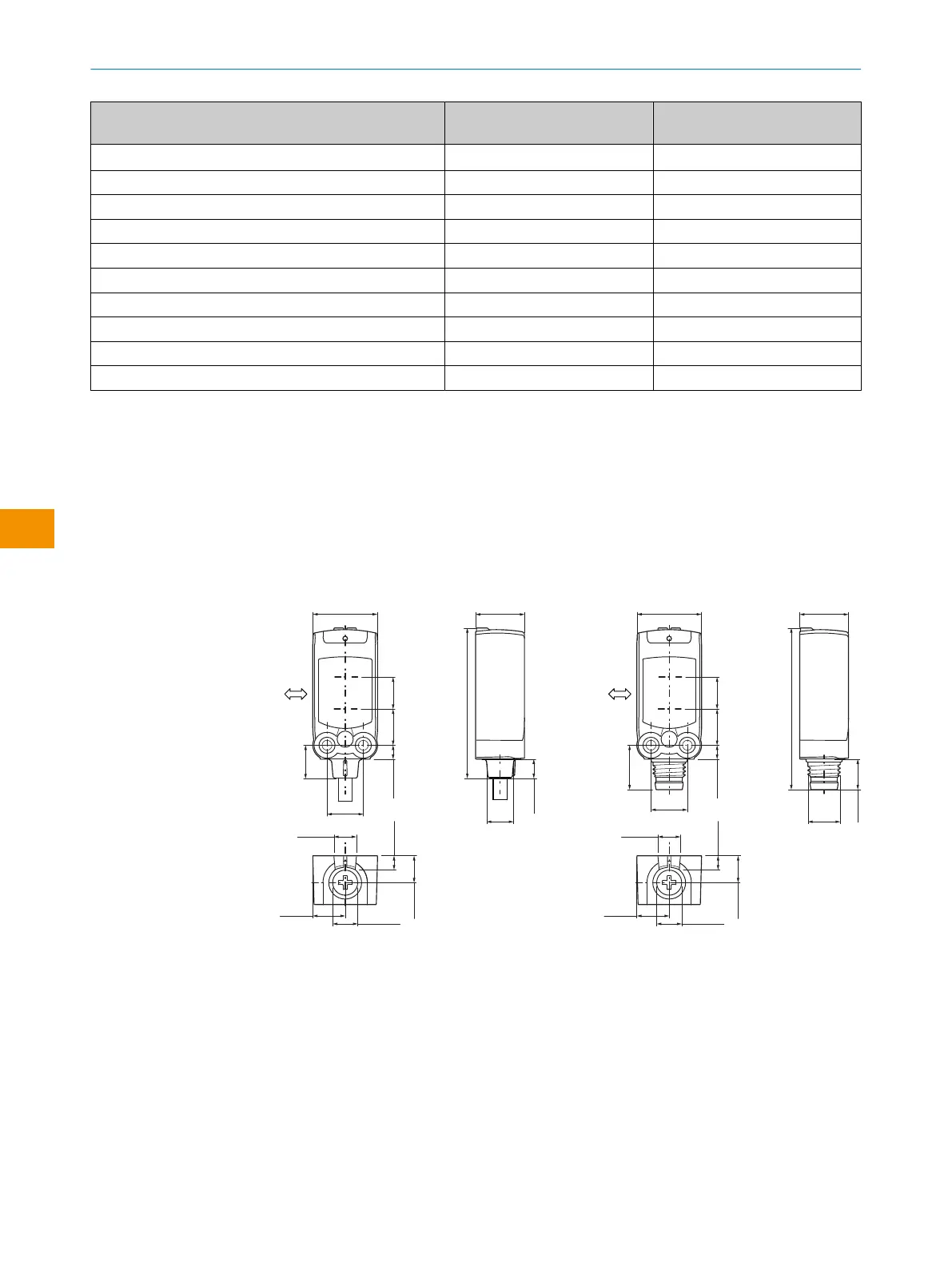

10.1 Dimensional drawings
8
67
4
5
3
1
2
16 (0.63) 12.1 (0.48)
9 (0.35)
Ø 6.8
(0.27)
5.6 (0.22)
Ø 6.2 (0.24)
8 (0.32)
8.1 (0.32)
3.5 (0.14)
37.2 (1.46)
4.7 (0.18)
3.4 (0.13)
6.7 (0.26)
9 (0.35) 8 (0.31)
Figure 28: Dimensional drawing 1, cable
1
Preferred direction of the target
object
2
Center of optical axis, sender
3
Center of optical axis, receiver
4
M3 threaded mounting hole
5
Connection
6
Green LED: Supply voltage active
7
Yellow LED: status of received light
beam
3
1
2
8
67
4
5
16 (0.63) 12.1 (0.48)
9 (0.35)
M8
(0.31)
5.6 (0.22)
Ø 6.2 (0.24)
8 (0.32)
11 (0.43)
3.5 (0.14) 9 (0.35) 8 (0.31)
40.1 (1.58)
7.6 (0.3)
3.4 (0.13)
6.7 (0.26)
Figure 29: Dimensional drawing 2, male
connector
