3UG4.1 line monitoring relay
6.2 3UG4511 line monitoring relay
3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
105

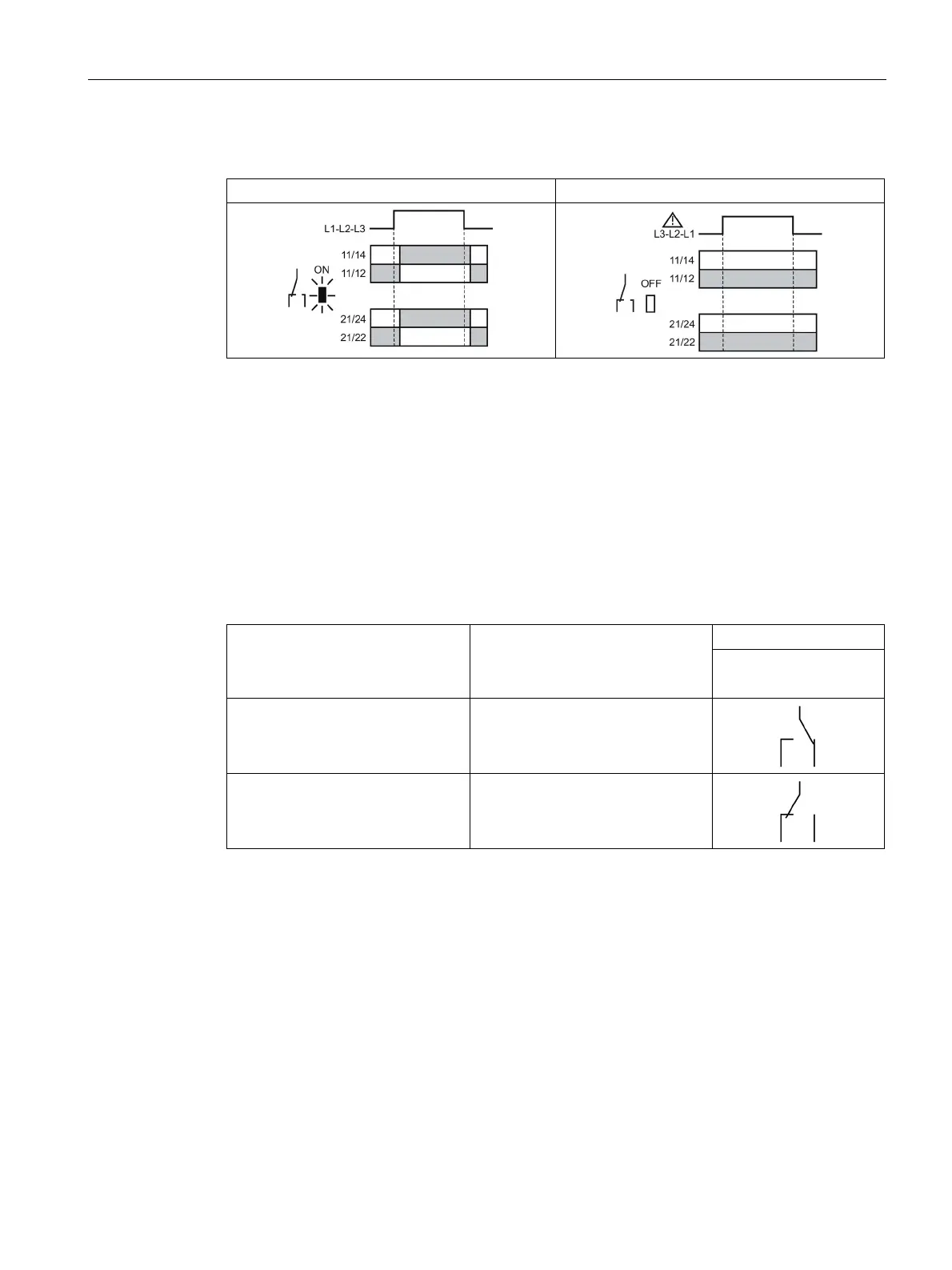

Function diagrams 3UG4511
Diagnostics with LED
Status display
The following information about the operating state is displayed on the 3UG4511 line
monitoring relay:
LED contact symbol (green)
State of the output relay
Correct phase sequence On
Incorrect phase sequence Off
You will find more information about the switching behavior of the output relays in Chapter
"Function (Page 104)."
