Siemens 3UG4 - Circuit Diagrams; Internal Circuit Diagrams

3UG458. insulation monitoring relay
9.4 3UG4582/3UG4583 insulation monitoring relays
3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
255
9.4.5
Circuit diagrams
9.4.5.1
Internal circuit diagrams

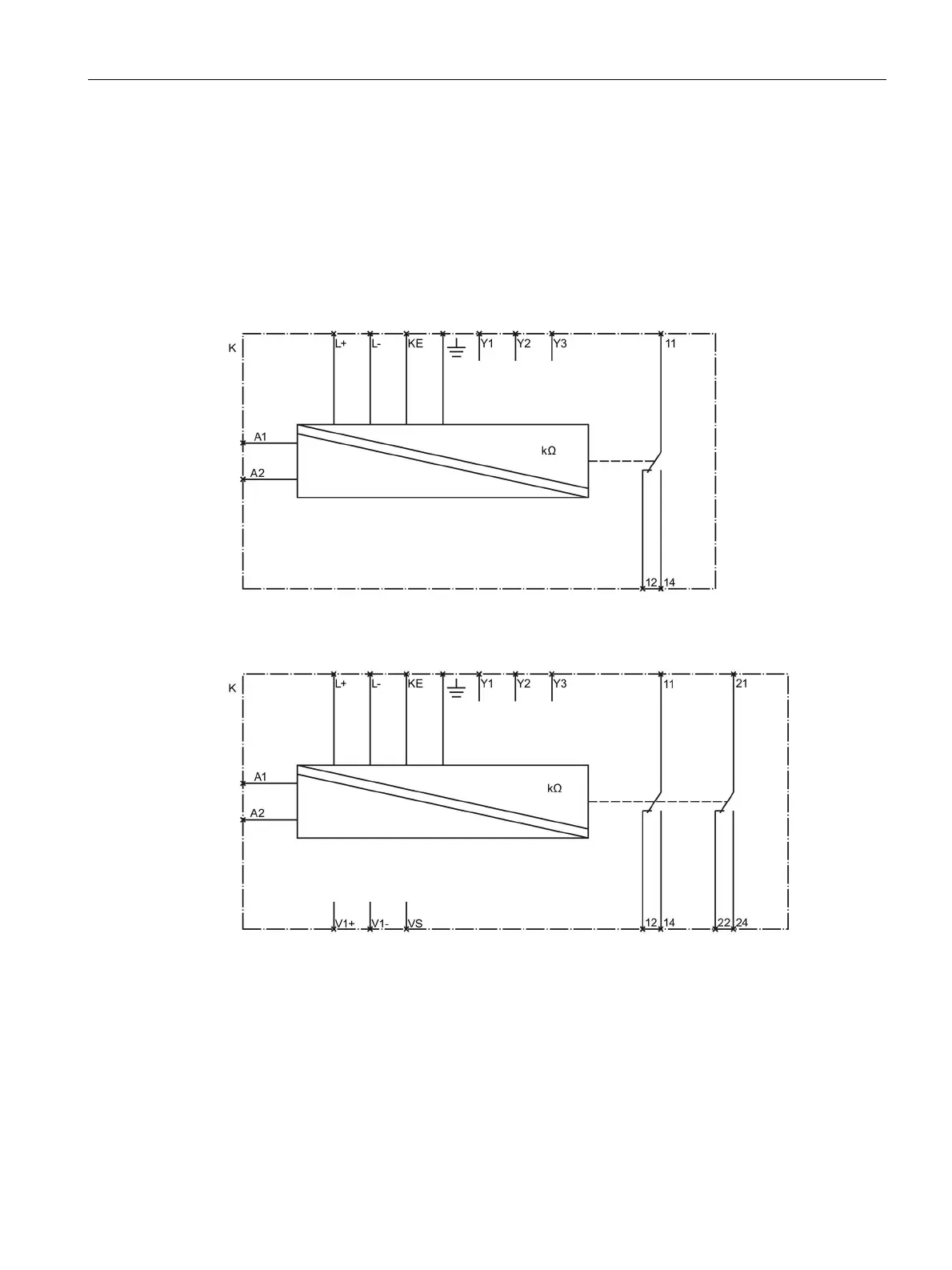

Internal circuit diagrams 3UG4582-1AW30 / 3UG4583-1CW30
3UG4582-1AW30 insulation monitoring relay
3UG4583-1CW30 insulation monitoring relay
