Characteristics
Characteristics of the 3UG4582 insulation monitoring relays
The characteristics below show the load limit curves of the 3UG4582 insulation monitoring
relays.

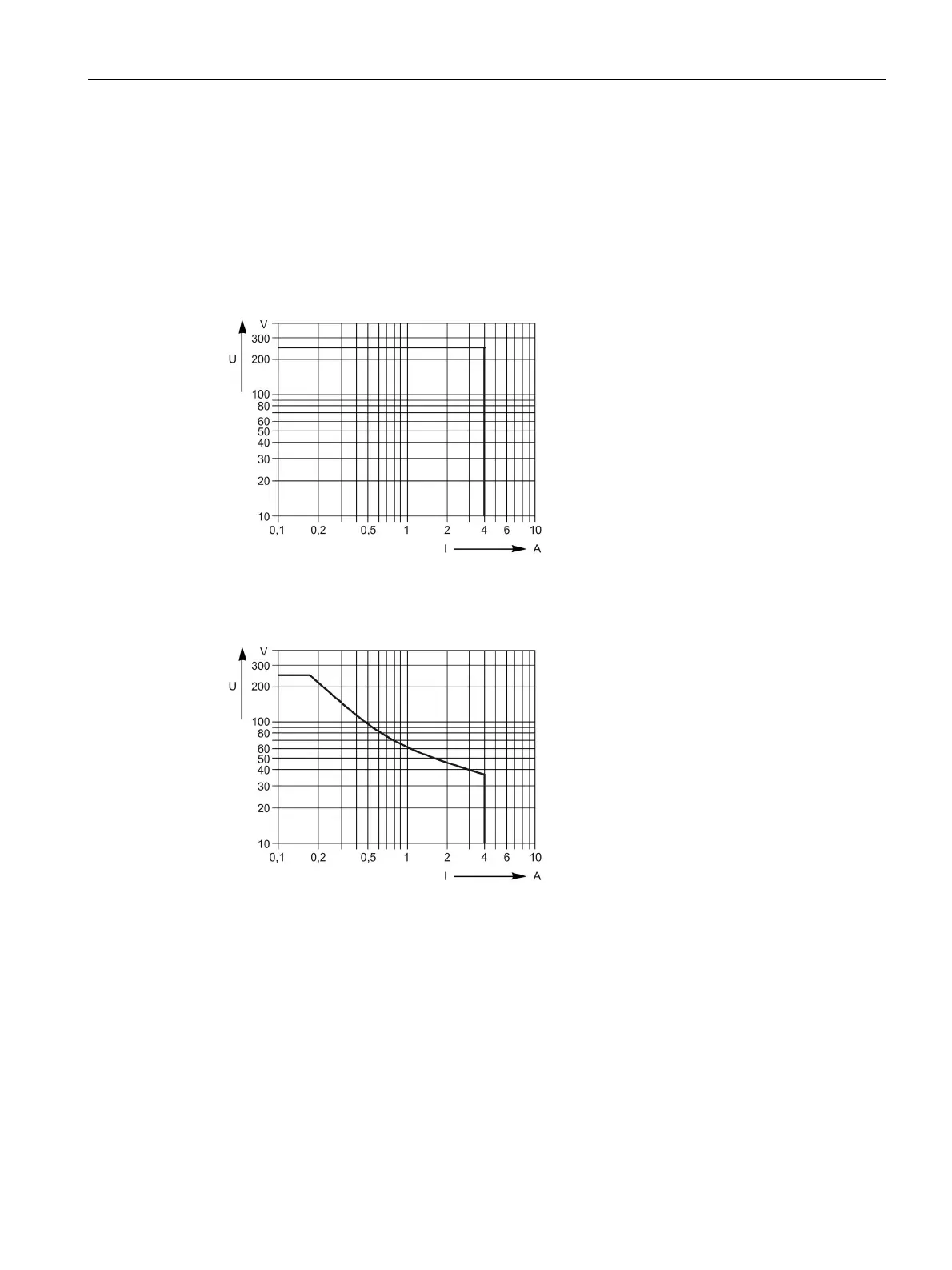

Image 9-12 AC load (resistive)
Image 9-13 DC load (resistive)
