C.2 Dimension drawings 3UG4 monitoring relays
3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
387
C.2.4
Dimension drawings 3UG458 insulation monitoring relay. (3UG4983 upstream
module)
3UG4581-1AW30/3UG4582-1AW30 monitoring relays

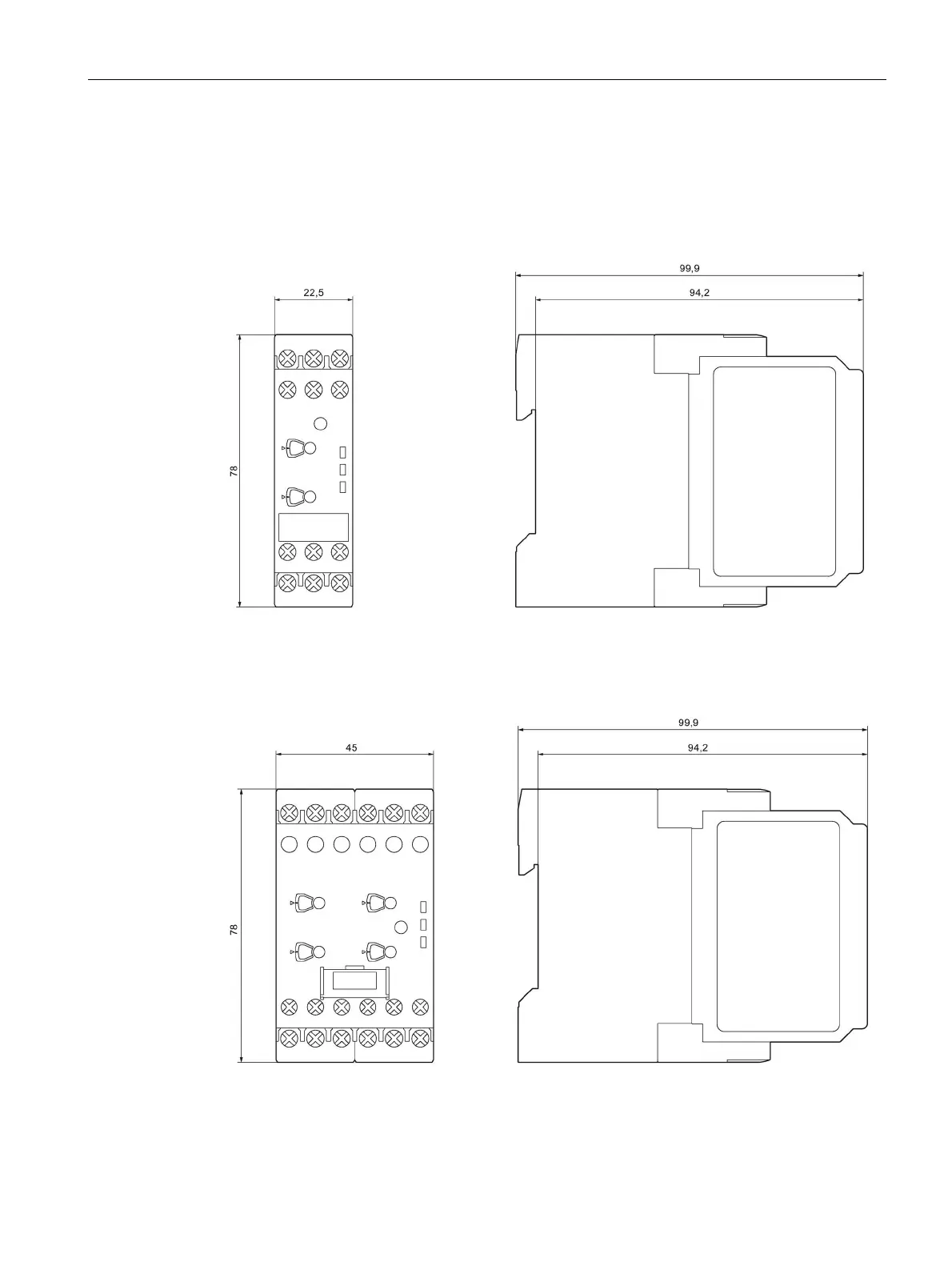

Image C-23 3UG4581-1AW30/3UG4582-1AW30 insulation monitoring relays
3UG4583-1CW30 monitoring relay
Image C-24 3UG4583-1CW30 insulation monitoring relay
