C.2 Dimension drawings 3UG4 monitoring relays
3UG4 / 3RR2 monitoring relays
384 Manual, 05/2016, NEB927043002000/RS-AC/004
C.2.2
Dimension drawings 3UG4 monitoring relays. (3 connecting terminals)

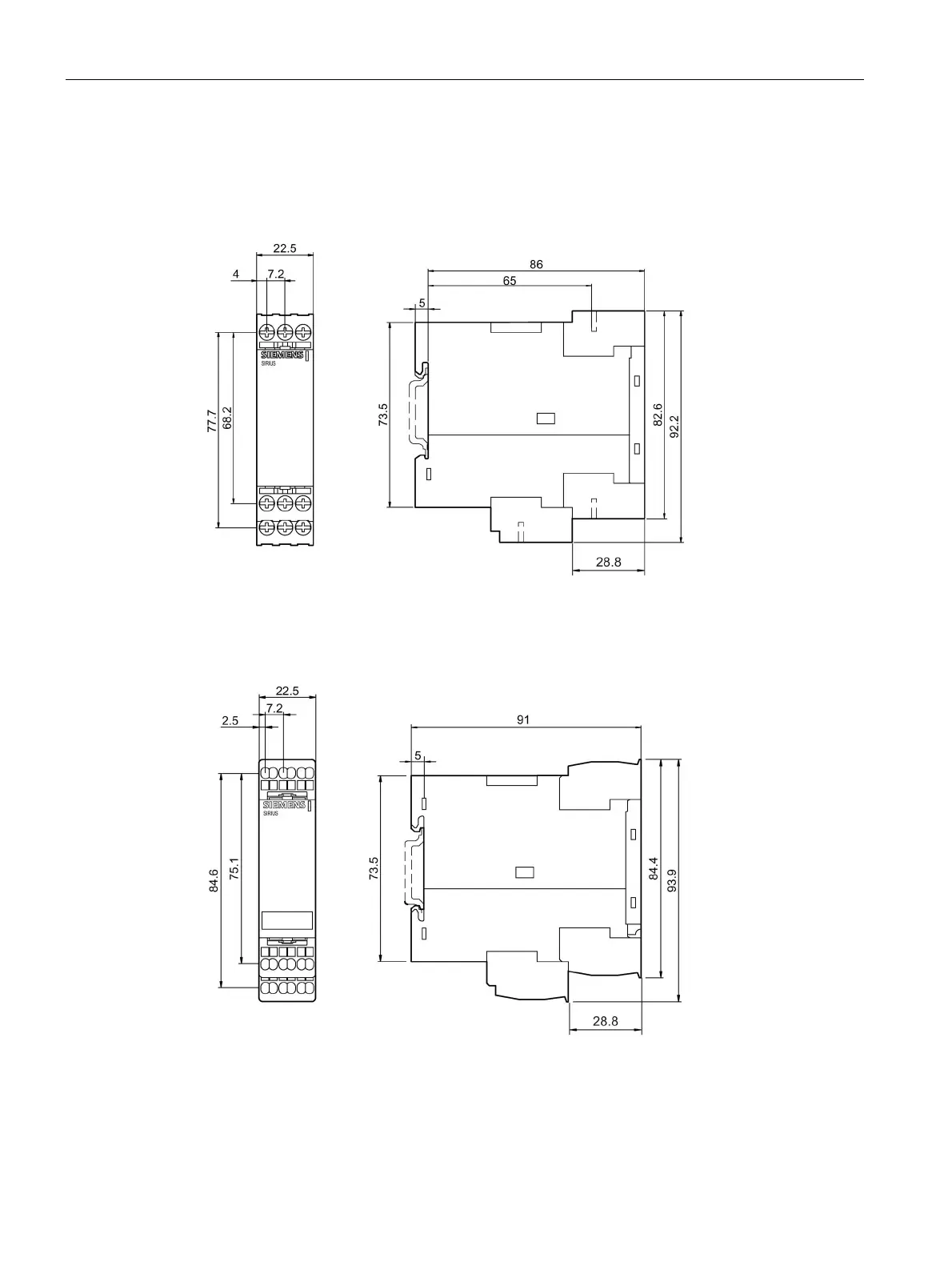

3UG4. monitoring relays with 3 connecting terminals (screw-type connection)
Image C-19 3UG4. monitoring relays with 3 connecting terminals with screw-type connections
3UG4. monitoring relays with 3 connecting terminals (spring-loaded connections)
Image C-20 3UG4. monitoring relays with 3 connecting terminals with spring-loaded connections
