3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
375
Dimension Drawings
C
C.1

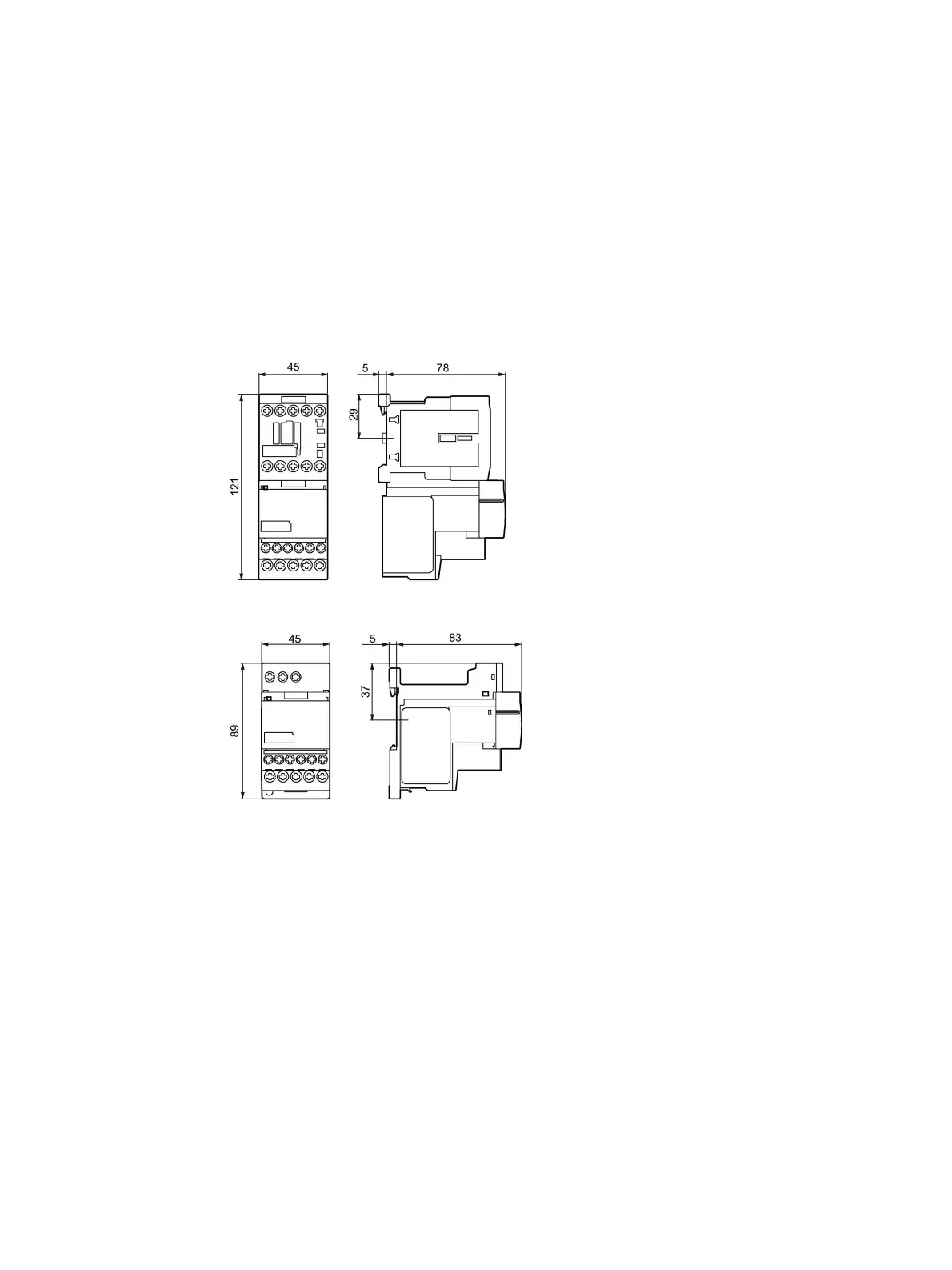

Dimension drawings 3RR2 monitoring relay
3RR2.41-1A.30 (screw connection, S00)
Image C-1 3RR2.41-1A.30 with contactor
Image C-2 33RR2.41-1A.30 with terminal support for stand-alone assembly
